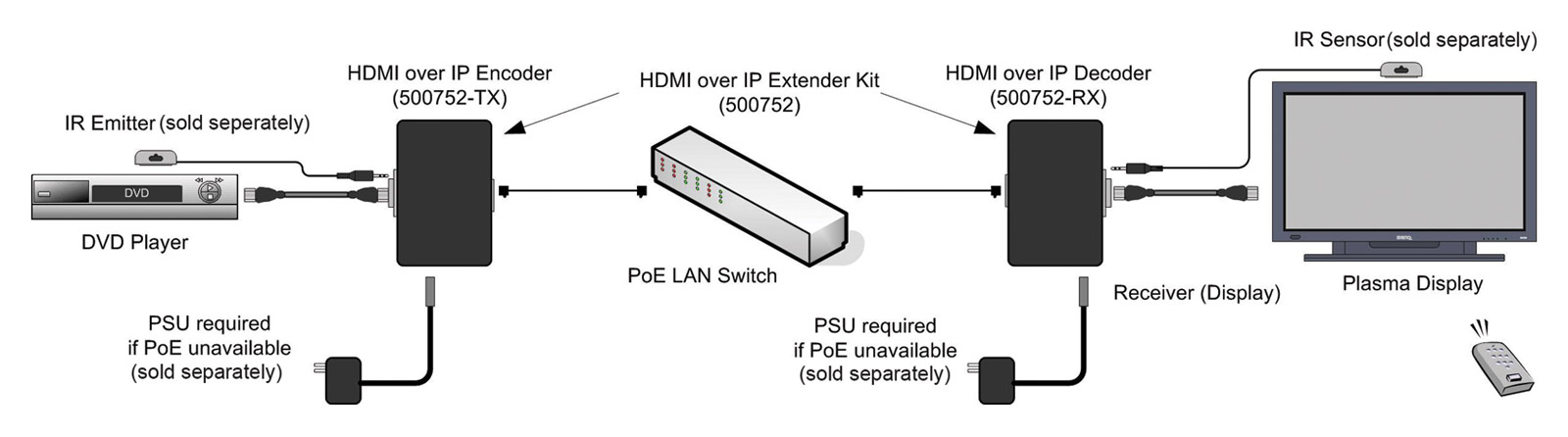

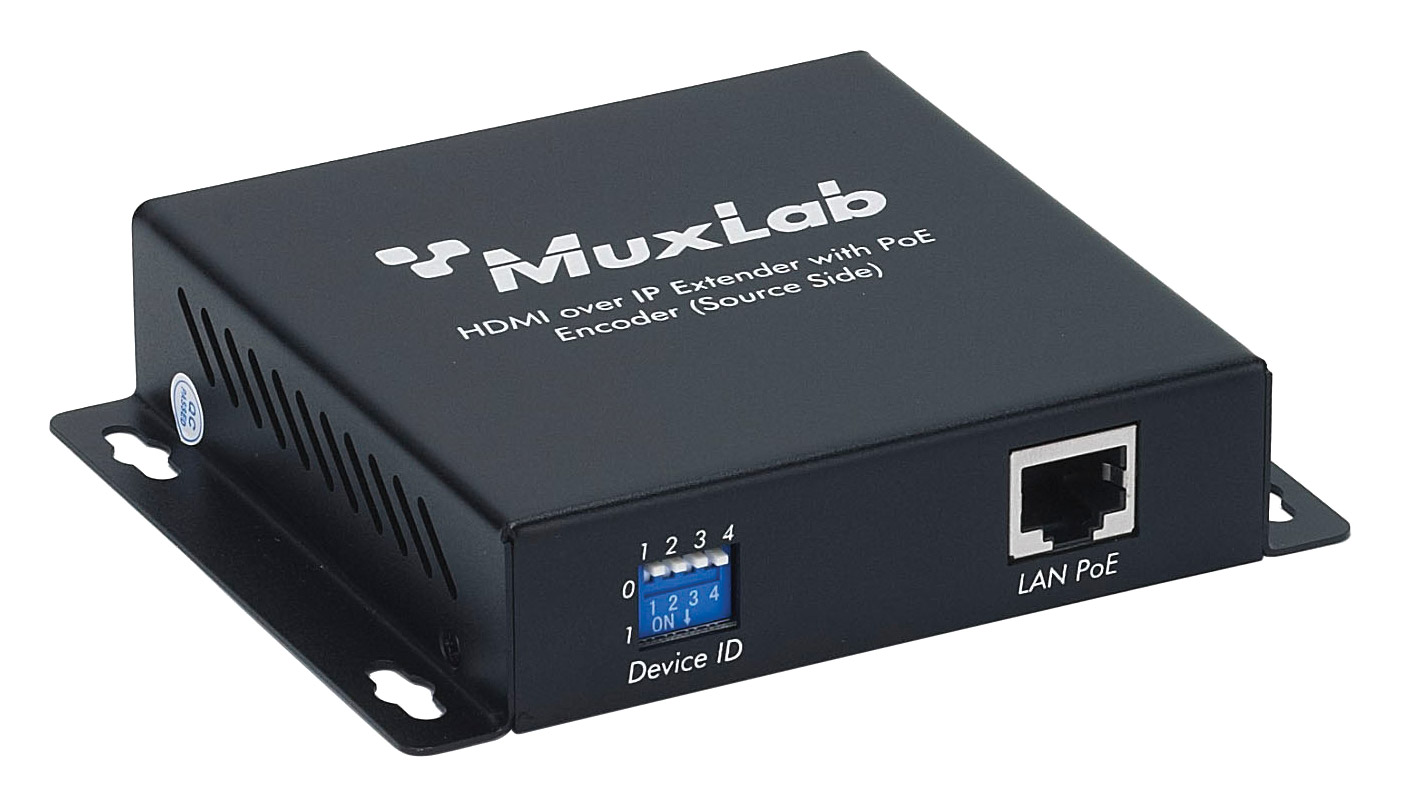

500752 - HDMI, 100m reach
A transmitter (500752-TX), and receiver (500752-RX) that allow HDMI equipment to be connected up to 100m at 1080p by way of single Cat5e/6 unshielded twisted pair cable. Normal operation is in a point-to-point configuration however point-to-multipoint and multipoint-to-multipoint is possible by connecting several transmitters and receivers to the same Ethernet network. Is is important for the Ethernet switch to have Gigabit ports, DHCP server capability, and IGMP communication protocol for these additional setups to function correctly.
The transmitter (500752-TX) and receiver (500752-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet Switch.
Dimensions: 205 x 150 x 55 (HxWxL)mm. Weight: 0.54kg.

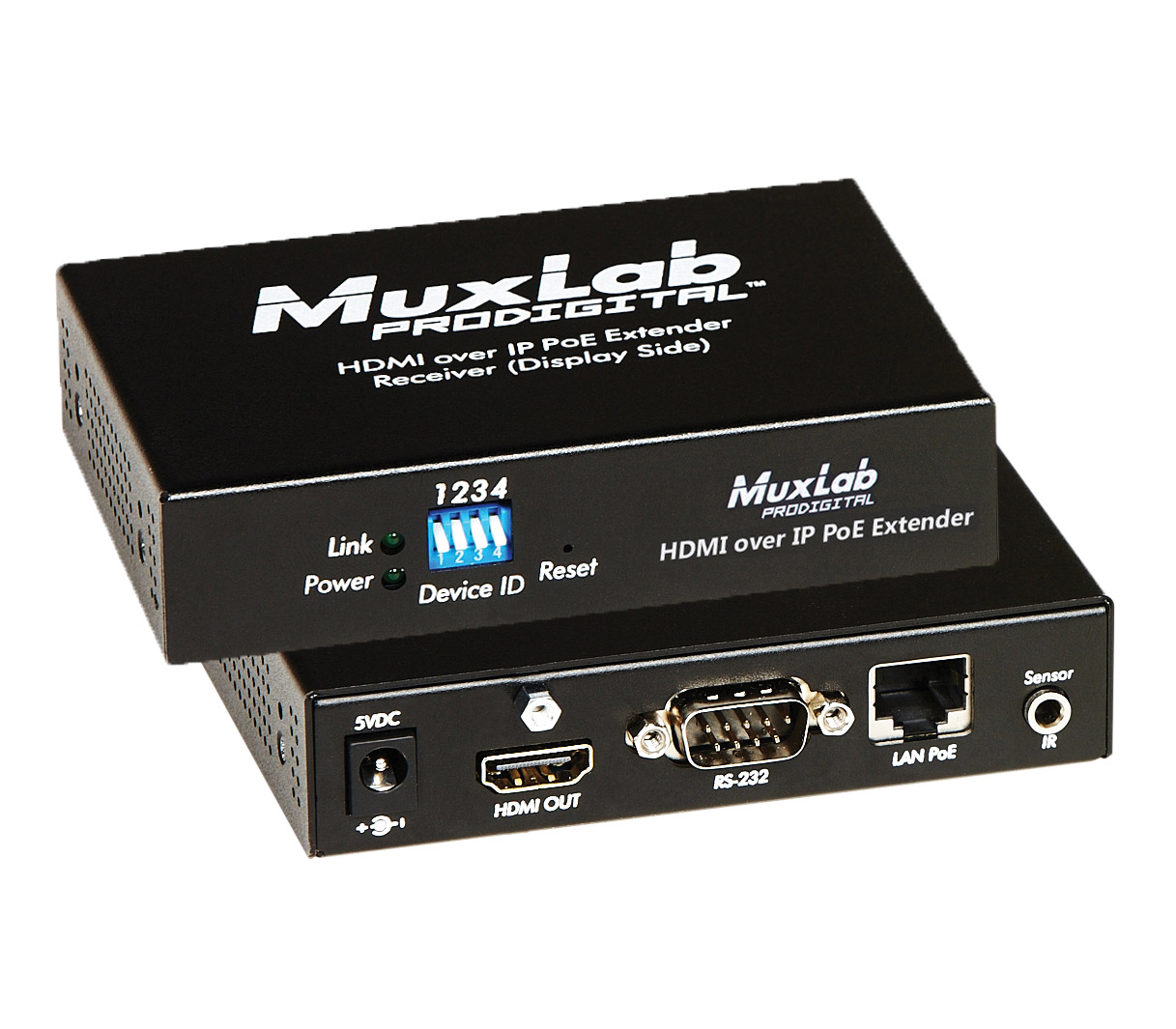

500754 - HDMI, 120m reach
A transmitter (500754-TX) and receiver (500754-RX) combination that allows the user to create a video wall from a HDMI source. Depending on available bandwidth multiple receivers, one per display, can be linked with a maximum distance of 100m over Cat5e/6 cable. This can be extended to 120m when a single transmitter and single receiver are used with a network switch.
Supporting PoE, these HDMI extenders have ‘virtually lossless video’ with a single frame of latency, along with 1080p resolution compatibility. RS232 and infrared remote control are usable, along with control via networked device, such as mobile or tablet when using in conjunction with 500811 ProDigital Network Controller.
Dimensions: 112 x 76 x 25 (WxDxH)mm. Weight: 0.5kg.

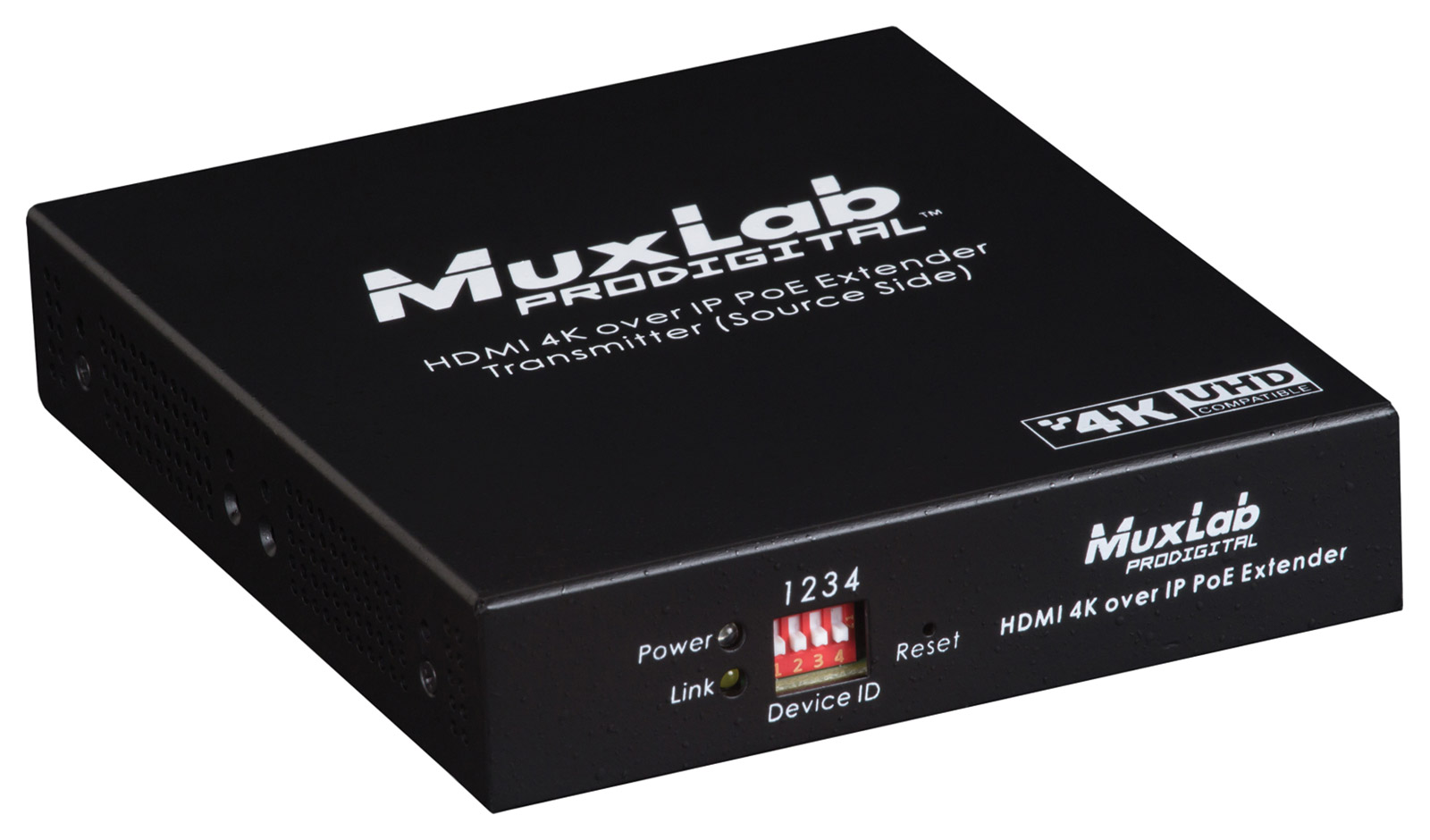

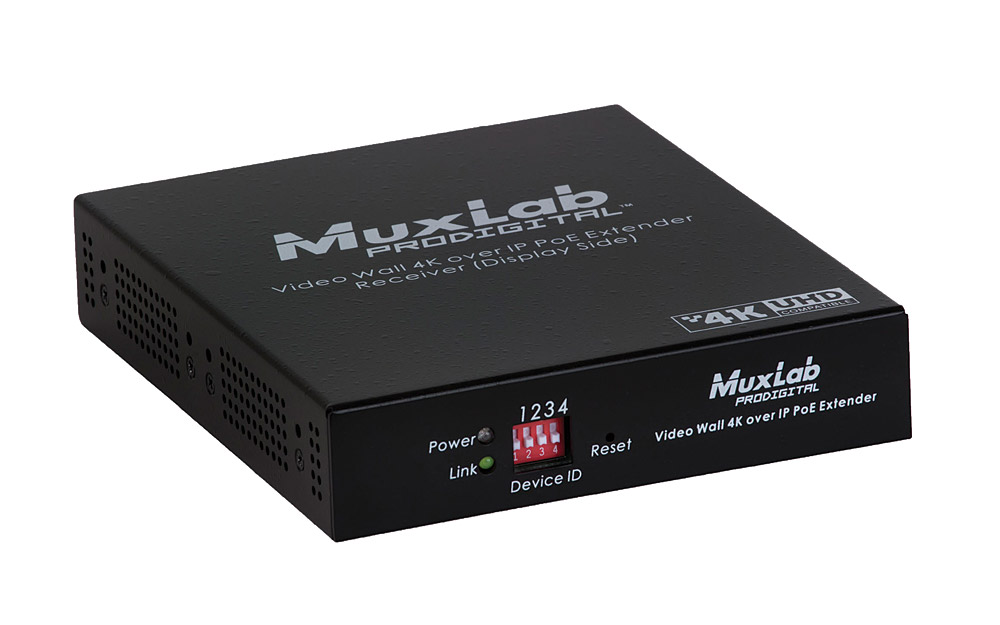

500759 - HDMI, 100m reach
These units have been designed to allow the extension of 4K, 30Hz or 1080p, 60Hz signal to create a video wall with only bandwidth hampering the number of receivers the user can implement.
On the rear panel, a 5V DC power supply input is positioned next to a HDMI output (input on transmitter), RS232 connection, 3.5mm female jack connector for 'Sensor IR' ('Emitter IR' on transmitter), 3.5mm female jack socket for audio out (audio in on transmitter) and RJ45 for LAN connection and POE power.
Dimensions: 112 x 129 x 25 (WxDxH) mm. Weight: 0.68kg.

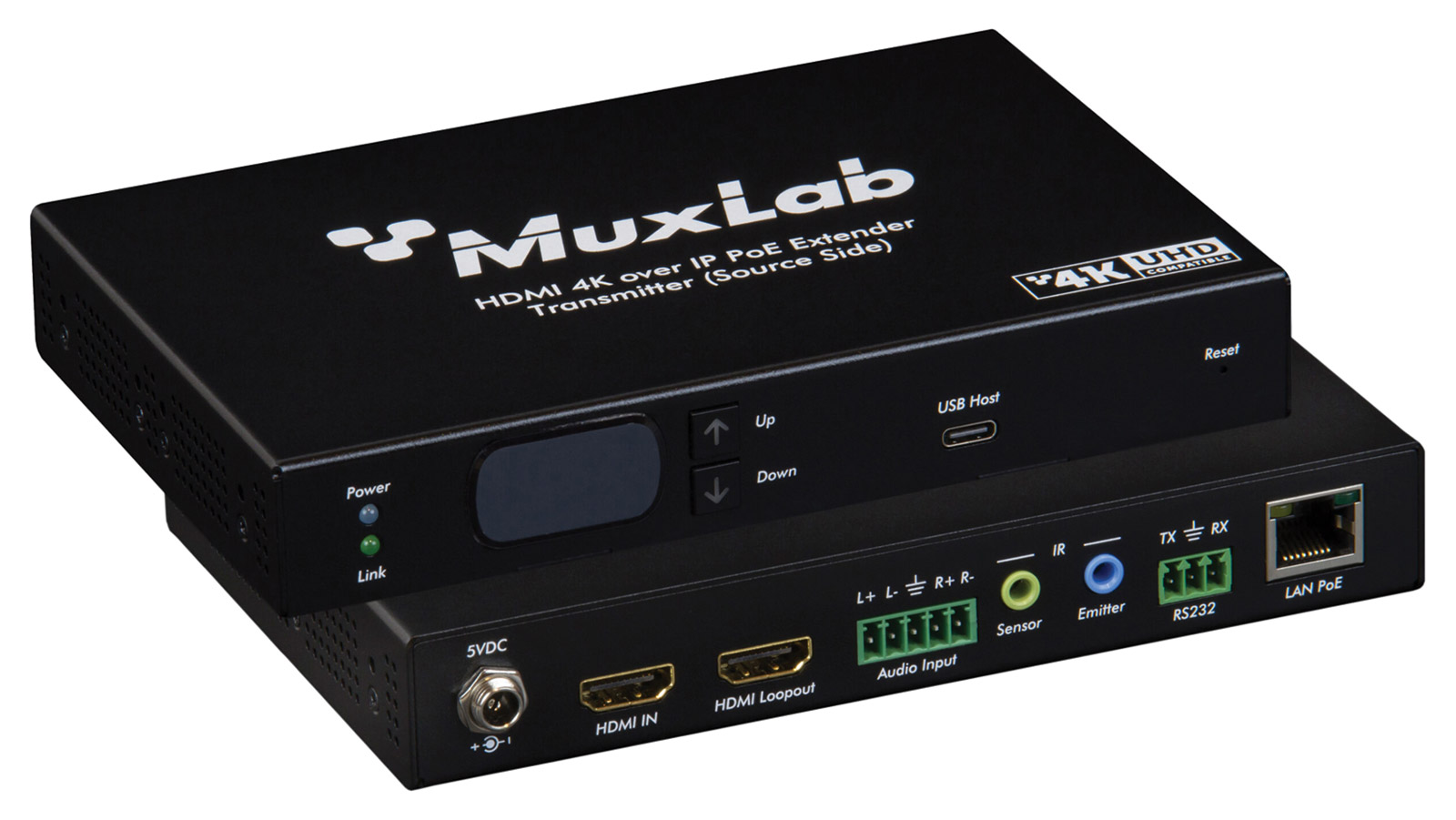

500759-TX-HLO - HDMI, 100m reach, loop out
The same in principle as the 500759-TX however also features a HDMI loop output to enable local display. Also supports up to 4K at 30Hz, and 1080p and 60Hz.
Dimensions: 112 x 129 x 25 (WxDxH) mm. Weight: 0.70kg

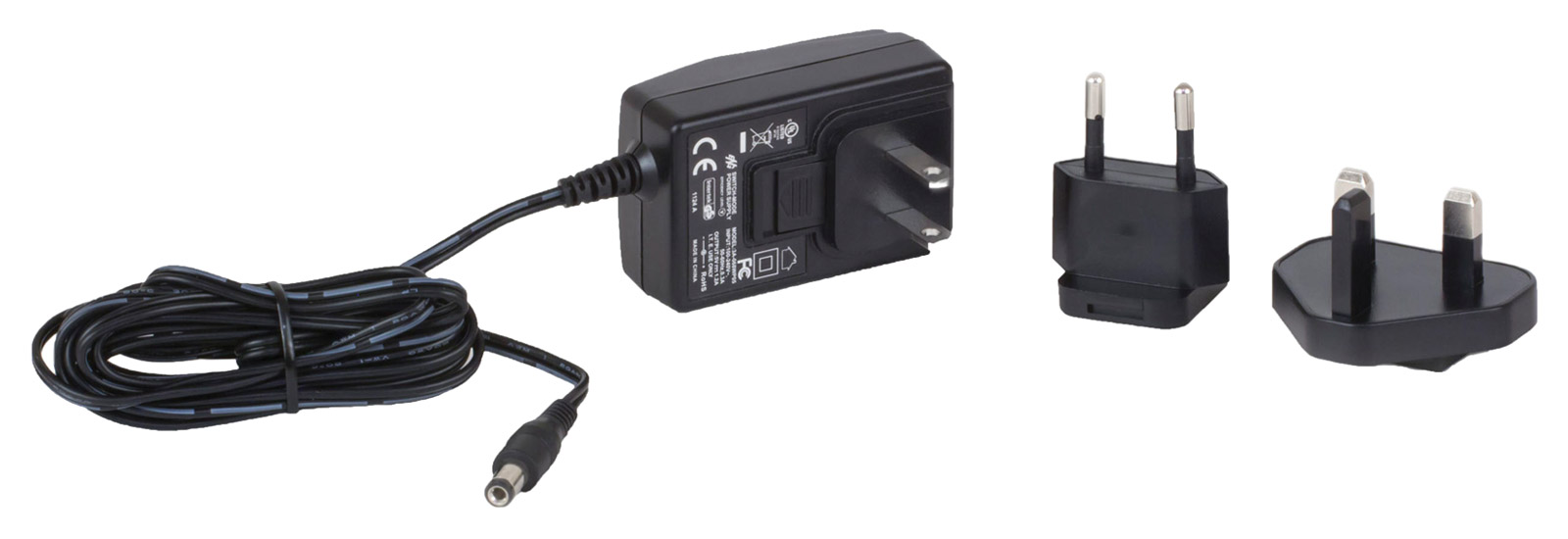

Optional power supply: 500993
The same in principle as the 500759-TX however also allows the connection of Dante audio equipment.
Dimensions: 112 x 144 x 25 (WxDxH) mm. Weight: 0.77kg.
Optional power supply: 500993
500762 - HDMI, 100m reach
These units transmit and receive 4K/60Hz video streams over IP H.254/H.265 to a distance of up to 100m. The transmitter (500762-TX) supports up to 1080p, 60Hz whilst the receiver (500762-RX-V2) up-scales the 1080p to 4K/60Hz, as well as supporting video wall and multi-view configurations. A benefit of the low bandwidth requirement of this equipment means audio and video data can be conveyed via local network, WiFi, and internet distribution. Multicast is supported along with RTSP, RTMP, HLS, FLV and TS.
Transmitter connectivity is the same as 500758-TX, and receiver connectivity is the same as 500758-RX with the addition of USB3.0 and S/PDIF and TosLink output located on the front panel.
Dimensions: 111 x 129 x 25 (WxDxH) mm. Weight: 0.4kg.
500763-TX - HDMI, 100m reach
Compatible with the 500762-RX, 500763-TX allows a HDMI source of up to 4K/30 resolution to be conveyed up to 100m via Cat5e/6 UTP cable.
Dimensions: 111 x 111 x 25 (WxDxH) mm. Weight: 0.4kg.
500764-TX - HDMI, 100m reach
Compatible with the 500762-RX, 500764-TX allows a HDMI source of up to 4K/60 resolution to be conveyed up to 100m via Cat5e/6 UTP cable.
Dimensions: 154 x 111 x 25 (WxDxH) mm. Weight: 0.5kg.
500774 - HDMI/ST2110, 400m reach
This transmitter (500774-TX-MM), and receiver (500774-RX-MM) have been designed to allow uncompressed HDMI video up to 4K/60, and SMPTE ST-2110 within a broadcast environment. Whilst having the ability to extend the signal up to 400m via multimode OM4 fibre, 500774 also gives the user the ability to insert audio and extract audio on the transmitter and receiver respectively.
500774 supports point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations, along with 2x 10G Ethernet ports for communications, and a single 1G Switch port for compatible network adapters. SMPTE ST-2110 can be manager through its web interface and an NMOS system via a RestAPI.
Dimensions: 111 x 175 x 25 (WxDxH) mm. Weight: 0.7kg.
Note: Although standard Ethernet technology can be used, and technically could be used in a network with other traffic, Muxlab do not recommend this for some of the above products, due to the throughput of traffic generated by the extenders.
