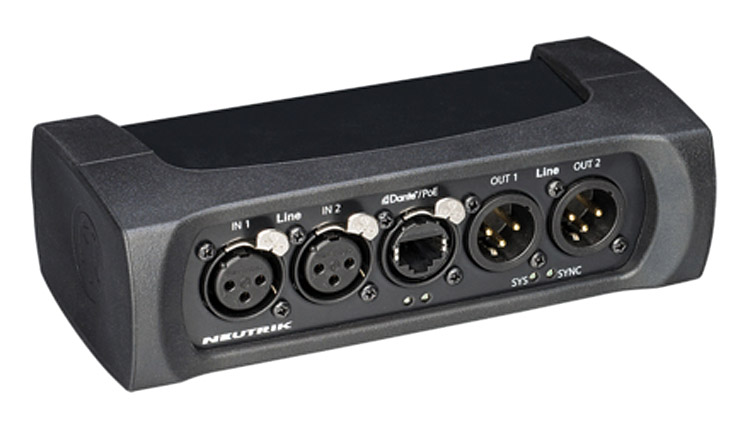

Neutrik NA2-IO-DLINE is an end-of-network breakout box which allows two XLR line-inputs to be integrated into a Dante network. Simultaneously, it can convert a Dante stream into two balanced XLR audio line-outputs.
Designed for harsh stage conditions, the NA2-IO-DLINE has a metal casing with lockable XLR and etherCON chassis connectors for both audio and network connections. A rubber sleeve offers added protection, but can be removed to allow mounting in equipment racks, floor boxes or under tables with optional rack panel or mounting brackets.
The unit requires an Ethernet switch that supports 48V PoE. If a switch without PoE is used, a PoE injector (class 1), compliant with 802.3af or 802.3at standards, must be placed in series.
General Specifications
| Channels: |
2 Input / 2 Output (Line level) |
| Supported sampling rates: |
44.1, 48, 88.2, 96kHz |
| Bit depth: |
16, 24, 32Bit |
| Latency: |
Based on user selection, 1ms default |
| Ethernet connection: |
100 BASE-TX (supporting PoE) |
| Power consumption: |
2W |
Analog audio input
| Input impedance: |
6.6kOhm |
| Input level (balanced): |
22dBu max. |
| Frequency response: |
20Hz to 20kHz (+/- 0.5dB) |
| Dynamic range: |
> 100dB |
| Signal to noise ratio: |
> 100dB |
| THD + noise: |
< 0.01% @ +4dBu, A-weighting |
| Crosstalk: |
< -80dB @ 20kHz |
Analog audio output
| Output impedance: |
< 800Ohm |
| Output level (balanced): |
16dBu max. |
| Frequency response: |
20Hz to 20kHz (+/- 0.5dB) |
| Dynamic range: |
> 100dB |
| Signal to Noise Ratio: |
> 100dB |
| THD + noise: |
< 0.01% @ +4dBu, A-weighting |
| Crosstalk: |
< -80dB @ 20kHz |
Discontinued

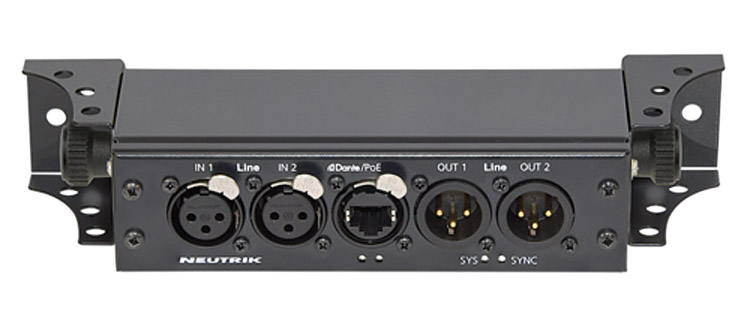

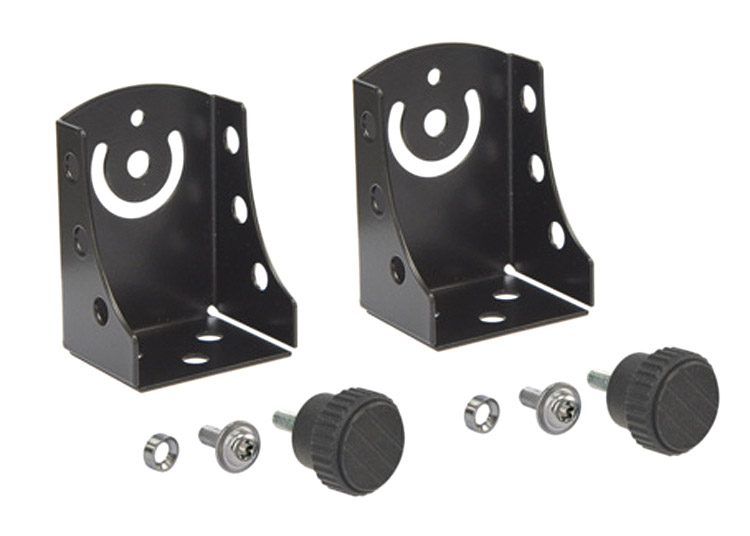

This bracket set is used to mount the NA2-IO-DLINE interface inside a floor box or below tables. A stepless angle from -90 to +90 degrees can be set. Fixing included.

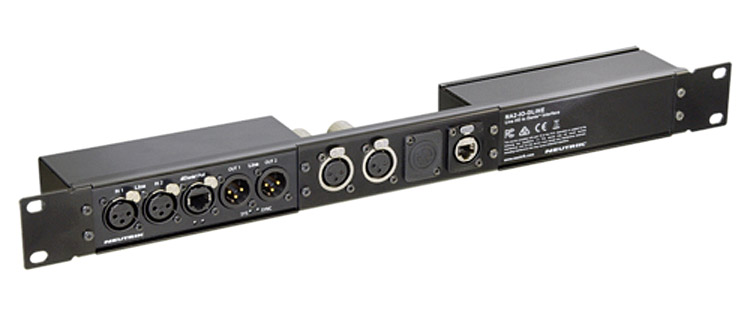

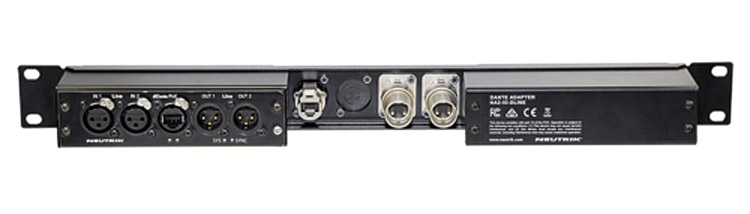

This 1U panel facilitates the mounting of up to two NA2-IO-DLINE Dante interfaces within a rack. Four additional D-series cut-outs are provided, for the assembly of audio or network feedthroughs. The NA2-IO-DLINE can be mounted from the front or rear face. A blank plate is provided to cover one cut-out if only one NA2-IO-DLINE is used.
