SHURE A15HP FILTER High-pass, -12db per octave(100Hz)

Stock code
20-093
Brand
Shure
Model number
  • A15HP
SHURE A15HP FILTER High-pass, -12db per octave(100Hz)
SHURE A15HP FILTER High-pass, -12db per octave(100Hz)

Order

VAT / Delivery
$80.64
each (ex. VAT)
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
RoHS Compliant

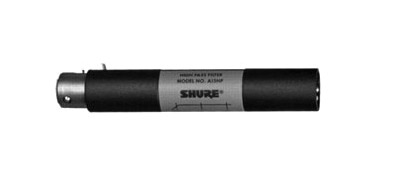

A15HP In-Line High Pass Filter

The Shure A15HP filter rolls off low audio frequencies to reduce 60 Hz electrical hum, low-frequency wind noise, air conditioner noise, or stand- and floor-transmitted low-frequency vibrations.

Features

  • When loaded with a low-impedance microphone input (800 ohms or more), the rolloff is 12 decibels per octave below 100 Hz. When loaded with 150 ohms, the rolloff is 3 decibels at 100 Hz. The output is flat above the rolloff point (with a maximum loss of 0.5 decibels at 1 kHz).

Specifications

Frequency Response
  Flat above rolloff point; -0.5 dB maximum at 1 kHz

Impedance
  Designed for 150 ohm rated microphones and inputs

Distortion
  2.5% maximum (100 mV input, open circuit output)

Connectors
  Input: 3-socket XLR connector
  Output: 3-pin XLR connector

Case
  Full magnetic shield, steel with gray enamel finish

Dimensions
  19 mm (3/4 in.) diameter; 114 mm (4 1/2 in.) long

User Guides

SHURE PROBLEM SOLVERS

Filters, attenuators, transformers, switches and impedance adapters to solve interface problems in installlations and in the field.
