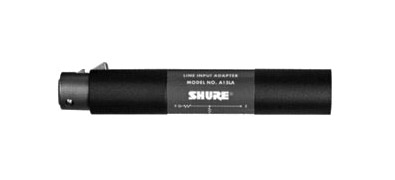

SHURE A15LA ATTENUATOR Line to Mic Adaptor, -50db

Stock code
20-094
Brand
Shure
Model number
  • A15LA
SHURE A15LA ATTENUATOR Line to Mic Adaptor, -50db
SHURE A15LA ATTENUATOR Line to Mic Adaptor, -50db

Order

VAT / Delivery
$82.53
each (ex. VAT)
Ordered on demand, available in 1‑2 working days. Need it sooner? Call us
RoHS Compliant

A15LA 50dB Attenuator

The Shure A15LA has a balanced bridging input with 50 dB attenuation. Use the A15LA to connect high-level line or Aux Outputs to low-impedance microphone inputs. It will attenuate the output from such devices as mixers, tape recorders, tuners, or phono preamps to make them compatible with balanced low-impedance units. The A15LA can be directly connected to either balanced or unbalanced sources. If the source is unbalanced, connect it to pin 2 ("hot") and pin 1 on the A15LA input; no connection is required to pin 3.

Specifications

Frequency Response
20 to 20,000 Hz +- 0.5 dB
Impedance
Input: 100k ohms
Output: 300 ohms
Attenuation
50 dB
Maximum Input Signal Level
40 dBV
Connectors
Input: 3-socket female XLR
Ouput: 3-pin male XLR
Case
Full magnetic shield, steel with gray enamel finish
Dimensions
19 mm (3/4 in.) diameter; 114 mm (4 1/2 in.) long
Weight
80 g (2.8 oz.)

User Guides

SHURE PROBLEM SOLVERS

Filters, attenuators, transformers, switches and impedance adapters to solve interface problems in installlations and in the field.
