Littlite RL Series can provide localised illumination for a fully-installed equipment rack or allow the user to adjust illumination for patching and general maintenance. The lights are available in two formats; one is a recessed panel, fitted with a dimmer and one or two goosenecks, each with a halogen bulb. Versions with energy efficient LED arrays are also available, see LITTLITE GOOSENECK LAMPS - LED - Rack mounting.
RL-10

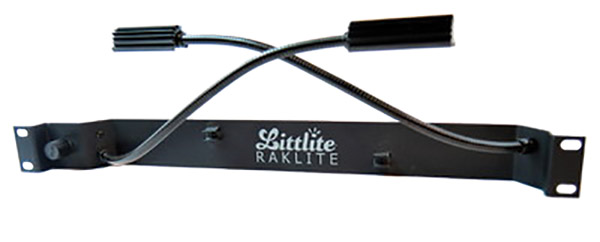

These are 19-inch rack-mounting, 1U panels, bent to form a recess, allowing the goosenecks to lie flat along the panel for storage, facilitating use on racks with doors or in flight cases with lids. A choice of one or two permanent-mounted 305mm (12-inch) goosenecks is available, each with a light source of high-intensity halogen bulb with full-range dimmer.
Discontinued
These are flat, reinforced, 19-inch rack- mounting, 1U panels, fitted with a full-range dimmer and two 3-pin XLR panel sockets, to allow the connection of one or two X-series gooseneck lamps, purchased separately. See Bare gooseneck lights.
Lamp details
Halogen lamp: 5W nominal; 380mA at 12V. Light output: 237 Lux, at 305mm. Colour temperature: 3000K.
Ordering note:
Lamp sets with a suffix of 'A' are without power supply and require a Littlite LPS2-4-UK power supply, 51-838, for UK operation; or Littlite EXF-10G power supply, 51-6875, for EU operation. Lamp sets with a suffix of 'E' include EU power supply, and models without suffix include US power supply.
See Littlite Gooseneck Lamps - Power supplies, adapter leads for spare power supplies and power adapter leads. All power supplies are terminated via a 1.8m (6 foot) lead with 2.1mm DC coaxial plug.
Lamp sets with an Energy Star qualified switch-mode 12V power supply with US connector are also available to special order. Please contact UK sales on 0191 418 1122.
