MANFROTTO MS0490C CARBON NANOPOLE STAND Removable column, supports 1.5kg, 61-197cm height, black

Stock code
53-8012
Brand
Manfrotto
Model number
  • MS0490C
  • CARBON NANOPOLE
Colour
  • BlackBlack
MANFROTTO MS0490C CARBON NANOPOLE STAND Removable column, supports 1.5kg, 61-197cm height, black
MANFROTTO MS0490C CARBON NANOPOLE STAND Removable column, supports 1.5kg, 61-197cm height, blackMANFROTTO MS0490C CARBON NANOPOLE STAND Removable column, supports 1.5kg, 61-197cm height, blackMANFROTTO MS0490C CARBON NANOPOLE STAND Removable column, supports 1.5kg, 61-197cm height, blackMANFROTTO MS0490C CARBON NANOPOLE STAND Removable column, supports 1.5kg, 61-197cm height, blackMANFROTTO MS0490C CARBON NANOPOLE STAND Removable column, supports 1.5kg, 61-197cm height, blackMANFROTTO MS0490C CARBON NANOPOLE STAND Removable column, supports 1.5kg, 61-197cm height, black

Order

VAT / Delivery
$209.47
each (ex. VAT)
Ordered on demand, available in 2‑3 weeks. Need it sooner? Call us
RoHS Exempt

MANFROTTO EQUIPMENT STANDS

This selection of Manfrotto tripod stands includes both heavy-duty designs for use with heavy loads such as long booms and a range of lightweight aluminium models offering maximum heights from 1010mm to 3660 mm, offering fittings to suit both microphone mounting accessories and lighting components.

Straight Stands

5001B-1 Nano Tripod Stand - 1900mm height, 1.5kg payload

The 5001B Nano Photo Stand is a compact and lightweight stand designed for portability. Manufactured from aluminium and able to support a payload of 1.5kg, this tripod stand has five sections that expand to a height of 190cm and contract to a minimum of 49cm for easy storage.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp), 5/8 inch (16mm) lighting stud. Maximum height: 190cm. Closed length: 48cm. Colour: Black. Maximum footprint diameter: 100cm. Column diameters: 13, 16, 19, 22, 25mm. Weight: 960g.

5002BL Nano Plus Tripod Stand – 1970mm height, 4kg payload

5002BL is a heavier duty version of 5001B-1 with a maximum payload of 4kg. The stand is manufactured from aluminium with five sections and a single levelling leg.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp). Maximum height: 197cm. Closed length: 52cm. Colour: Black. Maximum footprint diameter: 105cm. Column diameters: 29, 26, 23, 20, 16mm. Weight: 1.35kg.

MS0490A-1 Nanopole stand – 1950mm height, 1.5kg payload

This aluminium manufactured tripod stand’s main feature is a detachable centre column for use a boom pole for distant mic technique or of camera flash/accessories.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp) 5/8 inch (16mm) lighting stud. Maximum height: 195cm. Closed length: 49cm. Colour: Black. Maximum footprint diameter: 100cm. Weight: 1.07kg.

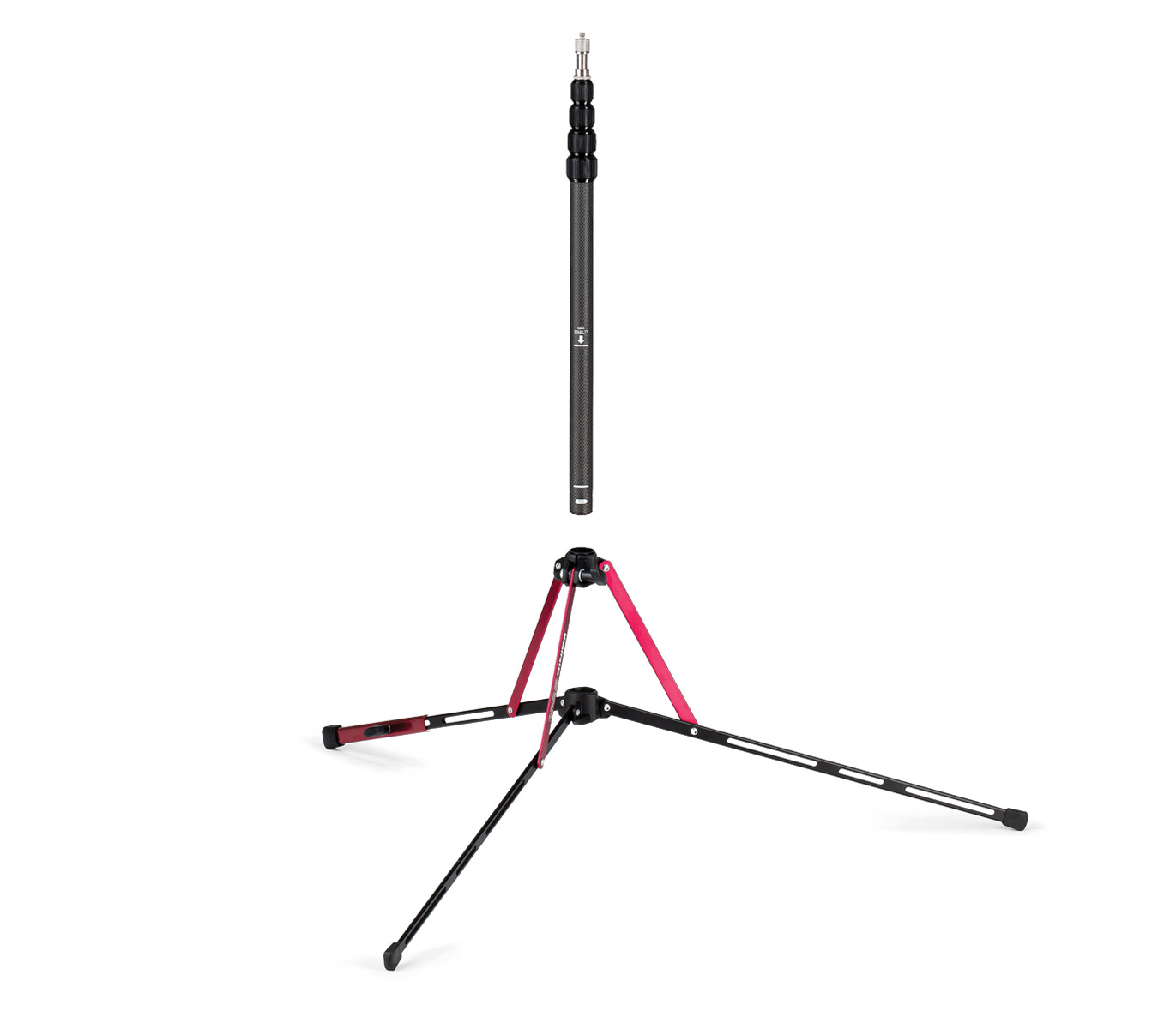

MS0490C Carbon Nanopole stand – 1970mm height, 1.5kg payload

This stand has many of the features of MS0490A-1, however it is manufactured from a mix of aluminium (base) and carbon fibre (centre pole) giving it a total weight of only 0.78kg. The removable telescopic pole can be utilised as a lightweight boom pole for distance mic technique.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp) 5/8 inch (16mm) lighting stud. Maximum height: 197cm. Closed length: 51cm. Colour: Black/red. Maximum footprint diameter: 100cm. Weight: 0.78kg.

1004BAC Master Stand - 3660mm height, 9kg payload

This air-cushioned, lightweight, aluminium, tripod stand has four sections to give an impressive maximum height of 366cm.The column tube diameters are 20, 25, 30 and 35mm that can be connected according the user's needs.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp), 5/8 inch (16mm) lighting stud. Maximum height: 366cm. Minimum height: 124cm. Closed length: 107cm. Maximum footprint diameter: 106cm. Maximum payload: 9kg. Colour: Black. Weight: 2570g.

1005BAC Ranker Stand - 2730mm height, 10kg payload

1005BAC is an aluminium three-sectioned tripod stand that offers air-cushioning. The maximum footprint diameter of 106cm helps retain stability when set to higher settings.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp), 5/8 inch (16mm) lighting stud. Maximum height: 273cm. Minimum height: 118cm. Closed length: 100cm. Maximum footprint diameter: 106cm. Column tube diameter: 25, 30, 35mm. Maximum payload: 10kg. Colour: black. Weight: 2.5kg.

1051BAC Compact Tripod Stand - 2110mm height, 4kg payload

This Compact Photo Stand Mini is a lightweight four-sectioned tripod stand that can support a payload of up to 4kg.1051BAC has a maximum height of 211cm and a minimum height of 75cm. Air-cushioning helps avoid nipping fingers and hands while lowering heavier items.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp), 5/8 inch (16mm) lighting stud. Maximum height: 211cm. Minimum height: 75cm. Closed length: 67cm. Maximum footprint diameter: 70cm. Column tube diameter: 16, 19, 22, 25mm. Weight: 1800g.

1052BAC Compact Tripod Stand - 1010mm height, 5kg payload

Much like the 1051BAC the 1052BAC compact tripod stand offers air-cushioning to aid the lowering of the stand under weight.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp), 5/8 inch (16mm) lighting stud. Maximum height: 237cm. Minimum height: 101cm. Closed length: 86cm. Maximum footprint diameter: 109m. Leg sections: 3. Maximum payload: 5kg. Colour: Black. Weight: 1510g.

008CSU Tripod stand - Heavy duty steel, 2 sections

The Steel Junior Stand is a heavy duty chrome-plated steel tripod stand. It offers two sections with one riser and a universal head type 14 with 28mm socket. Three double braced legs offer substantial stability, with one of the legs adjustable for levelling on uneven surfaces. Can be used with optional 109 wheel set.

Maximum height: 216cm. Minimum height: 132cm. Closed length: 116mm. Column diameter: 30mm, upper; 35mm, lower. Leg diameter: 22mm. Maximum footprint diameter: 118cm. Material: Chrome steel. Maximum payload: 18kg. Weight: 6.5kg.

Wind-up Stands

087NW

Manfrotto 087NW is a heavy-duty, steel wind up stand capable of payloads up to 30kg. The steel stand has 3 sections (55/45/38mm) with 2 risers enabling the user to raise and lower the stand up to 3.7m 'without any fiddling'. Universal mounts are provided for compatibility, including a 16mm female socket and a 16mm male stud. Manfrotto designed 087NW primarily for photography lighting equipment such as LED lights, background supports and other large studio equipment. A levelling leg keeps everything stable on rougher ground, and optional 104, 104G or 374-10 wheel kits are available if you need to movability across the floor.

Available in chrome or black chrome finish.

Maximum height: 370cm. Minimum height: 167cm. Closed length: 181cm. Maximum footprint diameter: 128cm. Material: Steel. Maximum payload: 30kg. Weight: 21.4kg.

087NWLB - Low base

087NWLB has the functionality of 087NW, however in place of the standard tripod type base, 087NWLB has a low base with geared center-post. The stand has 3 sections, 2 risers, and a single levelling leg. 087NWLB is fitted with braked wheels.

Maximum height: 276cm. Minimum height: 144cm. Closed length: 134cm. Maximum footprint diameter: 100cm. Material: Steel. Maximum payload: 30kg. Weight: 16kg.

087NWSH - Short

Available in chrome or black chrome finish, 087NWSH is a shorter version of 087NW. The heavy duty steel wind-up stand has three sections and two risers, along with a single levelling leg for additional stability on uneven terrain. Optional 104G wheel kit allows for easier positioning.

Maximum height: 276cm. Minimum height: 155cm. Closed length: 155cm. Maximum footprint diameter: 128cm. Material: Steel. Maximum payload: 50kg. Weight: 15.5kg.

Boom Stands

A2030DKIT C-stand – 40-inch

This Avenger boom stand is manufactured with a ‘triple-chrome coating’ for durability. It is able to support payloads of up to 10kg at maximum extension, and has a maximum height of 300cm. The two-riser Turtle Base Chrome Steel C-Stand has a maximum footprint of 95cm with 25mm diameter legs for added strength.

Top attachment: 5/8 inch (16mm) lighting stud. Maximum height: 300cm. Closed length: 134cm. Maximum boom extension: 102cm. Maximum footprint diameter: 102m. Maximum payload: 10kg. Colour: Steel. Weight: 8kg.

085BS Light Boom 35

A heavy duty tripod stand with air-cushioning, complete with 085BSL boom arm, wheels, and counterweight.

Maximum height: 280cm. Load capacity: 6kg. Weight: 16.28kg.

085BSL Light Boom 35 - arm only

A 3-section boom complete with 6.8kg counterweight, cable clips, and Pivot Clamp 123. The pole diameter of 35mm aids strength in positioning when extended to the maximum length of 2.5m. The maximum load, at 2.5m is 6kg when using the counter weight.

Attachment: 1/8-inch (28mm) stud. Colour: Black. Weight: 8.36kg

Straight/Boom stands

420CSU Combi-Boom Stand HD

This steel manufactured stand has a height range of 131-392cm and is capable of supporting a payload up to 12kg. Arguably the stands best attribute is the way the upper vertical pole can be manoeuvred into a horizontal boom arm. A counterweight sandbag is included for better balance. A removable base allows for easier storage, and 018 wheels are a suggested option.

Top attachment: 1/4 inch screw (photographic), 3/8 inch screw (standard microphone clamp), 5/8 inch (16mm) lighting stud. Maximum height: 392cm. Closed length: 113cm. Colour: Silver. Maximum footprint diameter: 109cm. Column diameters: 35, 30, 25, 20mm. Weight: 5.6kg.

420B Combi-Boom Stand

With many features of the 420CSU, this lighter aluminium tripod stand can be used as a vertical or vertical plus boom stand by way of press lever. The stand is able to support a payload of up to 9kg, with extra stability via the included sandbag and double braced legs.

Top attachment: Spigot art. 013, type 25. Maximum height: 392cm. Closed length: 113cm. Colour: Black. Maximum footprint diameter: 109cm. Optional wheels: 018. Weight: 3kg.

Autopoles

Manfrotto Autopoles have been designed to create a support from wall to wall, or floor to ceiling, to save on floor space often taken by tripod bases. The ‘easy-to-use’ cantilever system has a safety lock to prevent slipping, whilst each end of the Autopole features ‘robust and reliable’ rubber cups for extra grip and surface protection.

The load limits depend on the extension of the pole. The below table shows the maximum load capable when using an arm attached to the Autopole in vertical orientation.

Arm distance 076/076B 077/077B
0cm 30kg 30kg
50cm 30kg 30kg
100cm 15kg 15kg

076/076B Autopole – 150 – 270cm

Pole diameter: 45/40mm. Maximum height: 270cm. Closed length: 150cm. Weight: 1.8kg.

077/077B Autopole – 100 – 170cm

Pole diameter: 45/40mm. Maximum height: 170cm. Closed length: 100cm. Weight: 1.4kg.

Accessories

109 Wheel set - 3x 80mm, without brakes

Three 80mm wheels to suit 22mm diameter tripod legs such as that on the 008CSU stand. Without brakes and with adapter for legs with diameter of 20mm.

Weight: 1.43kg. Colour: Grey.

104G Wheel set - 3x 100mm, braked

A set of three 100mm braked wheels with M10 screw top. The wheels are able to support a maximum weight of 100kg.

Weight: 3kg. Colour: Grey.

087WBK Wind bracing kit

A set of three 10m ropes and type 14 attachment clamps for bracing a 087NW lighting stand against wind.

Weight: 1kg

123 Pivot clamp - Angle joint for 35mm boom shafts

The 123 Super Boom Pivot Clamp is a pivoting clamp designed for use with 35mm diameter shaft super booms and heavy duty boom arms. Complete with 28mm and 16mm attachment for use with a tripod stand base.

Weight: 800g. Colour: Black. Material: Aluminium.
