YELLOWTEC hush REMOTE OnAir LED on/off control

Yellowtec design, develop, and manufacture professional studio equipment and hardware for TV and radio broadcast studios, and recording studio signalling.

Litt

Yellowtec Litt is a modular signalling device which works with the Yellowtec MMS System Poles. Litt offers a 360 degree viewing angle for signal lights and the facility to add audio alerts in applications such as broadcast and recording studios as well as in office environments.

Litt LED signal lights omit bright, coloured light using Yellowtec 'CleanVision' technology, designed in collaboration with Philips. Using a twist and lock modular system, up to five circular, light segments can be mounted on top of each other without the need for any additional tools. Each segment is 51mm in diameter with a height of 41mm or 27mm, with a light section measuring 22mm or 35mm in height. It is offered in a host of colours including red, green, blue, white, and yellow, with a base colour of aluminium (silver) or black. A 37mm tall sound segment, YT9210, can also be added to the Litt stalk to give audio output to gain maximum attention.

YT9100 Litt Base Controller is required to power up to five lighting segments and has all the components required to install it, with the universal mounting kit and installation tool. Litt Base Controller is constructed from aluminium and can be attached to the top of MMS system poles, or the Litt Wall Holder (YT9101), which also uses the universal mounting kit, can be attached directly to a wall surface.

Aluminium Litt Riser poles are available in lengths of 120mm, 240mm, and 360mm, offered with or without lock screw, and in aluminium (silver) or black. The version with lock screw is designed to be ceiling mount. Litt riser pole can also be purchased per metre (silver only) as YT9503. YT9520 Litt Spoiler can be added for aesthetic purposes, to convert the diameter of the 29mm Litt pole to the 51mm of the Litt Base Controller and colour segments.

Reference chart

Hush, Hush+

Yellowtec Hush and Hush+ are desktop controllers that are compatible with Yellowtec OnAir signalling including the On Air Mic Arm and Litt pole LEDs. The controllers allow for easy control over status LED signals, and also microphone signal with the Hush+. The plug and play concept allows fast handling.

Hush is inserted into the chain between 5-pin XLR connector at the bottom end of your m!ka Mic Arm and mixing console. With the Hush, the microphone signal is looped through unprocessed; with the Hush+ the microphone signal is processed via the integrated preamp with gain from 12dB to 75dB at -129dB input referred noise. Hush+ also offers microphone mute, whilst highpass filter and phantom power status is controllable via Yellowtec's hush App.

Five different modes, including Hush Remote, GPIs, USB-HID or MIDI (USB/Ext.) allows control in a number of situations and setups.

Available options

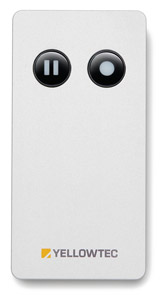

Optional accessories: YT3904 Hush Remote.

Dimensions (HxWxD): 45 x 127 x 185mm. Weight: 0.5kg
