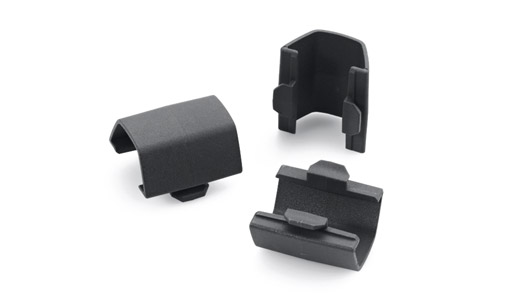

YELLOWTEC m!ka CABLE CLAMP For Monitor Arm, pack of 10

Stock code
53-1048
Brand
Yellowtec
Model number
  • YT3220
  • CABLE CLAMP
YELLOWTEC m!ka CABLE CLAMP For Monitor Arm, pack of 10
YELLOWTEC m!ka CABLE CLAMP For Monitor Arm, pack of 10

YELLOWTEC m!ka MONITOR ARMS

Yellowtec m!ka series is a stylish, integrated system for mounting and positioning monitors in studio and workstation applications, giving an elegant visual appearance for all the 'desktop furniture' in a studio.


Monitor Arm

The folding monitor arm is a reinforced, two-part, articulated arm with VESA 75/100 standard attachment and quick-release catch and pole-clamp. Monitors weighing up to 10kg can be pivoted horizontally for optimum location on the Monitor Arm XL and up to 15kg on the XS, M, and SL models. A sophisticated ball-and-socket joint at the end of the arm permits precise screen alignment for optimum viewing. The arm can be locked at any point vertically on the pole. All versions are available in either aluminium or black finish.

Silver Black Radius Load Capacity
Monitor Arm XS YT3231 YT3631 Swivel only 15kg
Monitor Arm SL YT3228 YT3628 450mm 15kg
Monitor Arm M YT3230 YT3630 505mm 15kg
Monitor Arm XL YT3229 YT3629 700mm 10kg

Easylift MKII Monitor Arm

Available in black and aluminium finishes, m!ka EasyLift MKII Monitor Arm is the second generation of Yellowtec's height adjustable m!ka EasyLift. The monitor arm allows for height adjustments at ease, and therefore is suited to shared workspaces used by multiple persons. An integrated pneumatic spring allows the user to regulate the monitor's height without the need to readjust the boom. The 'QuickFix Adapter' for VESA75 and VESA100 fixtures ensures safe attachment of the monitor.

Easylift MKII Monitor Arm does not include a mounting adapter, however one is required to ensure proper setup and fixing. Compatible mounts include YT3834/YT3835 pole adapters, YT3828/YT3829 table clamps, and YT3838/YT3839 wall brackets. Note: The MKII monitor arms are not compatible with older mounts, nor do they fit on top of a m!ka System Pole.

Colour Maximum Maximum Maximum
load range height
YT3830 Aluminium 6-15kg 525mm 300mm (VESA centre 150-450mm above tabletop)
YT3831 Black 6-15kg 525mm 300mm (VESA centre 150-450mm above tabletop)

Included accessories: QuickFix VESA adapter, 4x M4 screws for VESA mount, cable clamp, m!ka briefing book.

ACCESSORIES AND MOUNTS


Twin Monitor Mount

Yellowtec m!ka Twin Monitor Mount enables the user to mount two monitors up to 30-inch, and up to 15kg total, right next each other on a m!ka Monitor Arms. Screws are included to fix the m!ka Twin Monitor Mount to the monitor/s and to the QuickFix or VESA100 mount of the m!ka Monitor Arm. The m!ka Twin Monitor Mount can also be used without QuickFix..

Pivot Monitor Adapter

m!ka Pivot Monitor Adapter has been designed to mount a monitor weighing up to 15kg, to a m!ka Monitor Arm. The Pivot adapter allows the user to rotate the monitor up to 90degrees clockwise or anti-clockwise.


EasyLift MKII Wall Adapter

Available in black or aluminium finish, this bracket is desgiedn to be fixed to a wall or flat surface using the included 4x M6 screws and accompanying dowels. The bracket has a carrying capacity of 15kg and measures 90 x 165 x 90mm. Note: this adapter is compatible with m!ka EasyLift MKII Monitor Arm and not older EasyLift Monitor Arms.


EasyLift MKII Pole Adapter

m!ka EasyLift MKII Pole Adapter is available in black or aluminium finishes, and has been designed to to fix the EasyLift MKII Monitor Arm to a m!ka System Pole. The adapter has 2x pre-installed screws for secure attachment to the pole. Note: this adapter is compatible with m!ka EasyLift MKII Monitor Arm and not older EasyLift Monitor Arms.


EasyLift MKII Table Clamp

This desk clamp is designed for users who wish to mount their monitor arm directly to the desktop or flat surface. The clamp is adjustable with a range of 10-50mm. Note: this adapter is compatible with m!ka EasyLift MKII Monitor Arm and not older EasyLift Monitor Arms.

More Yellowtec accessories can be purchased to compliment the monitor arms, see YELLOWTEC ACCESSORIES.
