CANARE BCJ-R/1 BNC Female panel, solder

Stock code
48-496
Brand
Canare
Model number
  • BCJ-R/1

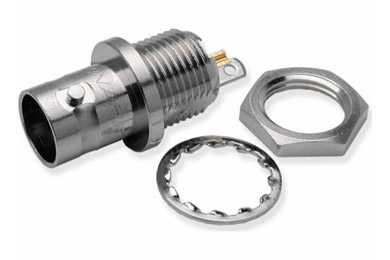

CANARE BCJ-R/1 BNC Female panel, solder
CANARE BCJ-R/1 BNC Female panel, solder

CANARE BNC CONNECTORS - Female, panel - Back to back - 3G HD-SDI

Available for single-hole fixing (double “D” profile, diameter 11.2mm with two flats on opposite sides 9.6mm apart), in both BNC-solder and BNC-BNC (“back-to-back”) types. Both are uninsulated from the panel, but coloured pairs of plastic isolating washers are also available, suitable for both types. Panel hole diameter for washers is 12.8mm with two flats on opposite sides 11.2mm apart.
