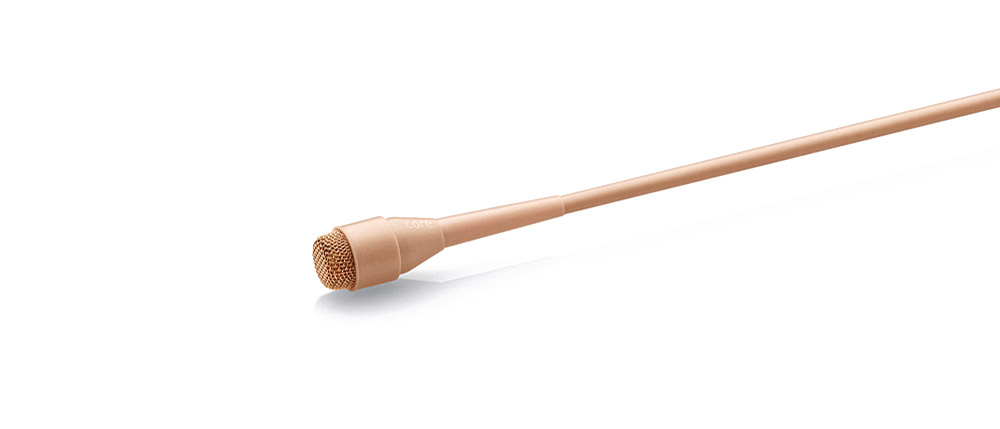

DPA 4063 CORE MICROPHONE Miniature, omni, loud SPL, DC offset, beige, MicroDot

Stock code
74-1703
Brand
DPA (DPA Microphones)
Model number
  • 4063-OC-C-F00
  • 4063 CORE
  • CORE 4063
Colour
  • BeigeBeige
DPA 4063 CORE MICROPHONE Miniature, omni, loud SPL, DC offset, beige, MicroDot
DPA 4063 CORE MICROPHONE Miniature, omni, loud SPL, DC offset, beige, MicroDotDPA 4063 CORE MICROPHONE Miniature, omni, loud SPL, DC offset, beige, MicroDotDPA 4063 CORE MICROPHONE Miniature, omni, loud SPL, DC offset, beige, MicroDot

Order

VAT / Delivery
$451.95
each (ex. VAT)
Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
RoHS Compliant

DPA MICROPHONES - Miniature and Subminiature

A series of miniature and subminiature microphones from DPA, designed for use in theatre, live performance, interview, and presentation. The microphones are available in various forms with differing colours, pickup patterns, and sensitivities.

Ordering Note

Versions listed with MicroDot termination are for use with optional DPA MicroDot adapter, however some items are also listed as fixed type termination versions. These versions do not have a MicroDot termination and are available as fixed 3-pin LEMO (03), TA4F mini-XLR (10), or 3.5mm locking jack with Sennheiser compatibility (34). Please specify the termination required when ordering.

2061 Series - Miniature

This series of microphone has been designed to provide 'excellent results' for voice amplification or recording within broadcast studios and ENG, theatres, houses of worship, event venues, and various other content creation situations. The microphone is for sound engineers that require 'a great-sounding, no-frills microphone' with 'clear and authentic sound' in a rugged body when budgets are tight.

2061 - For Loud SPL

Available in four colours and with a choice of three termination types including 3-pin LEMO, TA4F, and 3.5mm jack; DPA 2061 is an omnidirectional microphone designed for those with a tighter budget and not necessarily looking for the modularity of MicroDot termination or removable frequency cap. The frequency response is listed as between 20Hz to 20kHz, but DPA also publish an effective frequency range (+/-3dB) of 50Hz to 16kHz with a 3dB soft boost at 8kHz to16 kHz - which, at 8kHz adds brilliance and air to the audio signal.

The microphone is IP57 certified for dust ingress and temporary immersion in water, and allows the user to clean the microphone in demineralized water. The cable is Kevlar reinforced and has a diameter of 1.6mm and a length of 1.5m.

Brown and beige versions are available with either 3-pin LEMO, TA4F, or 3.5mm jack connector, and without accessories.
Black and white versions are available with either 3-pin LEMO, TA4F, or 3.5mm jack connector, and are shipped complete with 1x SCM0035 microphone clip and 1x miniature foam windscreen in respective colour.

Optional accessories: AIR1 windscreen, SCM0035 microphone clip, DUA0593 mic mount, SCM0030 microphone clip, DUA0560, DUA0566, DUA0567, DUA0568 windscreen, and DUA0591 makeup cover.

Frequency response: 20Hz-20kHz; 50Hz-16kHz, +/-3dB (with 3d soft boost at 8-16kHz). Equivalent noise level: 26dB typical, A-weighted. Dynamic range: 102dB. Weight: 10g, including cable and 3-pin LEMO connector.

6000 CORE Series - Subminiature

DPA’s CORE 6000 series of sub-miniature microphones, formally known as the d:screet series, feature their ‘smallest ever’ microphone capsule. Designed for use in pro audio markets such as broadcast, theatre and film, the 6000 series sub-miniature microphones are 3mm in diameter, ‘two millimetres smaller than the DPA’s existing 4000 series’ microphones.

The CORE technology used in the capsules provides a more defined sound by minimizing distortion and expanding the dynamic range. Although originally designed for use with wireless systems in theatre, television and close-positioned instrument applications, the omnidirectional capsules also use ‘hermetic sealing’ and a ‘nano coating’ to provide an IP rating of 58 – making the microphones applicable to on field sports where moisture from the body or atmosphere are unavoidable.

6060 CORE - For normal SPL

Available in black, beige, brown, or white the omnidirectional 6060 CORE sub-miniature lavalier microphone is 3mm in diameter and has a capsule and cap that are manufactured from stainless steel and ‘treated with Physical vapor deposition (PVD)’ to give a coating that aids durability. The cap is removable for cleaning. The capsules also use ‘hermetic sealing’ and a ‘nano coating’ to provide an IP rating of 58 – making the microphones applicable to on field sports where moisture from the body or atmosphere are unavoidable. 6060 CORE has a dynamic range of 102dB typical, and a maximum SPL of 134dB with a nominal sensitivity of 20mV/Pa. The microphone has the same cable relief as the 5mm CORE microphones and has a fixed cable of 1.8m with a diameter of 1.6mm. The microphones are fitted with cable terminated in a 'MicroDot' connector. A range of adapters for different wireless transmitters and direct cable connection is available.

Frequency response: 20Hz-20kHz; 40Hz-20kHz, +/-2dB (with 4dB soft boost at 8-20kHz). Equivalent noise level: 24dB typical, A-weighted. Signal to noise ratio: 70dB typical, A-weighted. Weight: 8g, including cable and MicroDot connector.

6061 CORE - For loud SPL

The 6061 capsule has all the physical properties of the 6060 capsule however it has been designed to handle ‘very loud sound sources’ and typically used as ‘a hidden head mounted mic in theatre’ style application. 6061 CORE has a dynamic range of 102dB typical, and a maximum SPL of 144dB with a nominal sensitivity of 6mV/Pa. The microphones are fitted with cable terminated in a 'MicroDot' connector. A range of adapters for different wireless transmitters and direct cable connection is available.

Frequency response: 20Hz-20kHz; 40Hz-20kHz, +/-2dB (with softboost at 8-20kHz). Equivalent noise level: 26dB typical, A-weighted. Signal to noise ratio: 68dB typical, A-weighted.

4000 CORE Series - Miniature

Formally known as the DPA d:screet series, this range of DPA CORE microphones implements new technology within existing DPA capsules, to provide a more defined sound by minimising distortion and expanding the dynamic range. Although originally designed for use with wireless systems in theatre, television and close-positioned instrument applications, the omnidirectional capsules also use 'hermetic sealing' and a 'nano coating' to provide an IP rating of 58 - particularly relevant to on-field sports, where moisture from the body or atmosphere are unavoidable.

The acoustic response of the microphone is selected by the choice of two 'protection grids' supplied with each microphone. The short grid gives a 3dB soft boost at 8-20kHz and is intended to be used when the microphone is mounted on the performer's head. The long grid gives a 10dB boost at 12kHz, intended for chest placement. The grids can be detached from the microphone and cleaned of sweat, make-up etc. with alcohol. The microphones are fitted with cable terminated in a 'MicroDot' connector. A range of adapters for different wireless transmitters and direct cable connection is available. A range of fixing clips (not included) are also available.

4060 CORE - For normal SPL

The omnidirectional DPA CORE 4060 has a 6dB increase over the Legacy 4060 capsule, giving a dynamic range of 106dB typical, and a maximum SPL of 134dB. Originally designed for use in television and film sound recording, the microphone is also frequently used for a range of close-miking, including instruments. The pre-polarised condenser mic has a frequency range of 20Hz-20kHz and a nominal sensitivity of 20mV/Pa. The microphone is 'well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise'. the 4060 is best suited for close pick-up of voice or instrument. Available in black, brown, beige or white finish.

Directional pattern: Omnidirectional. Frequency response: 20Hz - 20kHz. Effective range: 20Hz - 20kHz, 3dB soft boost at 8 - 20kHz. Soft boost grid; 20Hz - 20kHz, 10dB boost at 12kHz, High boost grid. Sensitivity: 20mV/Pa; -34dB re. 1V/Pa. Equivalent noise level: Typ. 23dB(A) re. 20µPa (max. 26dB(A)). THD: 126dB SPL, RMS; 129dB SPL, peak. Dynamic range: Typ. 106dB. Maximum SPL: 134dB SPL peak. Output impedance: 30-40ohms. Cable length: 1.8m. Dimensions (Diam x L): 5.4 x 12.7mm. Weight: 7.5g, with cable and MicroDot connector.

Also available as:
4060 CORE Lavalier Kit
4060 CORE Stereo Kit

4660 CORE - For normal SPL, heavy duty

This microphone has the same audio properties and capsule features as the DPA 4060 CORE, however it has a stainless steel housing, heavy-duty cable relief, and reinforced cable 2.2mm cable. The microphone is available in black or beige finish with MicroDot termination. Weight: 13g.

4061 CORE - For loud SPL

The omnidirectional DPA 4061 CORE has a 14dB increase over the Legacy capsule, giving a dynamic range of 111dB typical, and a maximum SPL of 144dB. The microphone is therefore suited to mike very loud sound sources. The frequency response and physical properties are the same as the 4060 CORE however a nominal sensitivity of 6mV/Pa means the 4061 CORE is more suited to hidden, head-mounted applications in venues such as theatres. Available in black, brown, beige or white finish.

Directional pattern: Omnidirectional. Frequency response: 20Hz - 20kHz. Effective range: 20Hz - 20kHz, 3dB soft boost at 8 - 20kHz. Soft boost grid; 20Hz - 20kHz, 10dB boost at 12kHz, High boost grid. Sensitivity: 6mV/Pa; -44dB re. 1V/Pa. Equivalent noise level: Typ. 26dB(A) re. 20µPa (max. 28dB(A)). THD: 134dB SPL, RMS; 137dB SPL, peak. Dynamic range: Typ. 111dB. Maximum SPL: 144dB SPL peak. Output impedance: 30-40ohms. Cable length: 1.8m. Dimensions (Diam x L): 5.4 x 12.7mm. Weight: 7.5g, with cable and MicroDot connector.

Also available as:
4061 CORE Stereo Kit

4661 CORE - For loud SPL, heavy duty

This microphone has the same audio properties and capsule features as the DPA 4061 CORE, however it has a stainless steel housing, heavy-duty cable relief, and reinforced cable 2.2mm cable. The microphone is available in black or beige finish with MicroDot termination. Weight: 13g.

4062 CORE - For Extreme SPL

DPA 4062 CORE is an omnidirectional capsule that has an 'extremely loud' maximum SPL of 154dB. The microphone is therefore suited to very loud noise situations and positions such as car exhausts or engine bays. DPA mention that the 4062 CORE was used by Günther Raupp to record the sound of a Ferrari. 4062 CORE is available in black or beige.

Directional pattern: Omnidirectional. Frequency response: 20Hz - 20kHz. Effective range: 20Hz - 20kHz, 3dB soft boost at 8 - 20kHz. Soft boost grid; 20Hz - 20kHz, 10dB boost at 12kHz, High boost grid. Sensitivity: 1mV/Pa; -44dB re. 1V/Pa. Equivalent noise level: Typ. 45dB(A) re. 20µPa (max. 37dB(A)). THD: 136dB SPL, RMS; 139dB SPL, peak. Dynamic range: Typ. 106dB. Maximum SPL: 154dB SPL peak. Output impedance: 30-40ohms. Cable length: 1.8m. Dimensions (Diam x L): 5.4 x 12.7mm. Weight: 7.5g, with cable and MicroDot connector.

4063 CORE - For Loud SPL/Low voltage

DPA 4063 CORE is similar to the CORE 4060, but with the addition of an FET preamplifier at the input stage, for better operation, with full performance, on lower voltage supplies. Power supply for full performance: 3-30V for wireless systems through DPA adapter; 48V +/-4V phantom power with DAD6001-BC/DAD6024/DAD4099. With a 12dB increase from the Legacy capsule, the CORE 4063 gives a dynamic range of 109dB and a maximum SPL of 135dB. This capsule is available in black, beige or white.

Directional pattern: Omnidirectional. Frequency response: 20Hz - 20kHz. Effective range: 20Hz - 20kHz, 3dB soft boost at 8 - 20kHz. Soft boost grid; 20Hz - 20kHz, 10dB boost at 12kHz, High boost grid. Sensitivity: 6mV/Pa; -44dB re. 1V/Pa. Equivalent noise level: Typ. 26dB(A) re. 20µPa (max. 20dB(A)). THD: 132dB SPL, RMS; 135dB SPL, peak. Dynamic range: Typ. 109dB. Maximum SPL: 138dB SPL peak. Output impedance: 30-40ohms. Cable length: 1.8m. Dimensions (Diam x L): 5.4 x 12.7mm. Weight: 7.5g, with cable and MicroDot connector.

4071 CORE - With presence boost

Available in black, beige, or white, DPA 4071 CORE omnidirectional microphone is designed specifically for ENG work. A low-cut filter below 100Hz and a 5dB soft presence boost between 4-6kHz to give better speech reproduction. The microphone is designed to cater for loud SPL application.

Directional pattern: Omnidirectional. Frequency response: 20Hz - 20kHz. Effective range: 100Hz - 15kHz with typ. 5dB soft boost at 4 - 6kHz. Sensitivity: 6mV/Pa; -44dB re. 1V/Pa. Equivalent noise level: Typ. 26dB(A) re. 20µPa (max. 20dB(A)). THD: 134dB SPL, RMS; 137dB SPL, peak. Dynamic range: Typ. 111dB. Maximum SPL: 144dB SPL peak. Output impedance: 30-40ohms. Cable length: 1.8m. Dimensions (Diam x L): 5.4 x 17.6mm. Weight: 7.5g, with cable and MicroDot connector.

Also available as:
4071 CORE ENG/EFP Kit
4071 CORE Film Kit

4671 CORE - With presence boost, heavy duty

This microphone has the same audio properties and capsule features as the DPA 4071 CORE, however it has a stainless steel housing, heavy-duty cable relief, and reinforced cable 2.2mm cable. The microphone is available in black finish with MicroDot termination. Weight: 14g.

4080 CORE

DPA 4080 CORE is an acoustically pre-equalized, cardioid, lavalier microphone. Designed for broadcast, conferencing, and live performance, 4080 CORE offers 'maximum side rejection and excellent sonic focus on the subject'. The microphone is supplied with a pre-mounted pop filter with integrated shock mount. A clip is provided to attach to clothing. This microphone is not compatible with the optional long or short boost grids. Finish is black.

Optional accessories and spares: DMM0014 single clip, DMM0015 dual clip, DMM0016 magnet mount, SM4080 spare shock mount.

Directional pattern: Cardioid. Frequency response: 20Hz - 20kHz. Effective range: 250Hz - 17kHz with typ. 4dB soft boost at 4-6kHz (-5dB at 10 Hz). Equivalent noise level: Typ. 23dB(A) re. 20µPa (max. 26dB(A)). THD: 126dB SPL, RMS; 129dB SPL, peak. Dynamic range: Typ. 106dB. Maximum SPL: 134dB SPL peak. Output impedance: 30-40ohms. Cable length: 1.2m. Dimensions (Diam x L): 5.7 x 30mm. Weight: 15g, with cable and MicroDot connector.

LAVALIER KITS

4060 CORE Lavalier Kit

This kit is an all-in-one solution for those requiring a lavalier microphone. The kit includes 1x 4060 CORE, 1x DAD6001-BC, 1x SCM0017 microphone holder, 1x DUA6001, and 1x DUA6002.

4060 CORE Stereo Kit

This kit features two, hand-picked 4060 CORE microphones with a sensitivity differential of less than 1.5dB. The kit includes 2x 4060 CORE (normal SPL), 2x BLM6000 boundary layer mounts, 2x DAD6001-BC XLR adapters, 2x soft boost grids, 2x surface mounts, 2x magnet mounts, 5x foam windscreens, 2x holder for strings.

4061 CORE Stereo Kit

This kit features two, hand-picked 4060 CORE microphones with a sensitivity differential of less than 1.5dB. The kit includes 2x 4061 CORE (loud SPL), 2x BLM6000 boundary layer mounts, 2x DAD6001-BC XLR adapters, 2x soft boost grids, 2x surface mounts, 2x magnet mounts, 5x foam windscreens, 2x holder for strings.

4071 CORE ENG/EFP Kit

This is an all-in-one solution for use in ENG/EFP applications. The kit includes 1x 4071 CORE, 1x DAD6001-BC, 1x DMM0003-B, 1x DMM0002-B, 1x DUA0570, 1x fur windscreen, and 1x miniature mesh.

4071 CORE Film Kit

This kit is aimed at film and broadcast applications. The kit includes 1x 4071 CORE, 10x double-sided concealer tape, 10x double sided microphone tape, 1x miniature mesh.

Adapters and Accessories

A range of MicroDot adapters are available to allow the connection between microphone and wireless transmitter, or a standard 48V phantom powered XLR. See DPA MICROPHONES - MicroDot adapters and cables. DPA miniature and subminiature accessories, including mounts, makeup covers, foam windshields, and clips are also available. See DPA MICROPHONES - Spares and Accessories
