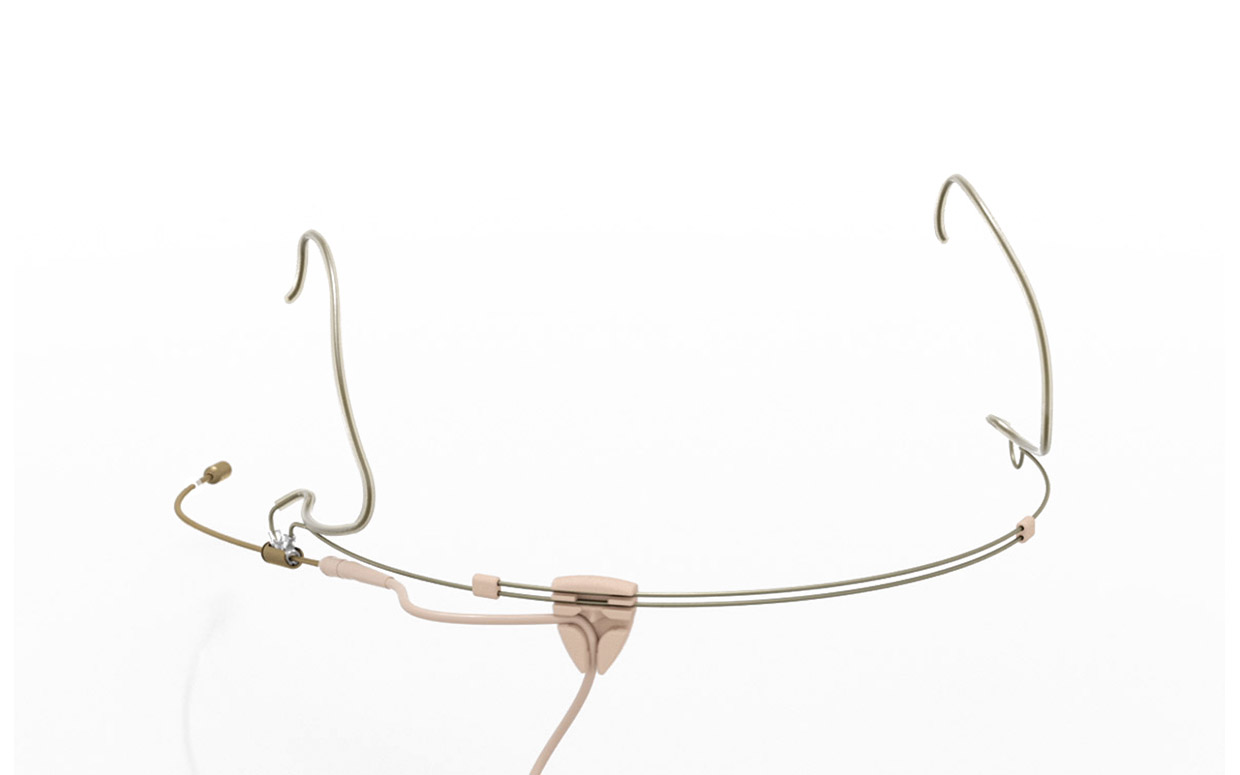

DPA 6066 CORE MICROPHONE Headset, omni, sub-miniature, beige, MicroLock

Stock code
74-2152
Brand
DPA (DPA Microphones)
Model number
  • 6066-OC-R-F90
  • 6066 CORE
  • CORE 6066
Colour
  • BeigeBeige
DPA 6066 CORE MICROPHONE Headset, omni, sub-miniature, beige, MicroLock

Image may be provided for illustrative purposes only, please refer to the product description.

DPA 6066 CORE MICROPHONE Headset, omni, sub-miniature, beige, MicroLockDPA 6066 CORE MICROPHONE Headset, omni, sub-miniature, beige, MicroLock

Order

VAT / Delivery
$829.60
each (ex. VAT)
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us

DPA MICROPHONES - Headworn and Earset

A series of headworn microphones from DPA, designed for presentation, live stage, and theatre use and available in various colours, styles, and pickup patterns.

Ordering Note

Versions are listed with MicroDot or MicroLock termination for use with optional DPA MicroDot/MicroLock adapter, however some items are also listed as fixed type termination versions. These versions do not have a MicroDot/MicroLock termination and are available as fixed 3-pin LEMO (03), TA4F mini-XLR (10), or 3.5mm locking jack with Sennheiser compatibility (34). Please specify the termination required when ordering.

6000 CORE Series

DPA’s CORE 6000 series headworn microphones feature their ‘smallest ever’ microphone capsule. Designed for use in pro audio markets such as broadcast, theatre and film, the 6000 series sub-miniature microphones are 3mm in diameter, ‘two millimetres smaller than the DPA’s existing 4000 series’ microphones.

The CORE technology used in the capsules provides a more defined sound by minimising distortion and expanding the dynamic range. Although originally designed for use with wireless systems in theatre, television and close-positioned instrument applications, the omnidirectional capsules also use ‘hermetic sealing’ and a ‘nano coating’ to provide an IP rating of 58 – making the microphones applicable to on field sports where moisture from the body or atmosphere are unavoidable.


6066 CORE - Omnidirectional, dual-ear support

Available in black, beige, or brown the 6066 CORE has a dual-ear design with ‘3-point gripping system’ which utilises support on the ear, behind the ear, and under the ear, ‘gently pressing inward’ to sit more securely around the ear as well as making more ergonomic and comfortable for longer periods of use. The boom are is 130mm in length and can be adjusted in length as well as pivoted up and down to ensure best positioning. The omnidirectional pre-polarised condenser capsule of the DPA 6066 CORE has a dynamic range of 102dB typical, and a maximum SPL of 144dB with a nominal sensitivity of 6mV/Pa. The mic capsule has a diameter of 3mm and has a fixed cable of 1.3m, giving for a total weight of 11g including connector.

Frequency response: 20Hz-20kHz; 40Hz-20kHz, +/-2dB (with softboost at 8-20kHz). Equivalent noise level: 26dB typical, A-weighted. Signal to noise ratio: 68dB typical, A-weighted.

4000 CORE+ Series

4000 CORE Series

Adapters and Accessories

A range of MicroLock and MicroDot adapters are available to allow the connection between microphone and wireless transmitter, or a standard 48V phantom powered XLR. See DPA MICROPHONES - Adapters and Cables. DPA accessories, including mounts, makeup covers, foam windshields, and clips are also available. See DPA MICROPHONES - Spares and Accessories
