This range of DMX to network converters and controls operates over Artnet, sACN and Shownet as standard protocols. They offer remote programming and monitoring, using the ELC dmXLAN software which may be downloaded at no charge. Nodes range from the 'Buddy', offering two DMX ports and a single Ethernet connection, to eight-port devices which may be combined to produce a system with 120 fully-programmable DMX/RDM ports.
DMX output options available are normal, merging in HTP, channel custom, priority merging, full softpatch (channel by channel), programmable merging with DMX channel control, with support for WYSIWYG, ESP, Capture.
This is a 2-port DMX to Ethernet node, allowing dynamic merging, fixture control and RDM (Remote Device Management) support. Utilising 2x 5-pin XLR connectors to provide 2x DMX-512 ports that can be programmed as input or output, it offers 1024 DMX channels. An RJ45 socket provides the 10/100Mbit Ethernet connection; a USB connection is used for the power supply and setup software. Dimensions: 40mm x 64mm x 84mm. USB-B cable required.
Ethernet to DMX adapter nodes, these are used for converting data between one DMX universe and an Ethernet network, for remote programming and monitoring.They support Art-Net / sACN / Strand shownet and are fully supported by the dmXLAN software.
The DLN1SM and DLN1SF are POE powered, desk or surface-mounted Ethernet to DMX adapter nodes with a male or female 5-pin XLR for the DMX port and 1x Ethercon connector for the network connection. Power source: POE (IEEE 802.3af). Dimensions: 43 x 71.12 x 83mm. Weight: 0.5kg.
The DLN1DIN mounts on a DIN rail, and may be powered using POE (IEEE 802.3af) or by a source of 12V 200mA DC power. Power and DMX connections are via screw terminals, an RJ45 connector provides the network connection.
This range connects 3x bi-directional, RDM compatible, DMX ports to 2x Ethernet 10/100MBit Ethernet network ports, with an internal switch providing the second Ethernet port for either a local lighting desk, a PC running ELC dmXLAN control/management freeware or additional Ethernet switches or nodes.
DLN3DINFI mounts on a DIN rail. They have 3x fully isolated 3-pin DMX ports connected via screw terminals and 2x RJ45 connectors. Power source: 9-24V DC, 200mA external power supply required. Weight: 0.5kg.
DLN3SMFI is POE powered, and surface mounting They have a front facing display and rotary encoder control for local configuration of DMX and network parameters, 3x fully isolated female 5-pin XLR DMX ports and 1x Ethercon connector on the front, with an RJ45 connector on the rear. Power source: POE (IEEE 802.3af). Dimensions: 140 x90 x 50mm. Weight: 0.5kg
DLN3TM FI is AC mains powered and desktop or 'truss' mounting; there is an M10 mounting thread on the underneath.The front panel has a display and rotary encoder control for local configuration of DMX and network parameters. Connectors are on the rear of the unit; 3x fully isolated female 5-pin XLR DMX ports and 2x Ethercon for network. Power source: 100-240V AC 50/60Hz, captive power lead. Dimensions:150 x 200 x 50mm, 1.4kg.
DLN3TMPoEFI are POE powered and desktop or 'truss' mounting; there is an M10 mounting thread on the underneath.The front panel has a display and rotary encoder control for local configuration of DMX and network parameters. Connectors are on the rear of the unit; 3x fully isolated female 5-pin XLR DMX ports and 2x Ethercon for network. Power source: POE (IEEE 802.3af). Dimensions:150 x 200 x 50mm, 1.4kg.
Optional accessories: RMDT 19 inch rack mounting kit for DLN3TM variants.

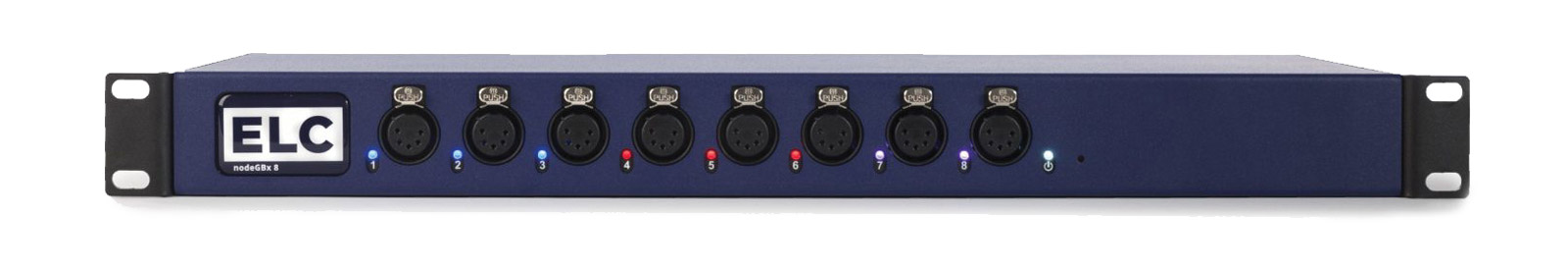

DMXLAN NodeGBx 8
Offering 8 fully-isolated, fully programmable DMX ports and a dual port Gigabit switch with user interface and RGB LED indication for data splitting, merging, softpatching and backup when programmed using ELC dmXLAN software. The output of the DMX ports is measured continuously and detected changes and errors are appearing on the display and in dmXLAN. Dimensions: 80 x 165 x 45 mm. 1x NAC3FX-W power connector included.
DLN8GBXSL
The DLN8GBXSL has 8 fully programmable DMX ports and a dual Gigabit port switch but can only be used as a slave to the dmXLAN switch GBx 10 or dmXLAN switch GBx 18. The DMX ports can be configured via the user interface of the switch or with the dmXLAN software. Up to 15 of these slave units can be connected to the switch, giving a system rack with 120 fully programmable DMX/RDM ports. Dimensions: 480 x 165 x 45 mm, 1x NAC3FX-W power connector included.
Note (1): 35mm DIN EN 60715 rail mount, DIN 43880 form factor, occupies 6 DIN module spaces (108mm). Note (2): Neutrik 16A Powercon true1 power inlet and loop output connectors.
Note: ELC products are only available for sale to customers in the UK and Ireland.
