SONIFEX AVN-AI16R DANTE AUDIO INTERFACE 16x analogue XLR inputs, dual Dante, 1U

Stock code
95-5966
Brand
Sonifex
Model number
  • AVN-AI16R
SONIFEX AVN-AI16R DANTE AUDIO INTERFACE 16x analogue XLR inputs, dual Dante, 1U
SONIFEX AVN-AI16R DANTE AUDIO INTERFACE 16x analogue XLR inputs, dual Dante, 1USONIFEX AVN-AI16R DANTE AUDIO INTERFACE 16x analogue XLR inputs, dual Dante, 1U

SONIFEX DANTE AUDIO INTERFACES - Multi-channel - AVN Series

Sonifex AVN-AIO multi-channel audio inputs and outputs to Dante interfaces have been designed as 1U rack-mount solutions for systems integrators within the AV sector. They have either single or dual Dante connection, and are powered via PoE.

AVN-AIO - Analogue inputs and outputs

AVN-AI - Analogue inputs


AVN-AI16

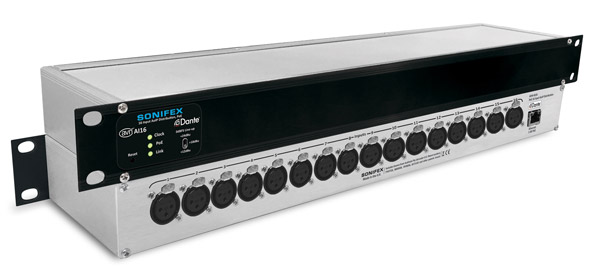

This interface is analogue input only, with audio output via Dante. A total of 16-channels of audio can be simultaneously connected to the balanced 3-pin Neutrik XLR inputs LED indicators on the front facing panel allow the user to quickly identify PoE, Link and Clock statuses. All connectivity including single RJ45 Dante output and analogue audio inputs are positioned on the rear facing panel. The interface is powered via PoE.

Input impedance: greater than 20kohm balanced. 0dBFS line-up: User selectble +12dBu/+18dBu/+24dBu balanced. Frequency response: 20Hz to 20kHz, +0/-0.2dB. THD+N: Less than -110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW. Noise: -110dBFS, 20kHz BW. Crosstalk: Less than -100dB. Sample rates: 44.1/48/88.2/96/176.4/192kHz. Encoding: PCM 16/24/32bit. Dimensions (WxDxH): 48 x 11 x 4.3cm. Weight: 1.1kg.


AVN-AI16R

This audio interface has the functionality and connectivity of the AVN-AI16, however it has a total of two Dante connections giving the ability for redundancy.

AVN-AO - Analogue outputs

AVN-AESIO - Digital inputs and outputs
