A range of DPA MicroDot adapters and connecting cables that allows the user to extend the distance from microphone to source, along with add compatibility for different wireless system input type.
The adapters for wireless systems give you flexible, simple and affordable possibilities, and allow the user to switch the same microphone between transmitter types, or standard 48V phantom power, 3-pin XLR.
Note that the adapters contain circuitry to pass the correct supply voltage to the microphone, so may not be suitable for use with other miniature microphones. Adapters are available for most UHF transmitters. If an adapter is required for a transmitter not listed here, please contact Technical Support.

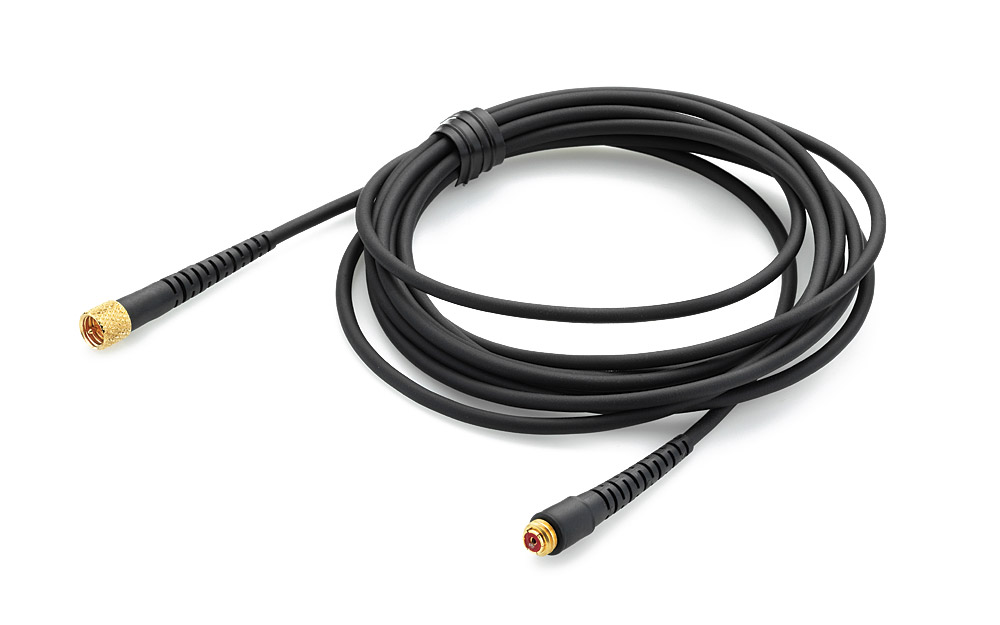

CM16 Extension cable
A MicroDot Extension Cable for any DPA miniature microphone. The Kevlar reinforced cable is compatible with any DPA MicroDot adapter. Cable diameter: 1.6mm. Length: 1.8m option.
CM22 Extension cable
A Kevlar reinforced, heavy duty MicroDot Extension Cable for any DPA miniature microphone. The thicker and more sturdy (in comparison to CM16) allows compatibility to any DPA MicroDot and is ‘perfect for use in physically-challenging environments’ like the live stage. Cable diameter: 2.2mm. Length: 1.8/5/10/20m options.
An installation solution that uses Mogami cable and an ultra-slim XLR housing. It is a cable for suspension or minimal visual appearance, adding only a few millimeters extra length to the microphone.
Most of the connector will be locked and hidden within the microphone, leaving an elegant looking solution for applications in concert halls, conference rooms, TV Broadcast or live sound reinforcement where minimal visual appearance is appreciated. This cable is available in 10m (33 ft) and 20m (66 ft) lengths.
