500510 1x2, 8K/60, HDMI
This 1x2 HDMI splitter has the ability to handle high data rates, and supports up to 8K resolution. Features including EDID management and cable equalization make it suitable for a wide range of applications in both residential and commercial settings. The device is both HDMI and HDCP 2.3 compliant, and supports 48Gbps FRL and 18Gbps TMDS video bandwidth. Resolutions up to 8K/60Hz 4:2:0 12bit or 4K/120Hz 4:4:4 12bit are supported, whilst HDMI protocols include VRR, ALLM, QMS, QFT, and SBTM. Automatic downscaling from 8K to 4K, or 8K/4K to 1080P is provided on all outputs. Audio formats include LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD. Dimensions (WxDxH): 95 x 68 x 18mm. Weight: 177g.
Included accessories: 5V DC power supply.

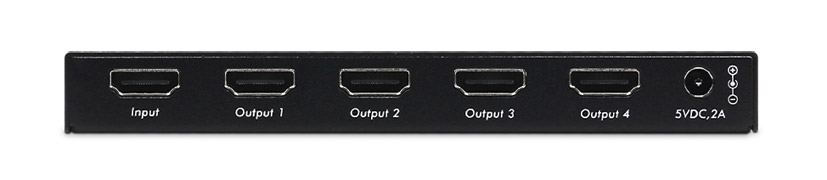

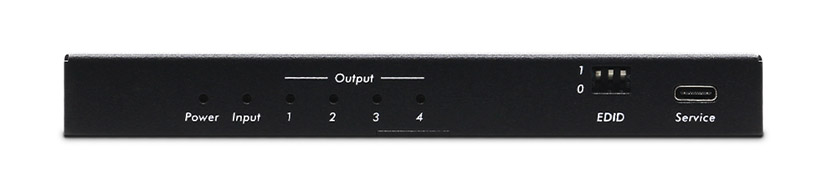

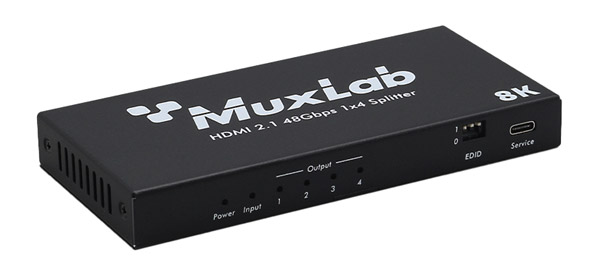

500511 1x4, 8K/60, HDMI
500511 has the same feature set and specifications as 500510, however it is a 1-in, 4-out splitter. Dimensions (WxDxH): 145 x 68 x 17mm. Weight: 263g.
Included accessories: 5V DC power supply.
500422 1x8, 4K/30, HDMI
Discontinued
This metal enclosed HDMI splitter is HDCP 1.3 compliant and support 3D and up to 4K (3840 x 2160), 1080p at 60Hz, 12-bit deep colour and LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio. The front panel has coloured LEDs to indicate power (green) and HDMI input/output link (blue) status; the rear panel houses all HDMI I/O connectivity and 5V DC input.
Included accessories: 5V DC power supply.
500425 1x2, 4K/60, HDMI/HDBT
This 1x2 HDMI splitter is housed in a metal enclosure and supports up to 4K, 60Hz (4:4:4), HDR and 12-bit deep colour. LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTD-HD Master Audio and DTS:X audio formats are supported. The front panel has coloured LEDs to indicate power (blue) and HDMI input/output link (green) status. The rear panel houses all HDMI I/O connectivity, USB service connection, rotary switch to select the EDID (external display identification data) mode, and 5V DC input.
Included accessories: 5V DC power supply, mounting brackets.
500424 1x4, 4K/30, HDMI/HDBT
A 1x4 HDMI/HDBT splitter for use with single HDMI and 3D source input and up to four HDBT outputs. A local monitoring output is provided by way of HDMI connection - this can also be used to cascade up to four additional splitters. Supports 4K, 30Hz (4:4:4) and is HDCP 1.4 compliant. Audio formats supported include PCM, Dolby TrueHD, and DTS-HD Master Audio. The front panel has status LEDs for power (red), HDMI (green) and HDBT (green), as well as a USB port for service and firmware updates. The rear of the unit houses all other I/O connectivity including 4x RJ45 for HDBT connection, 3x 3.5mm jack sockets for IR input, output, and cascade, 2x 3-pin terminal blocks for RS232, and 2x HDMI connections for HDMI in and loop/monitor out.
Included accessories: 24V DC power supply, mounting brackets.
500426 1x4, 4K/60, HDMI
This 1x4 HDMI splitter is designed to distribute a single HDMI signal to up to four or eight HDMI displays. They support up to 4K, 60Hz (4:4:4), HDR, deep colour and HD audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X. They are HDCP 1.4 and 2.2 compliant and have eight/sixteen stage rotary switches to select the appropriate EDID mode. The rear panels house all I/O connectivity (with the exception of a front mounted USB connection for service on 500426). All connectivity is by way of HDMI connection with the exception of the 5V DC power supply.
Included accessories: 5V DC power supply, mounting brackets.
500427 1x8, 4K/60, HDMI
As 500426 but in 1x8 format.
