SONY ECM-77BML8 MICROPHONE Lapel, omni-directional, 8-pin Lemo connector, black

Stock code
91-391
Brand
Sony
Model number
  • ECM-77BML
  • ECM-77BML8
  • ECM-77
Colour
  • BlackBlack
SONY ECM-77BML8 MICROPHONE Lapel, omni-directional, 8-pin Lemo connector, black

Image may be provided for illustrative purposes only, please refer to the product description.

SONY ECM-77BML8 MICROPHONE Lapel, omni-directional, 8-pin Lemo connector, blackSONY ECM-77BML8 MICROPHONE Lapel, omni-directional, 8-pin Lemo connector, black

Order

VAT / Delivery
Discontinued. Please contact Technical Support for alternatives.
RoHS Compliant

SONY LAVALIER MICROPHONES

The Sony ECM series of lavalier (tie-clip) microphones are well established as some of the most popular lavalier types in use. Canford normally holds all the popular microphones and their wide range of accessories as stock items. See Sony Microphones - Accessories for further details of the accessories. Brochures with technical data are available on request.

ECM44

Budget omnidirectional lavalier, suitable for broadcast, video, and a variety of sound reinforcement applications, including lectures, worship, presentations and demonstrations. Diameter is 6.6mm diameter, length 14.5mm, capsule weight 2.0g. Frequency response 40-15000Hz. Supplied with single and dual horizontal clip, vertical clip, case and foam windshield giving excellent wind-noise reduction.

Versions
ECM44B Black finish and supplied connected to a pre-amplifier housed in a separate barrel, with balanced XLR output. Powered by internal battery (type AA, approximate battery life 5,000 hours). No phantom power option.
ECM44BC Terminated in Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply.
ECM44BMP Terminated in Sony 3.5mm locking jack for use with Sony radio-microphones.

ECM77

Ultra-miniature, 5.6mm diameter, 12.5mm length, weight 1.5g. Extended frequency response (40-20000Hz) is enabled by new developments in mechanical and electronic construction. Intended for TV and stage applications, where the highest quality inconspicuous microphone is required. Even when hidden inside costumes, the carefully-tailored frequency response ensures detailed voice pick-up. Omnidirectional polar pattern. Supplied with single and dual horizontal clip, vertical clip, case and foam windshield giving excellent wind-noise reduction.

Versions
ECM77B Terminated with a pre-amplifier housed in a separate barrel, with balanced XLR output. Powered by internal battery (type AA, approximate battery life 5,000 hours) or 12-48V phantom power. Colour: black.
ECM77B4F Terminated with Tiny-XLR 4-pin female connector for use with Shure UHF-R radio microphones. Colour: black.
ECM77BC Terminated with Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply. Colour: black.
ECM77BMP Terminated in Sony 3.5mm locking jack for use with Sony radio-microphones. Colour: black.
ECM77LM Terminated with Lemo 3-pin connector for use with Sennheiser radiomics
ECM77BML8 Terminated with Lemo 8-pin connector for use with Micron radiomics

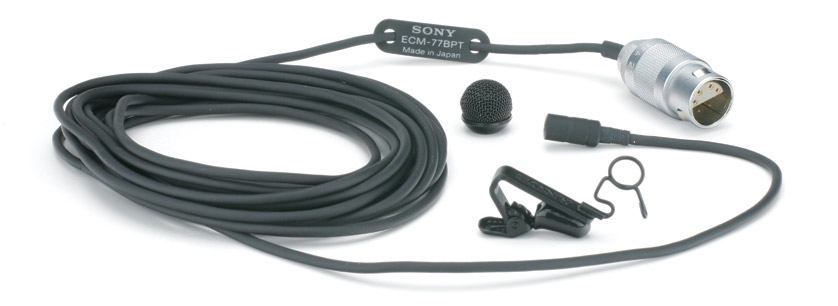

ECM77BPT Supplied with no connector for direct connection to radiomic transmitters.

Canford can supply ECM77BPT terminated for a variety of radio transmitters to special order. Please ask Technical Support for information. Colour: black.

ECM88Discontinued

An omnidirectional, miniature, full frequency-response (20-20000Hz) lavalier microphone with a special design which really does almost eliminate handling and popping noise. The sealed dual diaphragm also reduces susceptibility to sweat, make-up and rain. The small size (3.5mm diameter, 16.8mm length) and genuinely omni-directional response make this microphone suitable for broadcast, theatre and high-quality presentations. Impedance 100 ohms, dynamic range >99dB, S/N (A wtd) >68dB.

Versions
ECM88B Terminated with Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply. Supplied boxed with DC-78, SAD-V88B and SAD-W88BL clip microphone holders and foam windshield. Powered by internal battery (type AA, approximate battery life 6,000 hours) or 12-48V phantom power. Colour: black.
ECM88BC Terminated with Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply (not included). Supplied with SAD-H88B and SAD-V88B clip microphone holders and foam windshield. Colour: black.

ECM90

An ‘ultra-miniature’ lavalier microphone that measures 20.5mm in length and 3.5mm in diameter, and weighs only 1g. The omni-directional capsule is shielded to reduce risk of interference when in use with digital wireless systems, and the 1.2m fixed cable is either terminated with 4-pin Hirose or 3-pin Lemo connector (see versions below). Frequency response is 20Hz to 20kHz with a ‘flat’ curve providing ‘natural sound reproduction’.

Versions
ECM90BC Terminated in Hirose 4-pin connector for use with Sony radio-microphones or DC-78 power supply
ECM90LM Terminated in 3-pin Lemo connector for use with Sony Generation 3 DWX, Sennheiser, and Shure radiomics.
