DSM SERIES - DIGITAL AND ANALOGUE AUDIO FOIL SCREENED STRANDED CONDUCTOR MULTIPAIR CABLE
A moderately flexible individually foil screened pair cable intended for data applications, with an impedance of 100 ohms, but applicable as a multipurpose cable capable of handling AES/EBU digital and analogue audio over several hundred metres without significant degradation, together with RS422 data control, RS232 computer and even balanced analogue audio.
Technical Specification:
|
Conductors: | 7/0.2mm tinned copper wire |
|
Insulation: | Foamed polyethylene, according to Belden colour code (see Technical data at back of catalogue) |
|

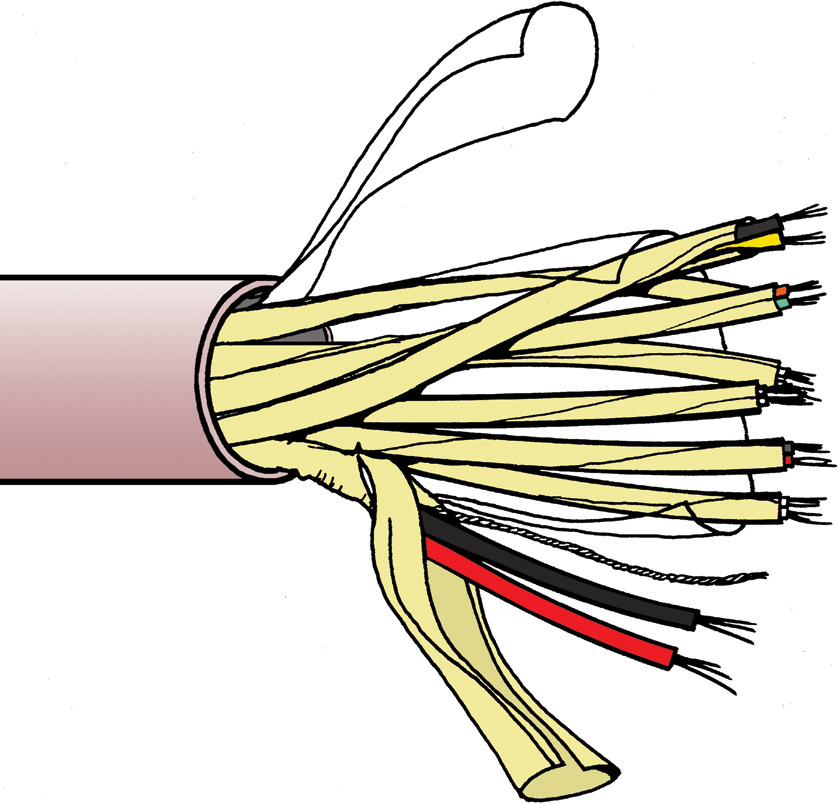

Lay-up: | Two insulated conductors twisted together with a 19/0.127mm tinned copper drain wire, and wrapped with an S-foil aluminium/polyester tape (aluminium side in). Screened pairs laid up together with overall polyester tape |
|
Overall jacket: | PVC, chrome grey |
|
Overall diameter: | DSM2 7.5mm, DSM4 10.2mm |
|
Impedance: | 100 ±10 ohms |
|
Conductor resistance: | 8.5 ohms/100m |
|
Capacitance: | 41 pF/m |
|
Velocity ratio: | 78% |
|
Weight: | DSM2 7.5kg/100m, DSM4 10.1kg/100m |
|
Reel length: | 500 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
