FLEXIBLE MAINS 3 core 2.5 sq.mm, Orange Arctic PVC

Stock code
33-354
Colour
  • OrangeOrange
FLEXIBLE MAINS 3 core 2.5 sq.mm, Orange Arctic PVC

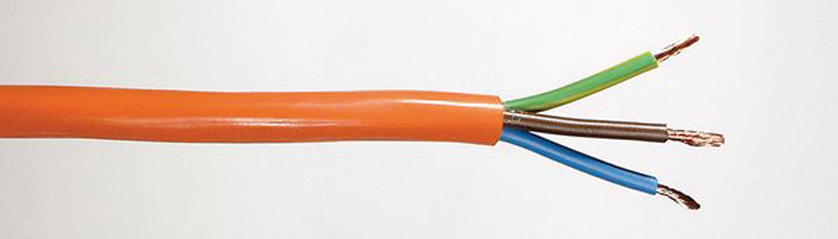

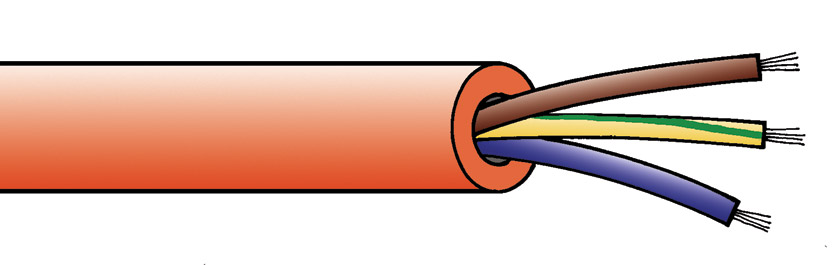

Image may be provided for illustrative purposes only, please refer to the product description.

FLEXIBLE MAINS 3 core 2.5 sq.mm, Orange Arctic PVCFLEXIBLE MAINS 3 core 2.5 sq.mm, Orange Arctic PVC

Order

VAT / Delivery
$2.74
per metre (ex. VAT)
100+ $2.19
500+ $2.16
1,000+ $2.14
1036 in stock Need more?
? 7 cable oddments available
RoHS Compliant

FLEXIBLE AC MAINS POWER CABLES

A range of flexible mains cables with stranded conductors, all with either PVC, Arctic PVC or TRS (heat resisting rubber) jackets. Arctic grade PVC remains flexible at temperatures down to –20° C; at normal temperatures cables are very limp and flexible. Core colours are brown and blue, plus green/yellow in 3-core types. Most types conform to BS6500:1994 and meet relevant European specifications.

PVC types
Stock No. Conductors Cross Sectional Resistance Jacket Jacket Jacket Weight
code of cores Area (mm²) (Ω/km) ≤ material colour OD (mm) (kg/100m)
33-220 2 24/0.2mm 0.75 26 PVC Black 3.3 x 5.4 (oval) 3.5
33-240 2 30/0.25mm 1.5 13.3 Arctic PVC Black 7.4 8.3
33-310 3 16/0.2mm 0.5 39 PVC Black 5.3 4.6
33-320 3 24/0.2mm 0.75 26 Arctic PVC Black 6.7 6.8
33-324 3 24/0.2mm 0.75 26 Arctic PVC Orange 6.7 6.8
33-360 3 32/0.2mm 1 19.5 PVC Black 6.75 7.4
33-363 3 32/0.2mm 1 19.5 Arctic PVC Orange 7.1 7.8
33-340 3 30/0.25mm 1.5 13.3 Arctic PVC Black 8.2 10.6
33-344 3 30/0.25mm 1.5 13.3 Arctic PVC Orange 8.2 10.6
33-350 3 50/0.25mm 2.5 7.98 PVC Black 10.1 16.3
33-354 3 50/0.25mm 2.5 7.98 Arctic PVC Orange 10.1 16.2
33-384 3 56/0.3mm 4 4.95 Arctic PVC Black 11.6 23.2
TRS types
Stock No. Conductors Cross Sectional Jacket Jacket Jacket Jacket Weight
code of cores Area (mm²) material colour OD (mm max.) OD (mm min.) (kg/100m)
33-341 3 30/0.25mm 1.5 TRS Black 11.9 9.2 13.4
33-351 3 50/0.25mm 2.5 TRS Black 14.0 10.9 19.5
33-371 3 84/0.3mm 6 TRS Black 18.0 14.1 34.6

All types on 100 metre reels. Cut lengths also supplied in any multiple of 1 metre.
