SCHURTER IEC MAINS CONNECTOR, C14 type, male, cable

Stock code
42-054
Brand
Schurter
Model number
  • 4732
SCHURTER IEC MAINS CONNECTOR, C14 type, male, cable
SCHURTER IEC MAINS CONNECTOR, C14 type, male, cableSCHURTER IEC MAINS CONNECTOR, C14 type, male, cableSCHURTER IEC MAINS CONNECTOR, C14 type, male, cable

SCHURTER IEC 60320 (CEE22) AC MAINS POWER CONNECTORS

AC mains power connectors, non keyed (cold condition), 10 amp 250VAC 50/60Hz rated, meeting IEC 60320 Approvals: IEC/EN, UL, AS/NZS and CSA.

Cable Types

Rewireable male and female cable types with professional screw terminals (wire receptacle hole and cross clamp-screw). Wire size up to 3x1mm sq. (18 AWG).

Cable type, female

Female (mains outlet) C13 type, cable connector. Rear cable entry.

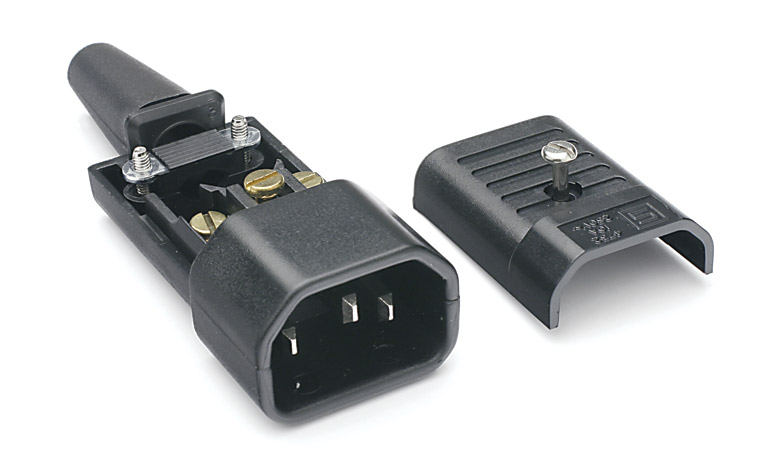

Cable type, male

Male (mains inlet) C14 type, cable connector. Rear cable entry.

Panel Types

Flange type, male

Male (mains inlet) C14 two hole type. 6.3mm Quick connect 'Faston' spade connection.
Panel cutout 27.5 x 20.0mm min, screw hole centres 40.00mm, 3.5mm diameter.

Snap-in type, male

Male (mains inlet) C14 type. Suitable for 1.5mm panel thickness. 6.3mm Quick connect 'Faston' spade connection.
Panel cutout 27.5 +0.2/-0.0 x 19.8mm +0.2/-0.0.

Snap-in type, female

Female (mains outlet) C13 type. Unshuttered. Suitable for use with 1.5mm panel thickness. 3.5mm solder terminals. Panel cutout 32.5 x 24.8mm.

Optional accessories: Moulded PVC insulating cover, stock code 42-159 and 42-148.

Alternatives

Right angled cable types, fused inlet and snap-in types for other panel thicknesses are available to special order, please contact Sales.

Note: sometimes referred to as CEE22, this was the former standard before being eventually incorporated into IEC 60320.
