CANFORD CABLE DRUM CD4600

Stock code
35-5051
Brand
Canford
Model number
  • CD4600
GTIN
5056704796492
CANFORD CABLE DRUM CD4600
CANFORD CABLE DRUM CD4600

Order

VAT / Delivery
$981.19
each (ex. VAT)
10+ $956.30
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us

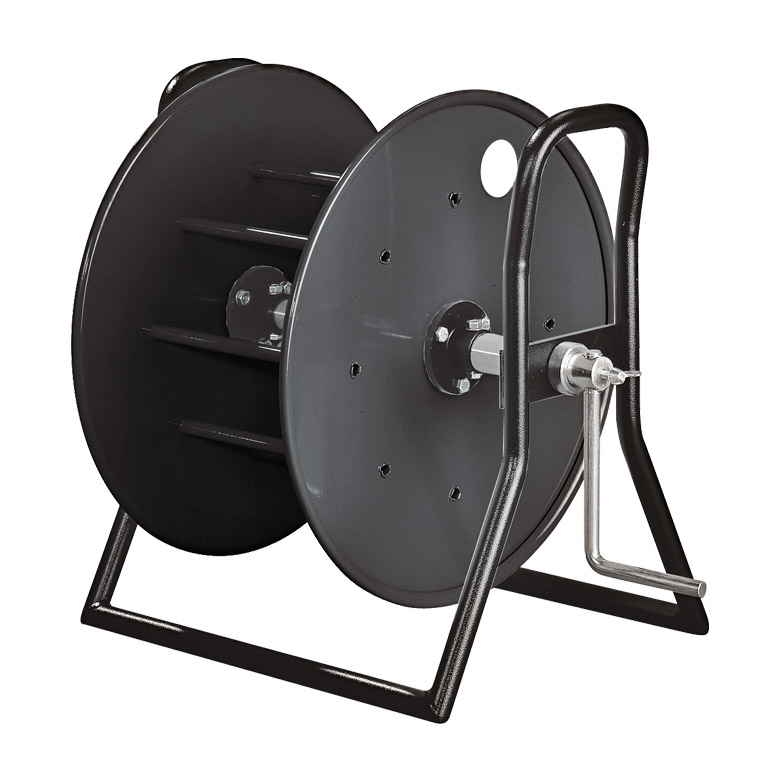

CANFORD CABLE DRUMS - Steel drum, high capacity

This range of robust cable-drums all have steel drums, with steel tube frames incorporating two carrying handles. All have a friction drum-brake incorporated into the frame to prevent movement in transit. The drums are available with two different styles of side flange - plain or with cable tail supports. The core of the drum is formed from a number of steel bars welded between the flanges.

‘Plain’ types have a solid steel flange. ‘Cable tail’ types have an open hub plus four brackets on the flange face to enable the cable tail to be brought out from the hub of the drum at a gentle angle (important for coaxial and essential for fibre cables) and coiled and secured around the brackets.

Note that this series of drums are not stackable. For stackable high capacity drums, see Canford cable drums - Steel drum, high capacity, stackable.

Trolleys are available for this series of drums - see Canford cable drum trolleys.

Dimensions

Code Model Flange Hub Hub Flange style Weight
diameter diameter width (kg)
35-5051 CD4600 460mm 280mm 250mm Plain 15.50
35-5052 CD4601 460mm 280mm 350mm Plain 16.60
35-5053 CD4602 460mm 280mm 500mm Plain 18.60
35-5054 CD4600CTS 460mm 280mm 250mm Cable tail support 15.50
35-5055 CD4601CTS 460mm 280mm 350mm Cable tail support 16.60
35-5056 CD4602CTS 460mm 280mm 500mm Cable tail support 18.60

Capacities (tight pack)

Code Model 6.5mm cable 12.5mm cable 15.9mm cable
(HST, SDV-L) (FSM12, PSF1/9) (FSJ8, FSM24)
35-5051 CD4600 550m 153m 79m
35-5052 CD4601 774m 218m 118m
35-5053 CD4602 1116m 315m 169m
35-5054 CD4600CTS 550m 153m 79m
35-5055 CD4601CTS 774m 218m 118m
35-5056 CD4602CTS 1116m 315m 169m

For help finding a cable drum to meet your requirements see the Cable Drum Capacity Calculator.

Ordering Note

All figures given are based upon a theoretical ‘tight pack’ and do not take into account any maximum weight loadings for drums being exceeded. It is recommended that an allowance of up to 30% be made to accommodate loose winding. A lower percentage could be used if the crew are known to always wind the drums neatly!
