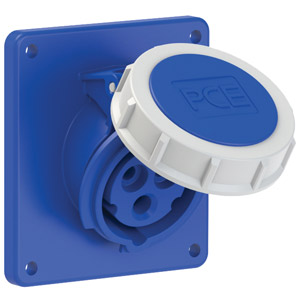

PCE 4132-6 WATERTIGHT 16A PANEL MOUNTING SOCKET, Angled, IP67, blue/grey

Stock code
42-776
Brand
PCE
Model number
  • 4132-6
Colour
  • BlueBlue
  • GreyGrey
PCE 4132-6 WATERTIGHT 16A PANEL MOUNTING SOCKET, Angled, IP67, blue/grey
PCE 4132-6 WATERTIGHT 16A PANEL MOUNTING SOCKET, Angled, IP67, blue/grey

PCE INDUSTRIAL AC MAINS POWER CONNECTORS

Industrial plugs, sockets and appliance inlets from PCE designed to meet BS EN 60309 - 1:1999, BS EN 60309 - 2:1999 standards.

Available in splashproof IP44 or watertight IP67 variants the standard blue/grey connector housing is manufactured from Polycaprolactam (PA6) with brass contact pins and are rated 220 - 240V AC, 16 amp, 32 amp or 63 amp, 2-pole plus earth.

For connectors with black housing see PCE INDUSTRIAL AC MAINS POWER CONNECTORS - Midnight range.

Model Rating Mounting Type Straight/angled IP rating
013-6 16A Cable Plug Straight IP44
0132-6 16A Cable Plug Straight IP67
613-6 16A Panel Appliance inlet Straight IP44
6132-6 16A Panel Appliance inlet Straight IP67
513-6 16A Wall Appliance inlet Straight IP44
5132-6K 16A Wall Appliance inlet Straight IP67
77713-6 16A Panel Appliance inlet Angled IP44
777132-6 16A Panel Appliance inlet Angled IP67
213-6 16A Cable Socket Straight IP44
2132-6 16A Cable Socket Straight IP67
113-6 16A Wall Socket Straight IP44
1132-6 16A Wall Socket Straight IP67
313-6 16A Panel Socket Straight IP44
3132-6 16A Panel Socket Straight IP67
413-6 16A Panel Socket Angled IP44
4132-6 16A Panel Socket Angled IP67
023-6 32A Cable Plug Straight IP44
0232-6 32A Cable Plug Straight IP67
623-6 32A Panel Appliance inlet Straight IP44
6232-6 32A Panel Appliance inlet Straight IP67
523-6 32A Wall Appliance inlet Straight IP44
5232-6 32A Wall Appliance inlet Straight IP67
77723-6 32A Panel Appliance inlet Angled IP44
777232-6 32A Panel Appliance inlet Angled IP67
223-6 32A Cable Socket Straight IP44
2232-6 32A Cable Socket Straight IP67
123-6 32A Wall Socket Straight IP44
1232-6 32A Wall Socket Straight IP67
323-6 32A Panel Socket Straight IP44
3232-6 32A Panel Socket Straight IP67
423-6 32A Panel Socket Angled IP44
4232-6 32A Panel Socket Angled IP67
033-6 63A Cable Plug Straight IP67
633-6 63A Panel Appliance inlet Straight IP67
533-6 63A Wall Appliance inlet Straight IP67
733-6 63A Panel Appliance inlet Angled IP67
2335-6 63A Cable Socket Straight IP67
1335-6 63A Wall Socket Straight IP67
3335-6 63A Panel Socket Straight IP67
4335-6 63A Panel Socket Angled IP67
