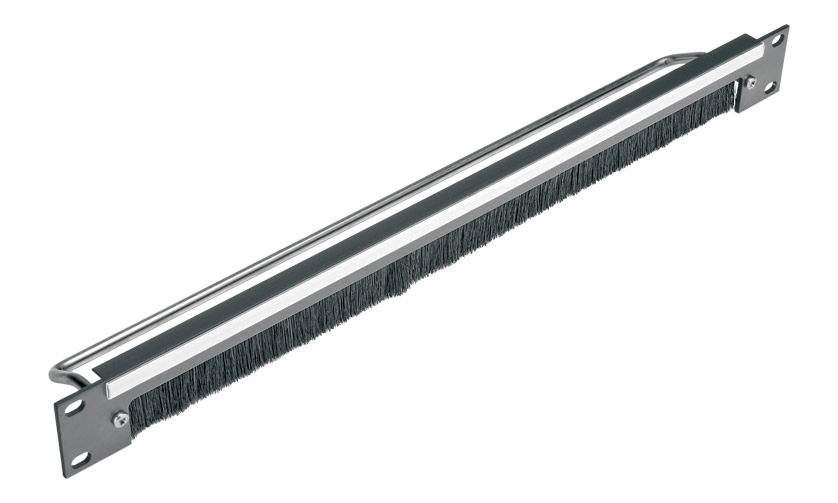

A range of blanking panels with a slotted cut-out allowing system cables and patch cords to be easily accessed at the front of the rack. The cut-out measuring 410mm x 25mm, is masked by a ‘brush’ strip to maintain rack air-cooling efficiency and give a tidy appearance to the opening.
Manufactured from a lightweight but extremely rigid aluminium extrusion, panels are offered with either a simple brush strip or with a designation strip and lacing bar, allowing cables to be secured to avoid them dropping back in to the rack. The lacing bar is supplied unassembled and can be fitted to the front or rear of the panel. The snap-on cover designation-strip holder permits the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available.
Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.
Available finished in Dawn Grey (BS4800-10A03), Dark Grey or Black.
Application note:
If a larger aperture is required, two panels may be mounted adjacent to each other with the lower one inverted giving an opening of 410mm x 50mm.
Manufactured by Canford.
