NUT DRIVER M3 nut, standard

Stock code
55-612
NUT DRIVER M3 nut, standard
NUT DRIVER M3 nut, standard

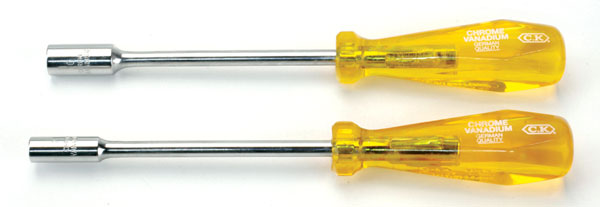

NUT DRIVERS

M3 and M4 nuts

Available with standard or reduced diameter heads. The reduced head versions are manufactured specially for holding M3 nuts when Neutrik and similar connectors are being fitted in densely packed panels, where there is often inadequate clearance to use a standard head tool.

Knurled nuts

For knurled and "castle" ("castellated") nuts with external diameter 8mm and internal 6mm, these have two lugs to engage (to some degree) with the knurled surface or with notches in the nut. They have a 2.5mm centre probe to held them centrally while tightening. Typical applications are some types of 3.5mm jack sockets.

Castle nuts

For "castle" ("castellated") nuts on connectors where the body extends forwards. These nut drivers resemble miniature "box spanners" and fit over the connector body, with two lugs to engage in the fixing nut. They have a 6.35mm hex drive fitting. 55-8195 suits DIN1.0/2.3 connectors. The measurements denote internal depth, external diameter and width of lugs.
