BELDEN 4855R CABLE Violet

Stock code
60-4855R-7
Brand
Belden
Model number
  • 4855R
Colour
  • VioletViolet
BELDEN 4855R CABLE Violet
BELDEN 4855R CABLE Violet

Order

VAT / Delivery
$7.57
per metre (ex. VAT)
100+ $6.05
500+ $5.91
1,000+ $5.69
Backorders must be multiples of 305 units. Ordered on demand, available in Call.
RoHS Compliant

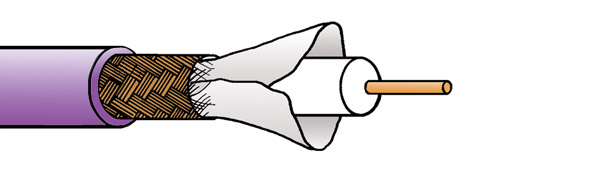

BELDEN 4855R - UHDTV DIGITAL VIDEO CABLE

Compact size, coaxial, 75 ohm cable specifically for 4K 12G video signals with PVC outer jacket.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: X (with Canare, Canford Connect, Coax Connectors and Neutrik exceptions)
Inner conductor: (23AWG) 0.58mm silver plated copper
Dielectric: Foam polyethylene, 2.59mm O.D.
Screen 1: Aluminium/polypropylene/aluminium tape
Screen 2: Tinned copper braid, optical coverage 95%
Construction: Coaxial cable
Jacket: PVC, black, violet and blue
Overall diameter: 4.04mm
Minimum bend radius: 40.6mm
Impedance: 75 ohms
Capacitance: 53.5pF/m nominal
Attenuation: MHz 10 100 180 750 1500 3000 6000 12000
dB/100m 3.9 11.1 14.5 30.4 43.3 62.3 90.9 135.1
Weight: 2.53kg/100m
Reel length: 305m
Cut lengths: Black: Available in any multiple of 1 metre. Blue and violet: 305m reels.
Suitable crimp connectors outlined below.

BNC Male - 12G

Brand Code Description
Canford Connect 48-6028 CANFORD CONNECT CCBNCB BNC 12G, crimp, 75 ohm, Belden 1855A, 4855R
COAX Connectors 48-5076 COAX CONNS 10-005-W126-EF1 BNC 12G UHD Male cable, crimp, 75 ohm, black, Belden 1855A (pack of 100)
Neutrik 48-6371 NEUTRIK NBNC75BDD6X BNC 12G UHD Male cable, rear twist, Belden 1855A 4855R

BNC Male - 3G

Brand Code Description
Canare 48-460 CANARE BCP-A25F BNC Male cable, Belden 1855A
Canare 48-461 CANARE BCP-A25F BNC Male cable, Belden 1855A (pack of 100)
COAX Connectors 48-5046 COAX CONNS 10-005-B36-EF1 BNC 3G HD Male cable, crimp, 75 ohm, Belden 1855A
COAX Connectors 48-5056 COAX CONNS 10-005-B36-EF1 BNC 3G HD Male cable, crimp, 75 ohm, Belden 1855A (pack of 100)
Neutrik 48-6301 NEUTRIK NBNC75BDD6 BNC 3G Male cable, rear twist, Belden 1855A
Telegartner 48-787 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group X
Telegartner 48-777 TELEGARTNER BNC 3G HD Male cable, crimp, 75 ohm, group X (pack of 100)

BNC Male - HD-SDI - 1.5G

Brand Code Description
Telegartner 48-713 TELEGARTNER BNC Male cable, crimp, 75 ohm, group X
Telegartner 48-773 TELEGARTNER BNC Male cable, crimp, 75 ohm, group X (pack of 100)

BNC Female - HD-SDI - 1.5G

Brand Code Description
Telegartner 48-759 TELEGARTNER BNC Female cable, crimp, 75 ohm, group X

Micro BNC Male - 12G

Brand Code Description
COAX Connectors 48-5023 COAX CONNS 67-005-B66-EF1 MICRO BNC 12G UHD Male cable, crimp, Belden 1855A
COAX Connectors 48-5033 COAX CONNS 67-005-B66-EF1 MICRO BNC 12G UHD Male cable, crimp, Belden 1855A (pack of 100)

DIN 1.0/2.3 Male - 12G

Brand Code Description
COAX Connectors 48-5003 COAX CONNS 52-005-B6-EF DIN 1.0/2.3 12G HD Male cable, crimp, Belden 1855A
COAX Connectors 48-5013 COAX CONNS 52-005-B6-EF DIN 1.0/2.3 12G HD Male cable, crimp, Belden 1855A (pack of 100)

F Connector

Brand Code Description
Telegartner 48-8281 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group X
Telegartner 48-8291 TELEGARTNER F CONNECTOR Male cable, crimp, 75 ohm, group X (pack of 100)

Ordering note: Other colours available to special order, contact sales for further details.
