Small-diaphragm microphones including matched stereo pairs, single point stereo and mono types with various powering options. Intended for a variety of applications including location recording of choirs and orchestras and as 'spot' microphones for solo instruments, live recording of backline amplification and acoustic instruments and in the theatre.
This matched pair of cardioid condenser microphones has been designed by recording engineer and producer Tony Faulkner for use in recording and live applications. The included stereo bar aids for a natural and detailed stereo image pickup. Power via +48V phantom power.
Included accessories: 2x clips, 1x stereo bar, 2x windshields, 1x handbook.
A general-purpose cardioid condenser microphone featuring a 3/4 inch diaphragm, suitable for a variety of music recording or live applications. Can be powered by either 48V, 24V, 12V phantom power or internal PP3 battery. On/off switch and battery status LED.
Included accessories: RM3 stand mount, WS3 windshield.
Optional accessories: NTSM3, NTSM4, NTSM5 suspension mounts.
Single-point stereo microphone featuring two 1/2 inch, externally- polarised capsules mounted at 90 degrees, avoiding the need for time-consuming and complicated stereo microphone positioning. Suitable for location recording of both music and speech. The NT4 delivers a smooth response over a wide frequency range. Powered from either an internal PP3 battery or 48V, 24V, 12V phantom power. XLR-5 connector.
Included accessories: RM3 stand mount, WS4 foam windshield and two stereo cables; XLR-5 to dual XLR3, 0.15 metre and XLR-5 to 3.5mm 3-pole jack, 2.9 metre.
Optional accessories: NTSM3, NTSM4, NTSM5 suspension mounts.
A cardioid studio condenser microphone with 1/2 inch diaphragm, delivering a smooth response over a wide frequency range. Suitable for a variety of applications including stereo location recording or spot microphones for orchestral work. Available singly or as a matched stereo pair. XLR-3 connector, 48V, 24V phantom powering.
Included accessories: RM5 stand mount, WS5 windshield.
Optional accessories: NTSM3, NTSM4, NTSM5 suspension mounts. NT45-O omnidirectional capsule.
Rode M5 - Matched pair
Matching pair of cardioid condenser microphones featuring 1/2 inch, gold-plated capsules. Designed for instruments on stage or in the studio. Can be used individually or as a stereo array. The M5 matched pair of mics have no more than 1dB of sensitivity between the two, a frequency range of 20Hz to 20kHz, and a maximum SPL of 140dB. Can be powered by either +24V or +48V phantom power from an external source such as a mixing desk or interface. 3-pin XLR connector.
Included accessories: 2x WS5 windshields, 2x RM5 stand mounts.
Optional accessories: NTSM3, NTSM4, or NTSM5 suspension mounts, WS8 furry windshield.
The NT55 is supplied with the same cardioid capsule as the NT5, is similar in performance, and is intended for similar applications. Two switches, however, provide 0dB/-10dB/-20dB attenuation and a variable high-pass filter switching from flat to 75Hz and 150Hz roll-off frequencies. In addition to the cardioid capsule, an NT45-O omnidirectional capsule is included. The NT55 is available singly or as a matched stereo pair. XLR-3 connector, 48V phantom powering.
Included accessories: RM5 stand mount, NT45-O omnidirectional capsule.
Optional accessories: NTSM3, NTSM4, NTSM5 suspension mounts, WS5 foam windshield.
Discontinued
This is a compact condenser microphone, with a remote pre-amplifier, specifically designed for difficult mounting applications. Although relevant to instrument applications, the NT6 is suited to many applications where an unobtrusive microphone is required. For example, the small form-factor makes it suitable for use in a mid-side (M/S) stereo array, in combination with a figure-8 microphone such as the Rode NT2-A, NT2000 or K2.
With a 1/2 inch cardioid condenser capsule, the NT6 head is 20mm in diameter, and 45mm long and weighs only 42gm. It is is connected to the body via the included 3 metre shielded, Kevlar-reinforced cable; an all-metal, multi-position mounting-ring provides 180 degrees of vertical rotation. The preamplifier has switches for an 80 Hz high-pass filter and a -10dB attenuator. XLR-3 connector, 48V, 24V phantom powering.
Included accessories: Swivel mount, RM5 stand mount, ZP1 pouch, SANT6-DC 3m mini-XLR to mini-XLR link cable, WS5 foam windshield.
Optional accessories: NT45-O omnidirectional capsule.
Accessories
NTSM5 Elastic suspension mounts
NTSM3 has a 'cold' accessory-shoe fitting with integrated 3/8 inch thread. NTSM4 has a standard 5/8 inch thread and is supplied with a 3/8 inch adapter. NTSM5 has a dummy microphone fitting suitable for mounting in the microphone clamp holder found on many broadcast cameras including PD170 and FX1.

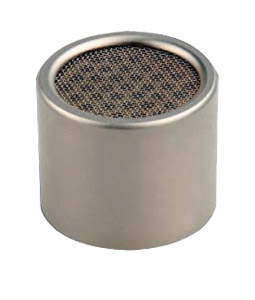

NT45-O Interchangeable Omnidirectional Capsule
The NT45-O is an interchangeable, omni capsule for the NT5, NT55 or NT6 microphones.
