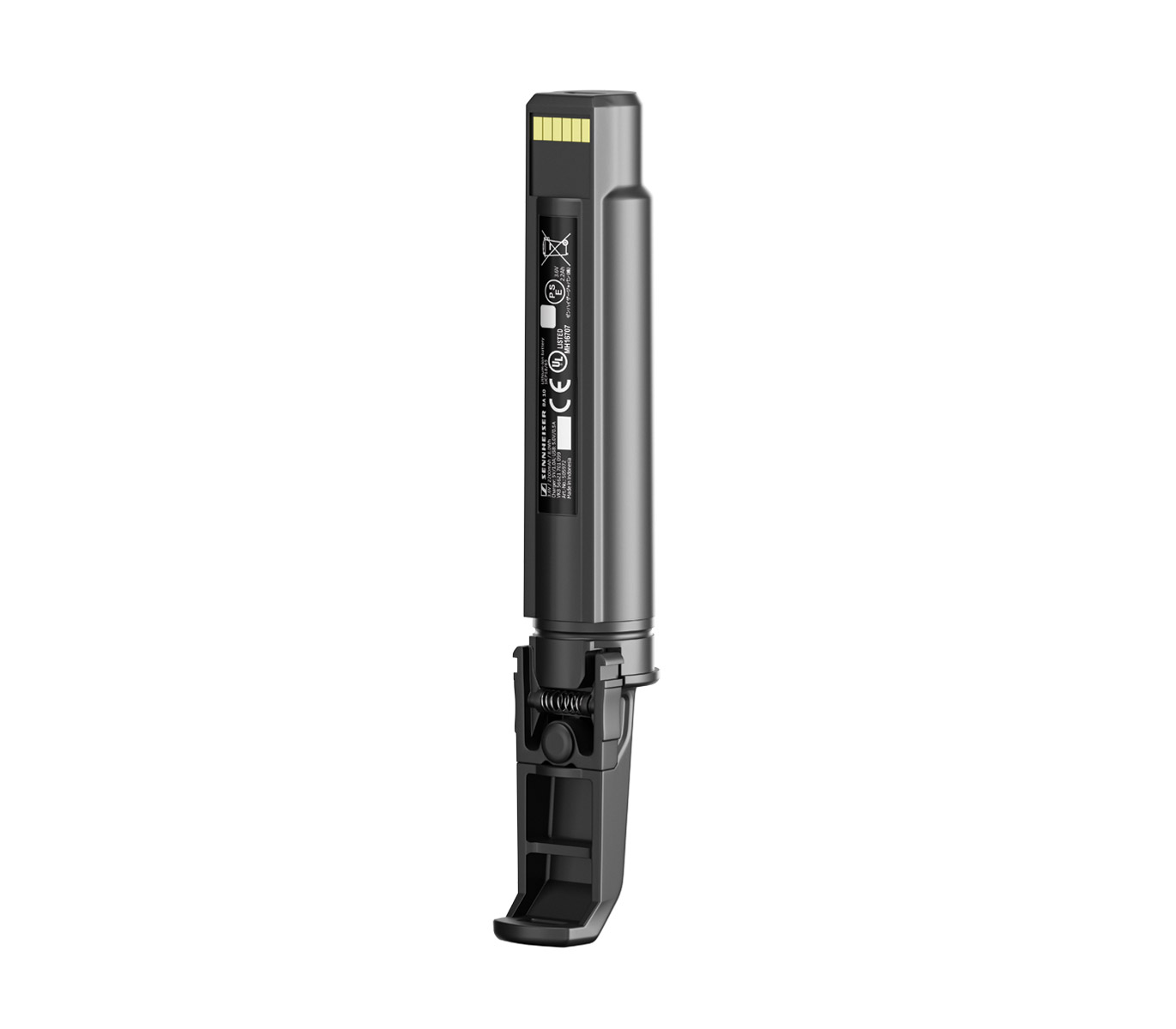

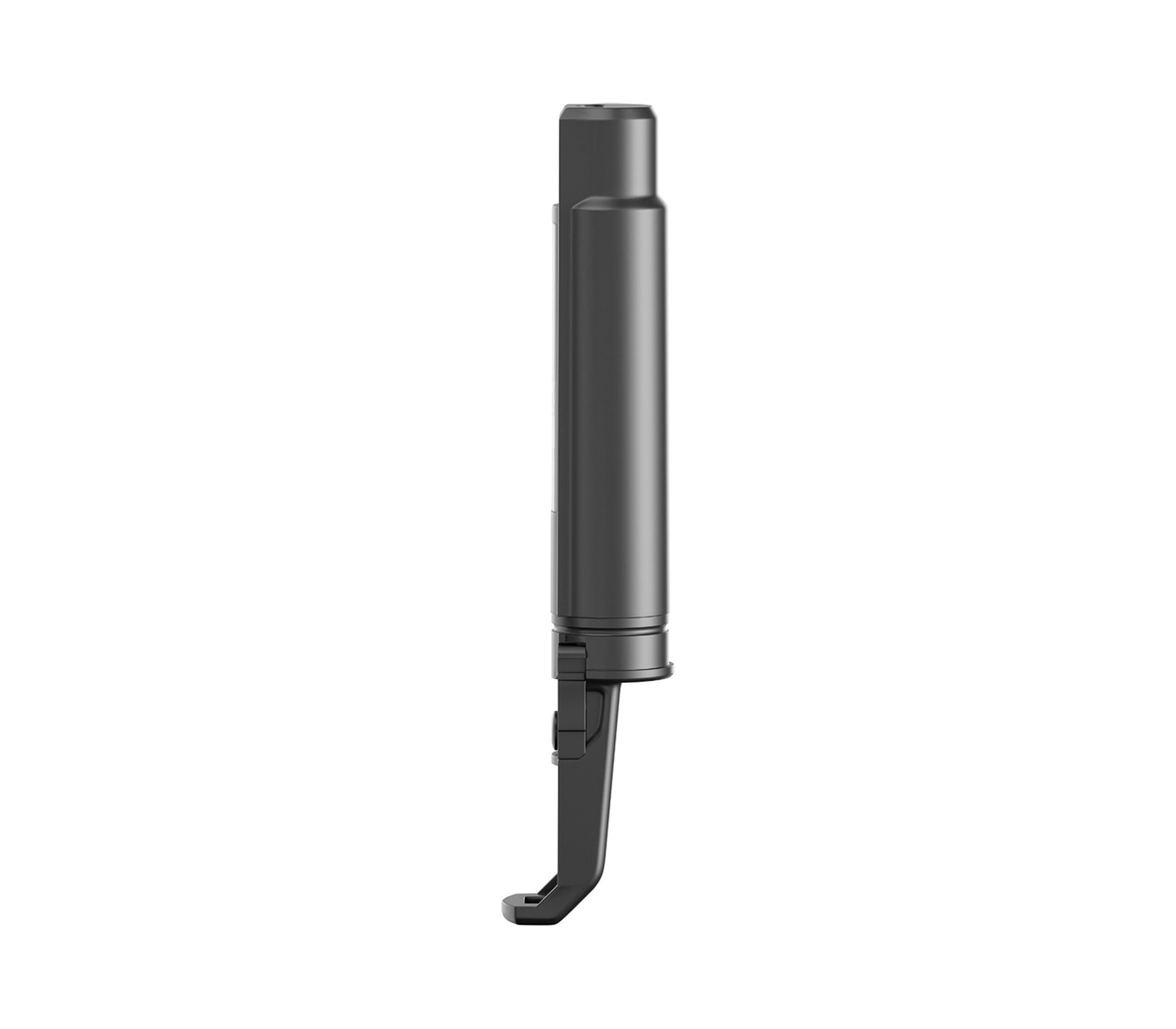

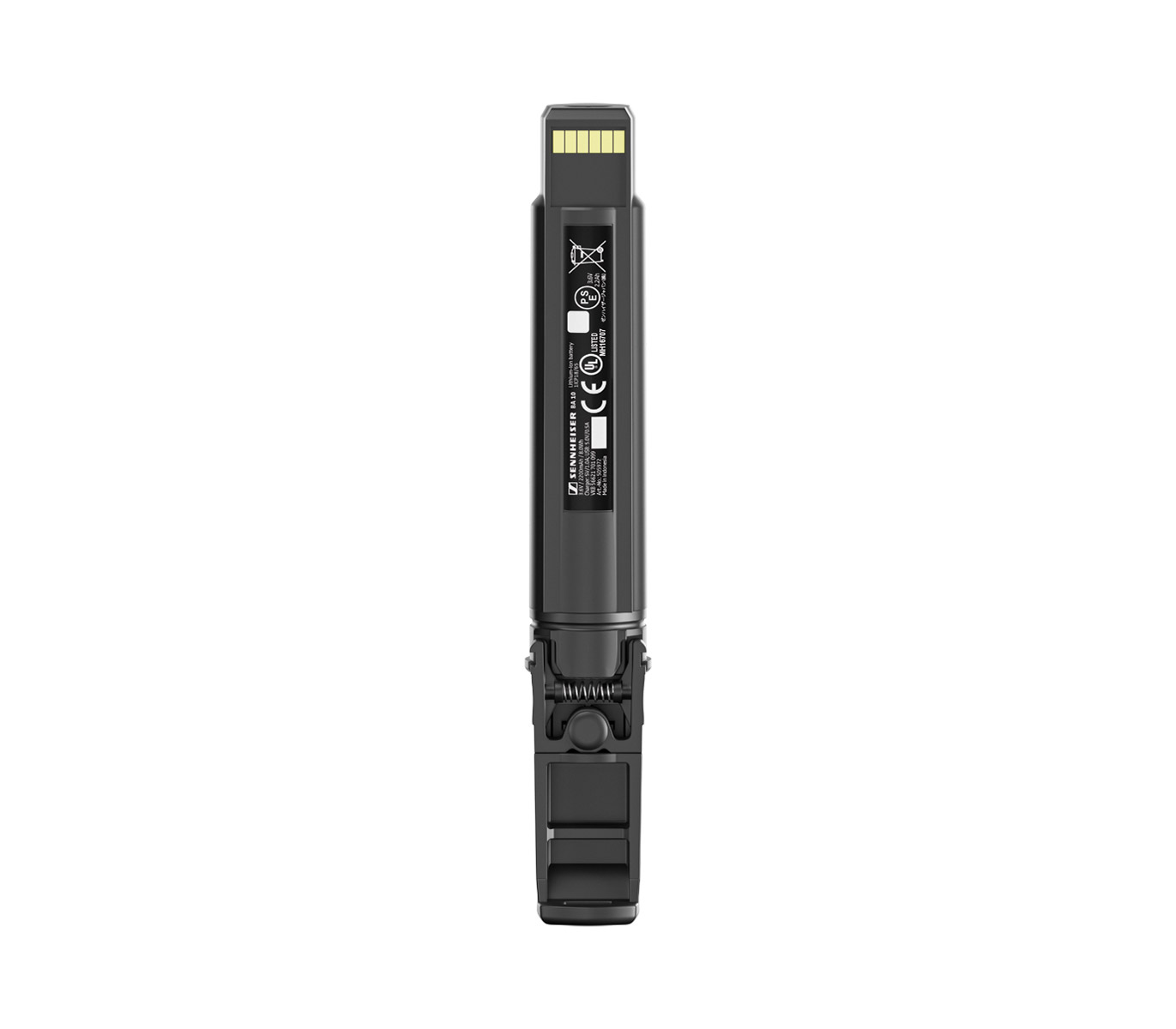

SENNHEISER BA10 BATTERY Rechargeable, for SL Handheld

SL RACK Receiver, 1-channel

A SpeechLine series receiver that is designed to fit a half 19-inch, 1U space and be compatible with a range of SpeechLine transmitters. Operating within the 1.9GHz frequency band, the receiver has functionality including 256bit AES encryption, automatic sound profiling, frequency and interference management automation, and network control. Network control is via Sennheiser Control Cockpit, however system setting and status is also accessible via AMX or Crestron media control protocol. A 7-band graphic equalizer allows tailoring of sound output, however sound profiles including ‘female voice’, ‘male voice’, ‘instrument’ and ‘media’ allow quick setup.

The front facing panel of the receiver houses power button, ‘pair’ button for easy connection to compatible transmitter, and jog/push wheel for menu navigation and selection. The menus and setting are displayed on the OLED screen including associated transmitter battery status, signal strength, audio level, and name. A green LED positioned to the right of the front panel signifies power on status. The rear facing panel of the receiver houses 12V DC power input connector, unbalanced audio output on dual RCA (phono) plugs, balanced audio output on 3-pin XLR connector, and LAN connection via RJ45. Two removable antenna can be connected via reverse SMA connectors.

Frequency response: 20 – 20,000Hz. Dynamic range: Greater than 120dB(A), RF sensitivity: Less than -90dBm. Sampling rates: 24bit/48kHz. Dimensions (WxDxH): 212 x 168 x 43mm. Weight: 828g.

SL MCR 2 Receiver, 2-channel

SpeechLine MCR 2 has been designed as a receiver to be mounted and controlled remotely. It can be mounted directly to a wall or ceiling via a mounting plate, and operated via a single network cable using Dante – to which there are two ports. Power can also be provided via PoE making the SL MCR 2 an unobtrusive addition to a multichannel wireless system. All controls, audio setup, and frequency management is made via Sennheiser Control Cockpit software. MCR 2 also features automatic gain control, frequency management, and mix output whereby all audio channels can be automatically mixed and summed to a single output signal via 3-pin Phoenix style connector.

Included accessories: Wall mounting plate, drilling template, and quick quide.

Frequency response: 20 – 20,000Hz. Latency: 23ms. Dimensions (WxHxD): 180 x 180 x 45mm, including wallmount. Weight: 650g, with wallmount; 560g, without wallmount.

SL MCR 4 Receiver, 4-channel

This has the same functionality of the SL MCR 2, however it is doubled in receiving channels to a maximum of four.

SL HANDHELD 865

A SpeechLine series handheld transmitter fitted with MME 865 supercardioid condenser capsule. This handheld wireless transmitter can be purchased separately for a bespoke system or add-on, however it is included in the SL HANDHELD SET as standard.

The silver coloured microphone has been ‘optimised for speech’ in presentation, lecture, or conferencing situations. No settings require adjusting on the microphone as bidirectional communication between transmitter and receiver ensures adjustments made on the receiver are automatically received on the transmitter. A display on the microphone allows the user to see name, battery status and reception quality from the receiver, whilst a sliding switch allows the user to mute the microphone with ease.

Operational for up to 15hours on a single charge, the included BA10 lithium-ion battery has external charging contacts for use with optional CHG 2 or CHG 4 chargers. A USB socket is also provided for direct charging without dock.

Dimensions (LxDia): 215 x 40mm. Weight: 262g.

SL BODYPACK

This bodypack has the performance attributes of the SL Handheld 865, however as a bodypack transmitter it is designed for use with MKE 1-ew and MKE 1-ew-3 lavalier or SL headset microphone. Other Sennheiser microphones with 3.5mm locking jack termination can also be used.

Using the BA30, SL Bodypack can be operational for up to 15hours, and charging can be via CHG 2 or CHG 4 docks, or via USB socket.

Dimensions (HxWxD): 100 x 65 x 24mm. Weight: 88g

SL BOUNDARY 114-S

A SpeechLine series boundary microphone transmitter designed to be table or wall mounted in lecture theatre, boardroom, or conferencing suite. The microphone has a half-cardioid pickup pattern and frequency response of 40Hz to 20kHz for legibility of voice reproduction. A button located in the centre of the microphone can be pre-programmed as PTT, PTM, toggle on/off, or permanently on, with a surrounding LED illustrating the microphone’s status.

A typical operating time of 13hours is aided by battery life LED indicators, however an operator can also monitor the status remotely via Sennheiser Control Cockpit. As well as charging directly via USB connection, the SL Boundary 114-S can be charged wirelessly via the option CNG 2W desktop charger.

Dimensions (DxWxH): 114 x 85.3 x 30.8mm. Weight: 208g, without battery.

SL TABLESTAND 133-S

Compatible with all Sennheiser gooseneck microphones that utilise a 3-pin XLR connector, SL Tablestand 133-S is a desktop base for conferencing and lectern microphone applications. A mute button with 2-colour LED ring is positioned on the front panel of the microphone for accessibility, whilst LEDs positioned to the rear of the microphone base provide feedback on the battery status.

Up to 11hours of continuous use is available on a single charge, which can be via direct USB input, or via the optional CNG 2W wireless charging unit. A BA40 is included with the tablestand, and is also available as an optional spare.

Frequency response: 75 – 20,000Hz. Maximum input level: 1.7V RMS. Dimensions (DxWxH): 166.7 x 120.2 x 47.9mm. Weight: 660g, without battery.

SL TABLESTAND 153-S

This tablestand has all the functionality of the SL Tablestand 133-S however the microphone input is via 5-pin XLR as opposed to 3-pin.

SL HANDHELD SET

A SpeechLine handheld wireless system comprising of SL Rack Receiver, SL Handheld, MME 865 capsule, BA10 rechargeable battery, case or GA4 rackmount kit.

SL HEADMIC SET

A SpeechLine headworn wireless system comprising of SL Rack Receiver, SL Headmic, SL Bodypack, BA30 rechargeable battery, case or GA4 rackmount kit.

SL LAVALIER SET

A SpeechLine lavalier wireless system comprising of SL Rack Receiver, MKE 1 lavalier, SL Bodypack, BA30 rechargeable battery, case or GA4 rackmount kit.

SL BOUNDARY SET

A SpeechLine boundary wireless system comprising of SL Rack Receiver, SL Boundary 114-S, USB cable, BA40 battery pack, GA4 rack kit.

SL TS 133 GN SET

A SpeechLine gooseneck wireless system for desktop use and comprising of SL Rack Receiver, SL Tablestand 133-S, MEG 14-40 B gooseneck microphone, BA40 accupack, GA4 rackmount kit.

SL TS 153 GN-L SET

A SpeechLine gooseneck wireless system for desktop use and comprising of SL Rack Receiver, SL Tablestand 153-S, MEG 14-40-L-II B gooseneck microphone, BA40 accupack, GA4 rackmount kit.
