Discontinued

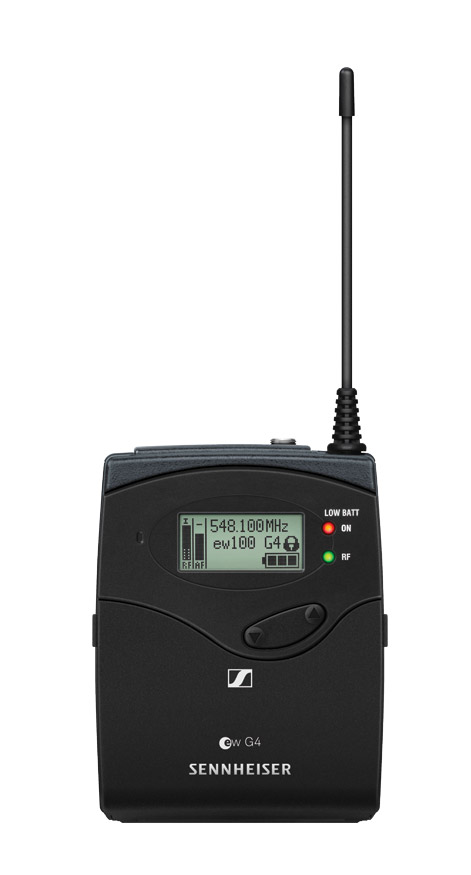

Housed in the same lightweight metal belt pack as the EK 100 G4 receiver, the SK 100 G4 is a transmitter for use with lapel microphones, head worn microphones and higher signal levels from instruments such as guitars. Dimensions (HxWxD): 82 x 64 x 24mm. Weight: 160g
Included accessories: 2x AA batteries, guides.
Discontinued

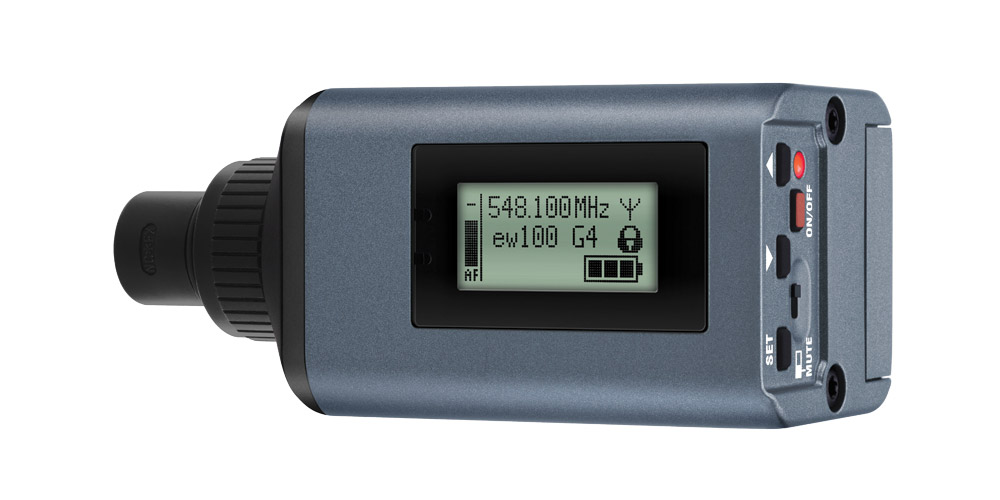

When attached to a compatible microphone via the 3-pin XLR connector, the SKP 100 G4 gives the same operational functionality as the SKM100 handheld transmitter, with a range of up to 100m.
Dimensions (HxWxD): 105 x 43 x 43mm. Weight: 195g.
Discontinued

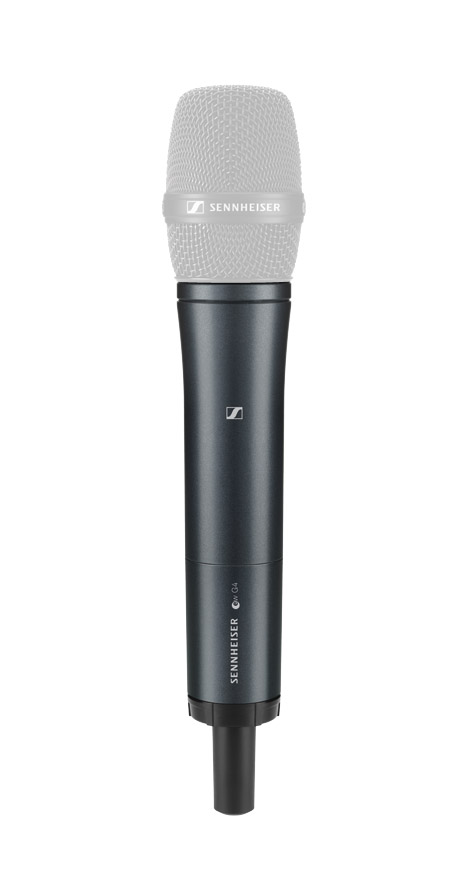

SKM100 G4 is a handheld transmitter with a metal body designed for vocals whether sung or spoken. Powered by two 1.5V AA batteries or a BA 2015 that can be inserted into the body of the microphone via a hidden threaded compartment, the handheld microphone has an operating time of around 8 hours under normal operation. All models have set-up and menu cursor buttons, multi-function switch and fixed antenna at the base of the microphone shaft. A backlit screen gives the user intuitive feedback on current settings.
The transmitter is available in complete systems with a choice of five microphone capsules, all with mute switch. They are also available without capsules, with and without mute switch. The models without capsules are compatible with Sennheiser MMD, MME, and MMK microphone capsules, see below. Each transmitter is offered in two configurations of the operating frequency. One is channel 69/70 ready at 823-865MHz, the other is channel 38 ready at 606-648Mhz. Dimensions (LxD): 265 x 50mm. Weight: 450g, without capsule.
Included accessories: MZQ 1 microphone clamp, 2x AA batteries, guides.
Discontinued

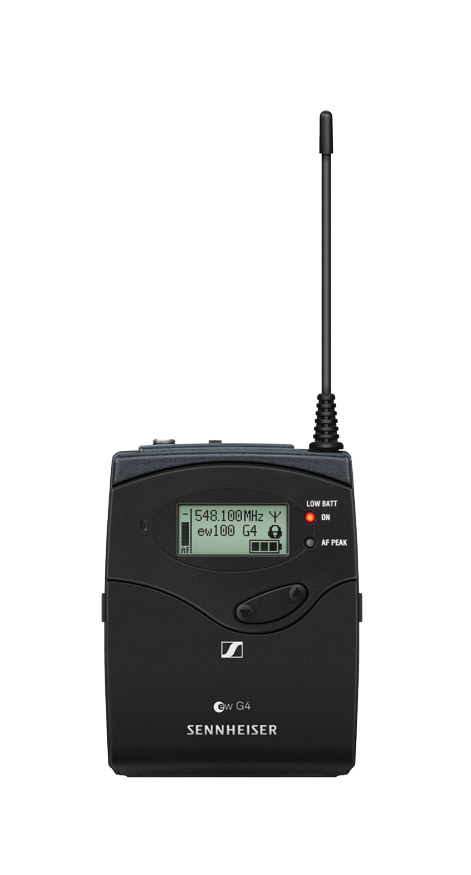

SK300 G4 transmitter is housed in a lightweight metal belt pack, and can be used with compatible lapel microphones, head worn microphones and higher signal levels from instruments such as guitars. It is powered by 2x AA 1.5V batteries or a BA 2015 which provide a typical operational time of 8 hours. The audio input is via a locking, 3.5mm, jack socket. An illuminated liquid crystal display (LCD) on the front facing panel indicates status and shows menu options. A 2.5mm jack socket is provided to connect the optional RMS 1 external switch, to control user-assignable options including AF on/off, RF on/off, 'push-to-mute', and 'push-to-talk'. Dimensions (WxDxH): 64 x 24 x 82mm. Weight: 160g.
Discontinued
This is a handheld transmitter with a metal body, designed for vocals whether sung or spoken. Powered by two 1.5V AA batteries or BA 2015 Accupack that can be inserted into the body of the microphone via a hidden threaded compartment, the microphone has an operating time of around 8 hours under normal operation. All models have set-up and menu cursor buttons, multi-function switch and fixed antenna at the base of the microphone shaft. A backlit screen gives the user feedback on current settings. A mute switch located near the capsule at the top of the microphone allows the operator to switch user-assignable options including AF on/off, RF on/off, 'push-to-mute', and 'push-to-talk', as well as disable the button functionality.
The transmitters are available individually without microphone capsules for use with compatible Sennheiser MMD, MME, and MMK microphone capsules, see below. When supplied as part of a complete system, they have a 865 super-cardioid, condenser capsule. Each transmitter is offered in two configurations of the operating frequency. One is channel 61/70 ready at 790-865MHz, the other is channel 38 ready at 606-648Mhz. Dimensions (LxD): 265 x 50mm. Weight: 450g, including batteries.
Included accessories: MZQ 1 microphone clamp, 2x AA batteries, pouch, guides.
SK500 G4, with up to 50mW RF output power, is housed in a light-weight metal belt pack, and can be used with compatible lapel microphones, head worn microphones and higher-level signals from instruments such as guitars. It is powered by 2x AA 1.5V batteries or a BA 2015 which provide a typical operational time of 8 hours. The audio input is via a locking, 3.5mm, jack socket. An illuminated liquid crystal display (LCD) on the front facing side shows status and menu options. Dimensions (WxDxH): 64 x 24 x 82mm. Weight: 160g.
Included accessories: 2x AA batteries, pouch, guides.
This transmitter attaches to compatible microphones via a 3-pin XLR connector to give the same operational functionality as the SKM 500 G4 handheld transmitter. Dimensions (WxDxH): 43 x 43 x 105mm. Weight: 195g.
Included accessories: 2x AA batteries, POP 1 pouch with belt clip, guides.
Building on the popularity of the SKM 500 G3, the SKM500 G4 series transmitter, with its lightweight aluminium housing, is designed for vocals whether sung or spoken. It is powered by two 1.5V AA batteries or a single BA 2015 Accupack that can be inserted into the body of the microphone via a hidden threaded compartment, for an operational time of around 8 hours. All models have set-up and menu cursor buttons, multi-function switch, and fixed antenna at the base of the microphone shaft. An orange backlit screen gives the user feedback on current settings.
The transmitter is available in complete systems with a choice of three microphone capsules. They are also available as component versions without capsule, compatible with Sennheiser MMD, MME, and MMK capsules, see below. Each transmitter is offered in two configurations of the operating frequency. One is covers channels 61/70 at 790-865MHz, the other is channel 38 ready at 606-648Mhz. Dimensions (LxD): 265 x 50mm. Weight: 450g, including batteries.
Included accessories: MZQ 1 microphone clamp, pouch, 2x AA batteries, guides.
