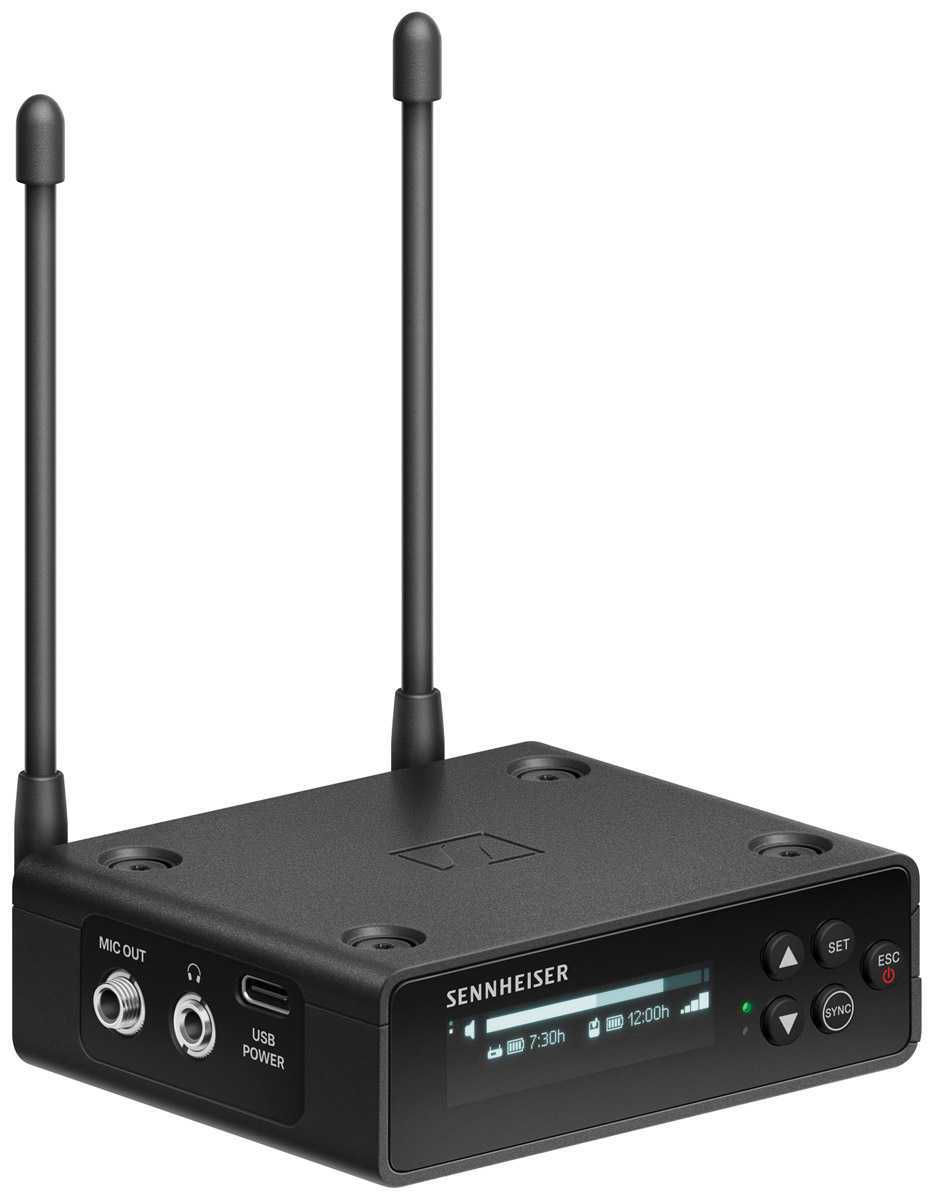

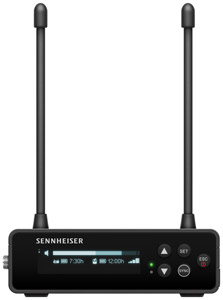

SENNHEISER EW-DP EK RADIOMIC RECEIVER Portable (S1-7)

EW-D SK DIGITAL RADIOMIC TRANSMITTER Beltpack, no mic

A single channel, all-metal beltpack wireless transmitter that operates via 2x AA 1.5V batteries for up to 8 hours, or 12 hours using a BA 70 Lithium-ion battery pack. The transmitter has a locking 3.5mm jack input making it compatible with headset microphones including SL Headmic 1, ME 3, HS 2-EW, HSP Essential Omni, HSP 2-EW or HSP 4-EW; and lavalier microphones including ME 2, ME 4, MKE Essential Omni, version of MKE 1, versions of MKE 2, or MKE 40-4.

EW-D SK digital transmitter has a dynamic range of 134dB ensuring a high level of detail is preserved from the microphone pickup. The beltpack can be setup remotely using the automated setup and Smart Assist mobile app. Optional EW-D SK colour coding kit can be used to quickly identify each transmitter within a set.

Audio frequency response: 20Hz to 20kHz, -3dB. Bluetooth frequency: 2402 to 2480MHz. Input voltage: 2.0-4.35V. Input current: less than 300mA. Dimensions (WxDxH): 63 x 80 x 20mm, excluding antenna. Weight: 120g, without batteries.

Included accessories: 2x AA batteries, pouch.
Optional accessories and spares: EW-D SK belt clip, EW-D SK colour coding, EW-D colour coding set, BA 70 Lithium-ion battery.

EW-D SKM-S DIGITAL RADIOMIC TRANSMITTER Handheld, no capsule

EW-D SKM-S is a handheld transmitter with a metal body designed for vocals whether sung or spoken. Powered by two 1.5V AA batteries or a single BA 70 Lithium-ion battery - that can be inserted into the body of the microphone via a hidden threaded compartment; the handheld microphone has an operating time of around 8 hours of operational time with AA battery cells, or 12 hours with BA 70.

The transmitter is available in complete systems or stand alone and offers remote set up, mute switch, and Bluetooth for smart setup. The handheld transmitter does not include a capsule and is compatible with capsules including Sennheiser MMD 835-1 BK, MMD 845-1 BK, MME 865-1 BK, MMD 935-1 BK, MMD 945-1 BK, MMK 965-1 BK, MM 435, MM 445, and Neumann KK 204-S or KK 205-S.

Audio frequency response: 20Hz to 20kHz, -3dB. Bluetooth frequency: 2402 to 2480MHz. Input voltage: 2.0-4.35V. Input current: less than 300mA. Dimensions (Diameter x L): 50 x 268mm, including optional MMD 835 capsule; 40 x 200mm, excluding capsule. Weight: 304g, including optional MMD 835 capsule; 195g, without capsule.

Included accessories: 1x MZQ 1 microphone clamp, 2x AA batteries.
Optional accessories and spares: EW-D SKM colour coding, EW-D colour coding set, BA 70 Lithium-ion battery, MMD 835/MMD 845/MME 865/MMD 935/MMD 965/MM 435/MM 445 mic capsule.

EW-DP SKP DIGITAL RADIOMIC TRANSMITTER Plug-on

This plug-on transmitter is designed to enable the use of a non-wireless microphone with a wireless system by connecting via the 3-pin XLR. The transmitter features 48V phantom power for use with microphones such as condenser mics that require external powering, along with a 3.5mm jack input for use with a Sennheiser lavalier microphone. EW-DP SKP requires 2x AA battery cells or single BA 70 lithium-ion battery for use up to 12 hours. A microSD card slot allows the user to record the audio captured from the connected microphone. The 32-bit float recording is combined with the transmitter's 134dB dynamic range to ensure 'distortion free' recording. Alternatively the transmitter can be set to 24-bit, 48kHz record mode to save memory card space. A low-cut filter is preset to on, however this can be turned of if preferred.

Audio frequency response: 20Hz to 20kHz, -3dB. Bluetooth frequency: 2402 to 2480MHz. Input voltage: 2.0-4.35V. Input current: less than 300mA, without record and +48V phantom power. Dimensions (W x L): 42 x 108mm. Weight: 163g, without batteries.

Included accessories: 2x AA battery cells
Optional accessories and spares: Mount plate set (700005), mounting plate (588188), CL35 cable (586365), CL35-Y cable (700062), BA 70 battery, L 70 USB.

EW-DP-ENG SET

This wireless system has been designed for electronic news gathering (ENG), and comprises of EW-DP EK receiver, EW-D SKM plug-in transmitter, EW-D SK beltpack transmitter, and ME 2 omnidirectional lavalier microphone. Other accessories included are receiver mounting kit, BA 70 lithium-ion battery, 2x AA battery cells, locking 3.5mm TRS jack to 3.5mm TRS jack cable, locking 3.5mm TRS jack to 3-pin XLR cable, and USB-C charging cable.

Note: only one transmitter can be used at any point in time with the included single channel receiver.

EW-D 835-S SET

A handheld wireless system designed for speech or singing voice, comprising of EW-D EM receiver and EW-D SKM-S handheld transmitter with MMD 835 dynamic mic capsule with cardioid pickup pattern. Other accessories included are MZQ 1 microphone clamp, NT 12-5CW+ power supply, rackmount kit, antenna rods and rubber feet for EW-D EM, and AA battery cells for EW-D SKM-S transmitter.

EW-DP 835 SET

A handheld wireless system with portable receiver, designed for speech or singing voice. This system comprises of EW-DP EK receiver and EW-D SKM-S handheld transmitter with MMD 835 dynamic mic capsule with cardioid pickup pattern. Other accessories included are receiver mounting kit, BA 70 lithium-ion battery, 2x AA battery cells, locking 3.5mm TRS jack to 3.5mm TRS jack cable, locking 3.5mm TRS jack to 3-pin XLR cable, and USB-C charging cable.

EW-D ME2/835-S SET

This wireless system comprises of EW-D EM receiver, EW-D SKM-S handheld transmitter with MMD 835 dynamic mic capsule with cardioid pickup pattern, EW-D SK beltpack transmitter, and ME 2 omnidirectional lavalier microphone. Other accessories included are MZQ 1 microphone clamp, NT 12-5CW+ power supply, rackmount kit, antenna rods and rubber feet for EW-D EM, and AA battery cells for transmitters.

Note: only one transmitter can be used at any point in time with the included single channel receiver.

EW-D ME2 SET

A wireless system designed for presentations consisting of EW-D EM receiver and EW-D SK beltpack transmitter with ME 2 omnidirectional lavalier microphone. Other accessories included are NT 12-5CW+ power supply, rackmount kit, antenna rods and rubber feet for EW-D EM, and AA battery cells for EW-D SK transmitter.

EW-DP ME2 SET

A wireless system designed for presentations consisting of EW-DP EK receiver and EW-D SK beltpack transmitter with ME 2 omnidirectional lavalier microphone. Other accessories included are mounting kit for EW-DP EK receiver, BA 70 lithium-ion battery, 2x AA battery cells, locking 3.5mm TRS jack to 3.5mm TRS jack cable, locking 3.5mm TRS jack to 3-pin XLR cable, and USB-C charging cable.

EW-D ME3 SET

Designed for presentation or performance, this wireless system comprises of EW-D EM receiver, and EW-D SK beltpack transmitter with ME 4 cardioid headworn microphone. Other accessories included are NT 12-5CW+ power supply, rackmount kit, antenna rods and rubber feet for EW-D EM, and AA battery cells for EW-D SK transmitter.

EW-D ME4 SET

A wireless system designed for presentations consisting of EW-D EM receiver, and EW-D SK beltpack transmitter with ME 4 cardioid lavalier microphone. Other accessories included are NT 12-5CW+ power supply, rackmount kit, antenna rods and rubber feet for EW-D EM, and AA battery cells for EW-D SK transmitter.

EW-DP ME4 SET

A wireless system designed for presentations consisting of EW-DP EK receiver and EW-D SK beltpack transmitter with ME 4 cardioid lavalier microphone. Other accessories included are mounting kit for EW-DP EK receiver, BA 70 lithium-ion battery, 2x AA battery cells, locking 3.5mm TRS jack to 3.5mm TRS jack cable, locking 3.5mm TRS jack to 3-pin XLR cable, and USB-C charging cable.

EW-D CI1 SET

This wireless system has been designed for instrument use and comprises of EW-D EM receiver and EW-D SK beltpack transmitter with CI 1 instrument cable. Other accessories included are NT 12-5CW+ power supply, rackmount kit, antenna rods and rubber feet for EW-D EM, and AA battery cells for EW-D SK transmitter.

EW-D SK BASE SET

This wireless set is designed for those who already have a lavalier or headworn microphone with compatible termination. The system comprises of EW-D EM receiver and EW-D SK beltpack transmitter. Other accessories included are NT 12-5CW+ power supply, rackmount kit, antenna rods and rubber feet for EW-D EM, and AA battery cells for EW-D SK transmitter.

Note: no microphone is included in this system.

EW-D SKM-S BASE SET

A handheld wireless system including EW-D EM receiver and EW-D SKM-S handheld transmitter. The microphone is compatible with optional MMD/MME/MMK/MM Evolution wireless microphone capsules. Other accessories included are NT 12-5CW+ power supply, rackmount kit, antenna rods and rubber feet for EW-D EM, and AA battery cells for EW-D SKM-S transmitter.

Note: no microphone capsule is included in this system.

The following range of dedicated Evolution Wireless Digital (EW-D) products are available as spares or optional accessories.

BA 70 BATTERY

A single, rechargeable Lithium-ion battery cell for either EW-D SK or EW-D SKM transmitter.

L 70 USB BATTERY CHARGER

This battery charger can accommodate up to 2x BA 70 batteries, operating on mains power via the included NT 5-20 UCW power supply. L 70 charging docks can also be cascaded.

EW-D CHARGING SET

This charging set includes 1x L 70 charging dock with power supply, and 2x BA 70 Lithium-ion batteries.

NT 12-5 CW+

A spare power supply for EW-D EM receiver. The ADAPTER SET NT 12-5 CW+ is an additional set of adapters for the NT 12-5 CW+ power supply.

EW-D COLOUR CODING SET

A set of colour coding markers, including 1x 16pc EW-D SK COLOUR CODING for EW-D SK beltpack transmitter, 1x 16pc EW-D SKM COLOUR CODING for EW-D SKM handheld transmitter, and 1x 16pc EW-D EM COLOUR CODING for EW-D EM receiver. These magnetic coloured additions attach to the EW-D SK/SKM/EM hardware for better identification at a glance.

EW-D SK COLOUR CODING, EW-D SKM COLOUR CODING, and EW-D EM COLOUR CODING are also available individually with each pack containing 16 pieces.

Antenna

There is also a dedicated range of antenna accessories available for the EW-D series including ADP UHF passive antenna, EW-D ASA dual 1:4 active antenna splitter, EW-D AB antenna booster, and Half Wave Dipole antenna. See SENNHEISER WIRELESS - Accessories for more detail.

All the following may be used with the EW G3 and G4 handheld radiomic transmitters; SKM 100, SKM 300 and SKM 500.

MMD 835-1 BK - Dynamic, cardioid

'Balanced frequency response maintains signal quality when moving on and off-axis during performance'. 'High sound pressure handling capability'.

MMD 845-1 BK - Dynamic, super-cardioid

'High feedback rejection and powerful sound are the main features of this microphone'.

MME 865-1 BK - Electret condenser, super-cardioid

'Top-notch' microphone for 'nuanced vocal reproduction'. 'Breath taking vocal sound'. Feedback-rejecting capsule. 'High brilliance', 'applicable for either voice or speech'.

MMD 935-1 BK - Dynamic, cardioid

This 'features the excellent acoustic properties of the wired e 935 vocal microphone'. Cardioid pick-up pattern 'provides isolation from other on-stage signals'; 'uniform on-axis and off-axis response'. 'Specially developed for use under loud on-stage conditions'. 'Makes vocals cut through the mix'. Colour: Black.

MMD 945-1 BK - Dynamic, super-cardioid

'Unsurpassed in its class with a smooth, natural sound' with 'tremendous sound clarity and feedback rejection', the MMD 945 'features the excellent acoustic properties of the wired e 945 vocal microphone'. Colour: Black.

MMK 965-1 BK - Large diaphragm, true condenser - cardioid or super-cardioid, switched

'Powerful, high-definition sound makes it one of the best microphone heads of all time. Due to its dual-membrane technology, the pick-up pattern can be easily switched between cardioid and super-cardioid for extreme versatility'. Colour: Black.

MM 435 - Dynamic, cardioid

Sennheiser describe the MM 435 capsule to have 'nuanced resolution and transparency'. It has a large diaphragm diameter and a frequency response of 40-20,000Hz. With a maximum SPL of 163dB and dynamic range of 146dB(A), MM 435 is designed for live vocals in high volume conditions.

MM 445 - Dynamic, super-cardioid

This microphone head has very similar attributes as the MM 435 however the pickup pattern is super-cardioid and is therefore more resistant to background noise and feedback.
