Sennheiser headworn and headset microphones, most of which are for use with Sennheiser wireless systems including Evolution G3 and Evolution G4 series of belt-pack transmitters, and capsules for the G3, G4, and Digital 6000 handheld transmitters. Alternative termination types are also listed to suit other wireless systems.
SL HEADMIC 1 - Omnidirectional, 3.5mm locking jack
Available in black, beige, or silver, this omnidirectional headworn microphone offers 'sturdy' metal frame whilst retaining a light weight of 7g without cable. Featuring the popular MKE 1 capsule, SL Headmic 1 terminates with 3.5mm locking jack for connection to popular EW series wireless systems along with SL SpeechLine systems such as the SL HEADMIC SET to which it is an included component. The included cable can be detached from the headset for convenient storage, replacement, or transition between terminations.
Included accessories: MZC 2 frequency cap, SL MZW1 windshield, connection cable termination in 3.5mm locking jack, soft case.
Frequency response: 20 - 20,000Hz. Maximum pressure level: 143dB SPL. Nominal impedance: 1kOhm. Weight: 7g, without cable.
HT 747 - Supercardioid, sweat-resistant, 3.5mm locking jack
Designed for use in fitness application such as aerobic, sports, and other gym applications, HT 747 is a sweat-resistant headworn microphone that 'provides sufficient ambient noise rejection'. The headset microphone has been designed for use with Sennheiser XSW2 however with the 3.5mm locking jack termination it is compatible with other wireless beltpack transmitters.
HT 747 is available in black or yellow finish and is supplied with a black HT 474 Windscreen (700230).
Applications: Fitness. Microphone type: Condenser. Frequency response: 100-15000Hz. Weight: 48.5g.
ME 3 - Cardioid headset, 3.5mm locking jack
This is worn over the ears, has a rear headband. 'Lightweight and comfortable to wear', it offers 'high speech intelligibility', with a 'feedback-rejecting cardioid pick-up pattern'. Cable: 1.6m, with 3.5mm jack plug wired for use with G3, G4, or Evolution Digital radiomic body packs.
Applications: 'Suitable for singers and speakers'. Maximum level: 150dB SPL. Sensitivity: 1.6mV/Pa.

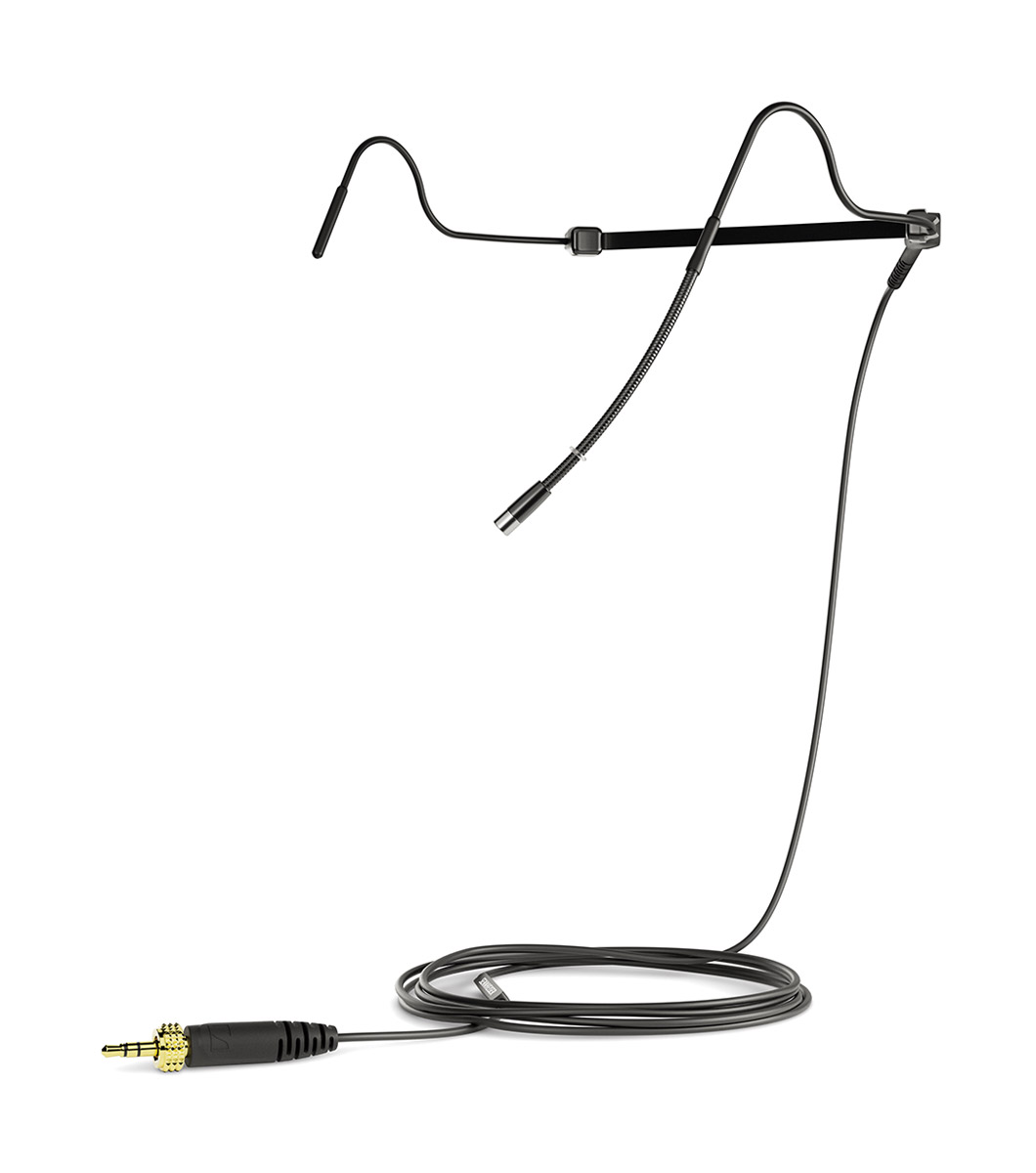

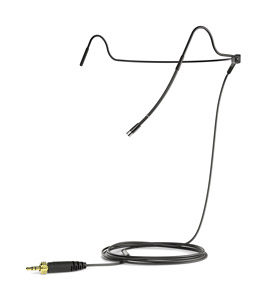

HS 2 - Omnidirectional, 3.5mm locking jack
Available in black or beige variety, the HS 2-ew headworn microphone features the MKE 2 Gold condenser capsule. A ‘sturdy’ 1.6m steel wire is used between capsule and 3.5mm jack, which is compatible with Evolution series beltpack transmitters.
Applications: Singers and speakers. Maximum level: 140dB. Response: 20-20000Hz. Sensitivity: 5mV/Pa +/- 3dB, free field. Equivalent noise level: 41dB, CCIR-weighted. Cable Diameter: 4.8mm. Weight: 30g
Variants differ in colour:
| HS 2 BK: |
Black, steel wire cable |
| HS 2 BE: |
Beige, steel wire cable |
HSP ESSENTIAL OMNI - Omnidirectional headset, 3.5mm locking jack
An 'ergonomic' headworn microphone designed for speech. Designed to offer a solution to those who require something superior to the ME 3-II but at a lesser price point than the HSP 2-EW. The capsule is 'inconspicuous and durable' and manufactured from 'allergy friendly' material that is resistant to sweat, moisture, and colour abrasion.
Applications: Theatre and broadcast. Maximum level: 148dB. Response: 20-20000Hz. Sensitivity: 2.5mV/Pa, free field, no load, 1kHz. Equivalent noise level: 30dB, A weighted. Dimensions: 4.8mm diameter, capsule. Weight: 25g
Included accessories: SL MZW Foam windscreen, bag, quick guide, safety guide.
HSP 2 - Omnidirectional headset
Designed for 'professional hands free applications', this is part of a modular system. Two cushioned wire loops fit over the ears, the adjustable neckband (wire) is 'visually unobtrusive and very comfortable to wear'. The thin microphone boom, 1.1 mm diameter, can be attached to the left or right side. The connection cable is interchangeable. Cable: 1.6m. Versions with 3.5mm jack plug termination are wired for use with G4 radiomic body packs.
Maximum level: 150dB SPL. Response: 20 - 20000 Hz. Sensitivity: 2mV/Pa, free field, no load, 1kHz. Equivalent noise level: 28dBA. Minimum load impedance: 4700 ohms. Dimensions: 4.8mm diameter capsule. Weight: 6.5g without cable.
Included accessories: Plastic transport case, foam-lined with cut-outs. Caps for altering the frequency response. Operating instructions.
Variants differ in colour:
| HSP 2-EW: |
Black, 3.5mm locking jack termination. |
| HSP 2-EW-3: |
Beige, 3.5mm locking jack termination. |
HSP 4 - Cardioid headset
Designed for 'professional hands free applications', part of a modular system, the HSP 4 is similar to the HSP 2 in construction. Two cushioned wire loops fit over the ears, the adjustable neckband (wire) is 'visually unobtrusive and very comfortable to wear'. The 'twist-proof' microphone boom, 2.0mm diameter, with a flexible gooseneck section, can be attached to the left or right side, the microphone includes a detachable cap as integral wind/pop shield. The connection cable is interchangeable. Cable: 1.6m. Versions with 3.5mm jack plug termination are wired for use with G4 radiomic body packs.
Maximum level: 150dB SPL. Response: 40 - 20000 Hz. Sensitivity: 4mV/Pa, free field, no load, 1kHz. Equivalent noise level: 37dBA. Minimum load impedance: 4700 ohms. Dimensions: 8.4mm diameter capsule. Weight: 9.2g without cable.
Included accessories: Plastic transport case, foam-lined with cut-outs. Foam windshield. Operating instructions.
Variants differ in colour and termination:
| HSP 4: |
Black, 3-pin SE termination. |
| HSP 4-EW: |
Black, 3.5mm locking jack termination. |
| HSP 4-3: |
Beige, 3-pin SE termination. |
| HSP 4-EW-3: |
Beige, 3.5mm locking jack termination. |
