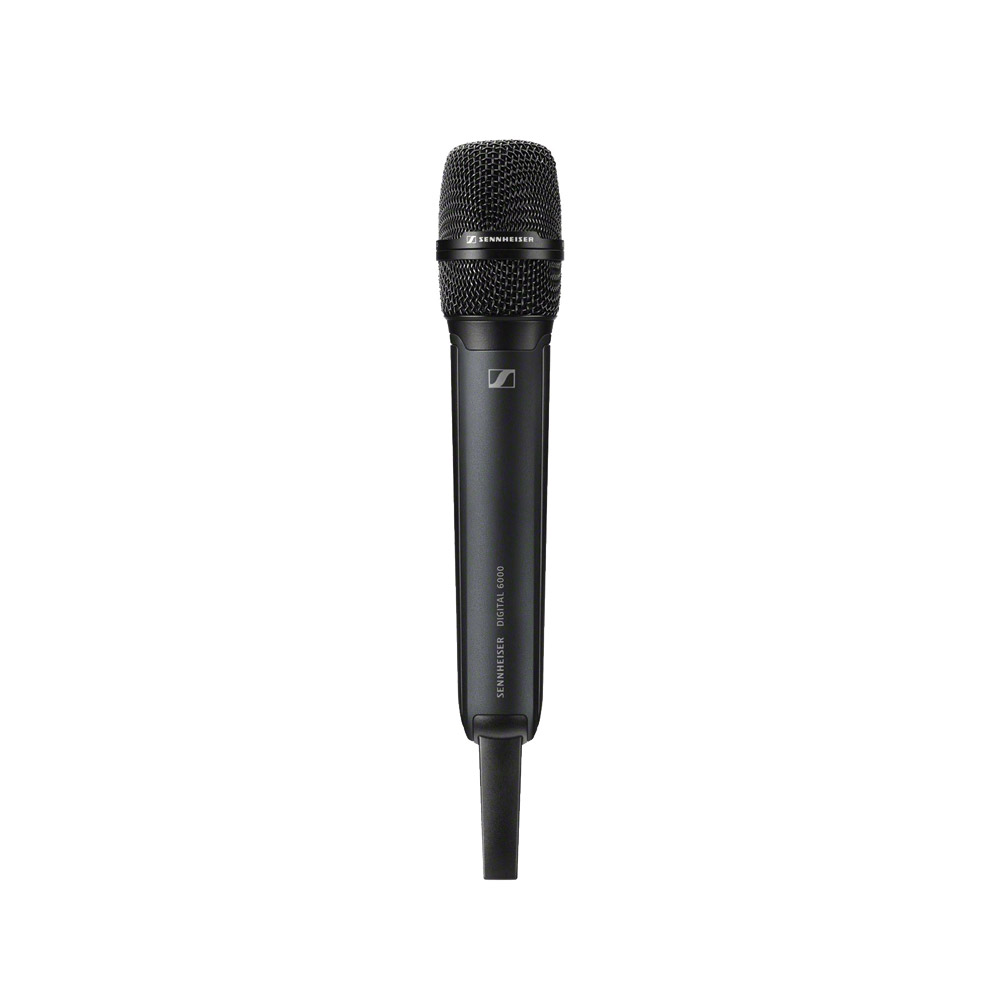

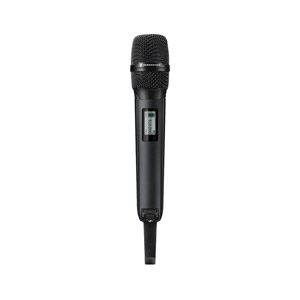

SKM-6000 Transmitter - Handheld
The SKM6000 is a handheld transmitter with a magnesium housing, designed for vocal whether singing or speaking. The body-only transmitter is compatible with optional capsules from the 2000 series, Digital 9000 series, Neumann KK204/205 series and Sennheiser Evolution G4 series, see SENNHEISER MICROPHONES - Headworn. Optional battery packs are available as either the B-60 which takes 2x AA option cells or the BA-60 Lithium Ion battery pack, which gives up to 5.5hours of operation. The power button is situated at the bottom of the front side of the microphone.
A low cut-off frequency can be adjusted in steps from 60/80/100/120Hz, with a capable audio frequency response of 30Hz to 20kHz (3dB). Audio gain can be adjusted in steps of 3dB from 0dB to +62dB can be set by the operator for maximum compatibility for the attached capsule. A screen is situated on the main body of the handheld transmitter, displaying important information including frequency, signal, battery life, grouping and more. Three cursor buttons are situated near the base of the microphone allowing the operator or engineer to navigate the menu and adjust settings to their requirements.
The transmitter is offered in three frequency bands:
Power consumption: 960mW. Operating time: 5.5 hours (with LI battery pack). Dimensions: 270 x 40 (LxD)mm. Weight: 350g, approximately, with BA60 battery pack and microphone head.
Included accessories: 1x MZQ 9000 microphone clamp, safety guide, quick guide.
SK-6212 Transmitter – Miniature Belt pack
This moisture and sweat resistant bodypack transmitter has been designed to be ‘ultra-compact’ and lightweight for use in musicals, theatre and broadcast applications. The physical design has rounded corners for easy concealment under or within clothing. SK6212 is operational for up to 12hours with the optional BA-62 lithium-polymer rechargeable battery. A ‘Long-Range’ RF mode enables the user to combine within a system of Digital 9000 or EK6042 slot-in type receiver. The Beltpack transmitter uses AES256 encryption for the 14mW RMS (standard more) or 4mW RMS (low power mode) radio frequency transmission. SK6212 is capable of tuning in 25kHz steps for ‘intermodulation-free’ transmission.
Like the SK6000 the SK6212 features a display on the front with three buttons for up, down, and select/enter. A power button is located above the screen on the front facing side. A green LED signifies power on. Both aerial connection and 3-pin locking microphone connector are positioned on the top edge of the Beltpack transmitter. The included antenna is removable via threaded connector. Both horizontal and vertical orientation belt clips are included to suit a wider range of positions. These belt clips are also available as spares as 508570 (horizontal) and 508571 (vertical).
The transmitter is offered in three frequency bandwidths:
Dimensions: 63 x 47 x 20mm (HxWxD). Weight: 112g.
Included accessories: Belt clip, aerial, carry case.
SK-6000 Transmitter - Belt pack
With many of the operating features as the SKM6000, the SK6000 is a belt pack transmitter housed in a lightweight magnesium casing. It has a Sennheiser, 3-pin, locking connector for use with lapel microphones such as the MKE 2-4 GOLD-C or MKE 2-4-3 GOLD-C. The CI 1-4, cable can also be used to connect to high output instruments such as electric guitar. It can be powered by the B-61 battery compartment for 2x AA 1.5V batteries or the BA-61 Lithium Ion battery pack to provide up to 5.5 hours of operation. The transmitter is capable of an audio frequency response of 30Hz to 20kHz (3dB); a low-cut frequency can be adjusted in steps from 30/60/80/100/120Hz.
Like the SKM6000 the SK6000 features a display on the front with three buttons for up, down, and select/enter. A power button is located on the top side along with audio input and antenna connection. A removable, push-and-turn antenna can be removed for storage.
The transmitter is offered in three frequency bandwidths:
Power consumption: 960mW maximum. RF power output: 25mW RMS, 50mW peak. Input impedance: 22k ohms, microphone; 1M ohms, line. Dimensions: 76 x 62 x 20mm (HxWxD) with BA-61 battery pack. Weight: 147g, with BA-61 and belt clip.
Included accessories: 1x belt clip, 1x antenna, safety guide, quick guide.
