Specifications

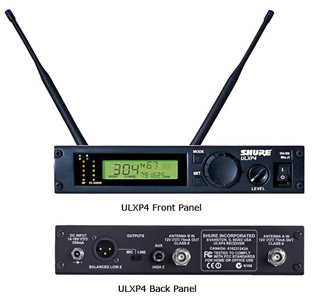

ULXP4 and ULXP4D Receivers:
RF Carrier Frequency Range
554.000 to 865.000 MHz
Effective Range
100 m (300 ft.) under optimal conditions
NOTE:Actual working range depends on RF signal absorption, reflection, and interference
Audio Frequency Response
25 to 15,000 Hz,±2 dB
NOTE:Overall system frequency response depends on the microphone element.
*Output Level: Microphone Level = Line Level – 20 dB
Transmitter Audio Polarity
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance1/4-inch output
Transmitter Gain Adjustment Range
ULX1: 25 dB
ULX2: 25 dB
Receiver Audio Output Level (±38 kHz deviation, 1 kHz tone)
XLR connector (into 600 ohm load): +3.9 dBV (line), –17 dBV (mic)
1/4inch connector (into 3000 ohm load):–2 dBV
Impedance
ULX1 (input): 1 Megohm
ULXS4, ULXP4 (output): 50 ohms at line level; 2000 ohms at mic level
Modulation
±38 kHz deviation compressor-expander system with pre- and de-emphasis.
RF Power Output
ULX1, ULX2: 30 mW maximum
Dynamic Range
>100 dB, A-weighted
RF Sensitivity
1.26μV for 12 dB SINAD (typical)
Image Rejection
80 dB typical
Spurious Rejection
75 dB typical
Ultimate Quieting (reference±38 kHz deviation)
>105 dB, A-weighted
System Distortion (reference±38 kHz deviation, 1 kHz modulation)
0.3% total harmonic distortion, typical
Power Requirements
ULX1, ULX2: 9V alkaline battery (Duracell MN1604 recommended); 8.4V Nicad optional
ULXS4, ULXP4: 14 - 18 Vdc (negative ground), 550 mA
Battery Life
8 to 9 hours (with 9V Duracell MN1604 alkaline battery)
Operating Temperature Range
-20°to 49°C (–4°to 120°F)
NOTE:Battery characteristics may limit this range.
Overall Dimensions
ULX1: 96.5 mm H x 67 mm W x 26.7 mm D (3.86 x 2.68 x 1.10 in.)
ULX2/58, ULX2/BETA 58: 241 mm L x 51 mm Dia. (9.5 x 2 in.)
ULX2/87, ULX2/BETA 87: 216 mm L x 51 mm Dia. (8.5 x 2 in.)
ULX4S: 43 mm H x 214 mm W x 163 mm D (1.72 in. x 8.56 in. x 6.52 in.)
ULX4P: 43 mm H x 214 mm W x 172 mm D (1.72 in. x 8.56 in. x 6.88 in.)
Net Weight
ULX1: 79 g (2.8 oz.) without battery
ULX2/58, ULX2/BETA 58: 295 g (10.4 oz.) without battery
ULX2/87, ULX2/BETA 87: 193 g (6.8 oz.) without battery
ULXS4: 1049 g (2 lbs, 5 oz.)
ULXP4: 1105 g (2 lbs, 7 oz.)
