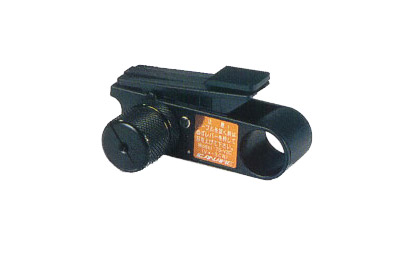

A handheld rotary stripping tool, with rotary-knob selection for five cable sizes (user adjustable) but preset to V-3C, LV-61S/L-4CFB, V-5C, V-5CFB, LV77S/L-5CFB cables by Canare. Usable cable range 4mm - 11mm diameter. For all cable sizes, 19mm of outer sheath, 10mm of braid and 3.5mm of dielectric are removed, which are the correct dimensions for use with all Canare BNC, F and RCA (phono) connectors.
Three internal circular steel blades make precise, extremely clean, 3-step cable cuts, and perform a self-cleaning action. One laterally mounted straight-edge blade side-slits the outer cable jacket for easy peel off. All blade heights can be adjusted using the supplied 1.5mm Allen key. Blade cassettes are quick to change when necessary. A knurled hand-grip with spring-loaded action automatically clamps down around the cable on insertion to prevent shift and twist during stripping. An adjustable V-guide properly aligns cable within the central axis cutting point. A see-through window allows observation of the cable before cutting. Weight 200g.
Note: The following types of cables may not be accurately processed by this unit, owning to their construction:
- Cables using hard jacket material such as polyethylene.
- Cables using particularly soft insulator material such as high-foam polyethylene (Canare L-* CHD, L-*CFW, V-FW series).
- Cables using steel wire and semi-rigid pipe for outer conductor.
TS-V3C
Discontinued
Similar to the TS100E, but for a single cable size, maximum 5.0mm. All blade heights can be adjusted. Blades are not replaceable.
Discontinued
Similar to the TS100E, but for a single cable size, maximum 6.5mm. All blade heights can be adjusted. Blades are not replaceable.
Ordering Note:
When ordering spare blades for the TS100E, please note that the unit could require up to 3 spare single blade cassettes, which are sold singly.
