CANARE L-4CFB CABLE Yellow (reel of 200m)

Stock code
36-764
Brand
Canare
Model number
  • L-4CFB
Colour
  • YellowYellow

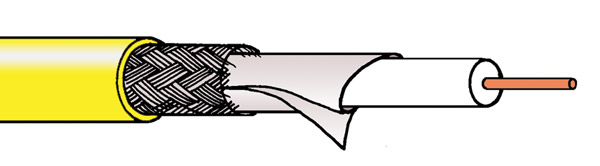

CANARE L-4CFB CABLE Yellow (reel of 200m)

Image may be provided for illustrative purposes only, please refer to the product description.

CANARE L-4CFB CABLE Yellow (reel of 200m)

Order

VAT / Delivery
$365.31
per reel (ex. VAT)
5+ $350.72
Ordered on demand, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us
RoHS Compliant

CANARE L-CFB DIGITAL VIDEO COAX CABLES

75 ohm cables designed specifically for digital video applications. L-4CFB is RG59 type, L-5CFB is RG6 type. Semi-matt non-reflective PVC jacket. Double screened, foil plus braid. L-5CFB handle signals from DC to 3GHz, thus covering uncompressed HDTV signals right up to 3Gbits/sec (SMPTE424M). Blue jacket is designed to work with chroma-key. A range of colours is available to special order, allow 4 weeks for delivery (supplied as full reels of 200 metres only).

Note: See suitable connectors for these cables in the drop-down lists below the full cable specification.

Technical Specification:

Cable size group: L-4CFB is group Q, L-3CFB and L-5CFB are not in Canford scheme.
Centre wire: 0.65mm (L-3CFB), 1/0.8mm (L-4CFB), 1/1.05mm (L-5CFB), plain copper
Dielectric: Foam polyethylene, 3.1mm (L-3CFB), 3.7mm (L-4CFB), 5.0mm (L-5CFB), OD
Screen 1: Aluminium foil, 100% coverage
Screen 2: Tinned copper braid
Jacket: Soft PVC 5.5mm (L-3CFB), 6.1mm (L-4CFB), 7.7mm (L-5CFB) OD, various colours
Nominal impedance: 75 ohms
Capacitance (nom.): 55pf/m
Velocity ratio (nom.): 0.79
Attenuation
(dB/100m ±0.1dB): 10MHz 135MHz 270MHz 750MHz 1.5GHz 3GHz
L-3CFB: 3.7 11.7 16.7 29.1 43.0 64.5
L-4CFB : 3.0 9.7 13.9 24.3 36.0 54.3
L-5CFB : 2.2 7.1 10.2 17.7 26.1 39.1
Weight/100m: 4.3kg (L-3CFB), 5.0kg (L-4CFB), 7.3kg (L-5CFB)
Reel length: 200 metres (some types also available 100 metres)
Cut lengths: Not available
Suitable crimp connectors outlined below.

L-3CFB

BNC Male - 3G

Brand Code Description
Canare 48-462 CANARE BCP-B3F BNC Male cable, group X & Canare L-3CFB
Canare 48-463 CANARE BCP-B3F BNC Male cable, group X & Canare L-3CFB (pack of 100)
COAX Connectors 48-5041 COAX CONNS 10-005-B36-FA BNC 3G HD Male cable, crimp, 75 ohm, group X

L-4CFB

BNC Male - 12G

Brand Code Description
COAX Connectors 48-5062 COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q
COAX Connectors 48-5072 COAX CONNS 10-005-W126-FB BNC 12G UHD Male cable, crimp, 75 ohm, black, group Q (pack of 100)
Neutrik 48-6374 NEUTRIK NBNC75BLP9X BNC 12G UHD Male cable, rear twist, Canford SDV-I-X-LFH, Belden 1505A, 4505R

BNC Male - 3G

Brand Code Description
Canare 48-464 CANARE BCP-B4F BNC Male cable, group Q2 & Canare L-4CFB
Canare 48-465 CANARE BCP-B4F BNC Male cable, group Q2 & Canare L-4CFB (pack of 100)
Neutrik 48-613 NEUTRIK NBNC75BLP9 BNC 3G Male cable, rear twist, Canare L-4CFB
Neutrik 48-6313 NEUTRIK NBNC75BLP9-D BNC 3G Male cable, rear twist, Canare L-4CFB (pack of 100, disassembled)

L-5CFB

BNC Male - 12G

Brand Code Description
COAX Connectors 48-5063 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y
COAX Connectors 48-5073 COAX CONNS 10-005-W126-FC BNC 12G UHD Male cable, crimp, 75 ohm, black, group Y (pack of 100)

Male, right-angled - 12G

Brand Code Description
COAX Connectors 48-5082 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, right-angle, crimp, 75 ohm, black, group Y
COAX Connectors 48-5092 COAX CONNS 10-104-W66-FC BNC 12G UHD Male cable, r/angle, crimp, 75 ohm, black, gp Y (pack of 100)

BNC Male - 3G

Brand Code Description
Canare 48-466 CANARE BCP-B5F BNC Male cable, Canare L-5CFB
Canare 48-467 CANARE BCP-B5F BNC Male cable, Canare L-5CFB (pack of 100))
COAX Connectors 48-5043 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y
COAX Connectors 48-5053 COAX CONNS 10-005-B36-FC BNC 3G HD Male cable, crimp, 75 ohm, group Y (pack of 100)
Neutrik 48-616 NEUTRIK NBNC75BYY11 BNC 3G Male cable, rear twist, Canare L-5CFB

DIN 1.0/2.3 Male - 12G

Brand Code Description
COAX Connectors 48-5006 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y
COAX Connectors 48-5016 COAX CONNS 52-005-B6-FC DIN 1.0/2.3 3G HD Male cable, crimp, group Y (pack of 100)
