SONIFEX AVN-AO16 DANTE AUDIO INTERFACE 16x analogue XLR outputs, Dante, 1U

Stock code
95-5963
Brand
Sonifex
Model number
  • AO16
  • AVN-AO16
SONIFEX AVN-AO16 DANTE AUDIO INTERFACE 16x analogue XLR outputs, Dante, 1U
SONIFEX AVN-AO16 DANTE AUDIO INTERFACE 16x analogue XLR outputs, Dante, 1USONIFEX AVN-AO16 DANTE AUDIO INTERFACE 16x analogue XLR outputs, Dante, 1U

SONIFEX DANTE AUDIO INTERFACES - Multi-channel - AVN Series

Sonifex AVN-AIO multi-channel audio inputs and outputs to Dante interfaces have been designed as 1U rack-mount solutions for systems integrators within the AV sector. They have either single or dual Dante connection, and are powered via PoE.

AVN-AIO - Analogue inputs and outputs

AVN-AI - Analogue inputs

AVN-AO - Analogue outputs


AVN-AO16

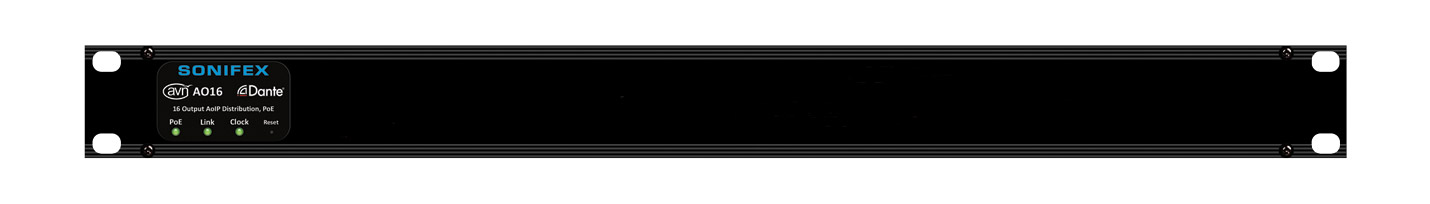

This interface is analogue output only, with audio input via Dante. A total of 16-channels of audio output can be simultaneously connected to the balanced 3-pin Neutrik XLR outputs. LED indicators on the front facing panel allow the user to quickly identify PoE, Link and Clock statuses. All connectivity including single RJ45 Dante input and analogue audio outputs are positioned on the rear facing panel. The interface is powered via PoE.

Output impedance: less than 50ohm balanced. 0dBFS line-up: +18dBu balanced. Frequency response: 20Hz to 20kHz, +0/-0.5dB, 600ohm load, 1kHz reference. THD+N: Less than -107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW. Noise: -107dBFS, 20kHz BW. Crosstalk: Less than 100dB. Sample rates: 44.1/48/88.2/96/176.4/192kHz. Encoding: PCM 16/24/32. Dimensions (WxDxH): 48 x 11 x 4.3cm. Weight: 1.1kg.


AVN-AO16R

This audio interface has the functionality and connectivity of the AVN-AO16, however it has a total of two Dante connections giving the ability for redundancy.

AVN-AESIO - Digital inputs and outputs
