RG58C/U RF CABLE Low fire hazard

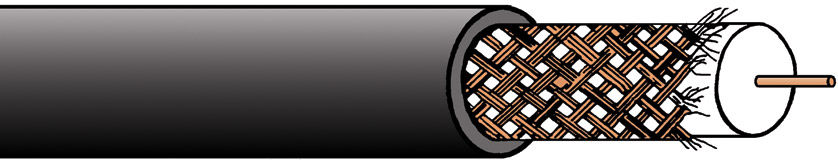

CANFORD RG58C/U-LFH CABLE, Eca, Black
CANFORD RG58C/U-LFH CABLE, Eca, Black

50 ohm cable commonly used for RF distribution applications. Low fire hazard construction.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specifications:
Cable size group: V
Centre wire: 96/0.12mm tinned copper
Dielectric: Polyethylene, 2.95mm OD
Braid: 112/0.12mm tinned copper
Braid coverage: 94%
Jacket: LFH 4.95mm O.D., black
Impedance at 200MHz: 50 ohms +/-5
Capacitance (nom.): 100 pf/m
Velocity ratio: (nom.): 0.66
Conductor DC resistance: 34 ohms/km maximum at 20°C
Attenuation: MHz 10 30 50 100 1000
dB/100m: 4 6.5 17 28 47.6
Weight: 4.0kg/100m
Reel length: 1000 metres
Cut lengths: Available in any multiple of 1 metre
Suitable connectors outlined below.

BNC Connector 50 Ohm RF

BNC Female Panel 50 Ohm RF (Soldered)

Description Price $
ex. VAT
Add to basket
Delivery
CANFORD RG58C/U-LFH CABLE, Eca, Black Black Stock code: 36-058
2874 in stock Need more?
17 cable oddments available
1+ $1.02
100+ $0.82
500+ $0.81
per metre
