CABLE MARKERS - RETROFIT - With fitting tools

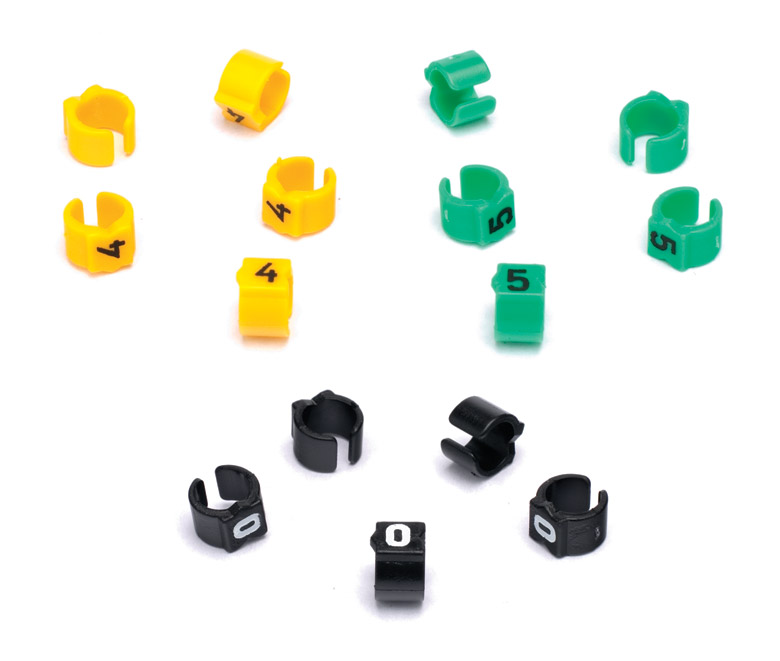

A range of ‘C’- section cable markers which are fitted around the cable before or after termination or connector fitment. The markers are halogen-free and have a small chevron ‘pip’ on each side, to ensure neat alignment when fitted. The small profile of these markers and the narrow tool enable fitting on closely bunched wires, for example, on terminal blocks, after termination.

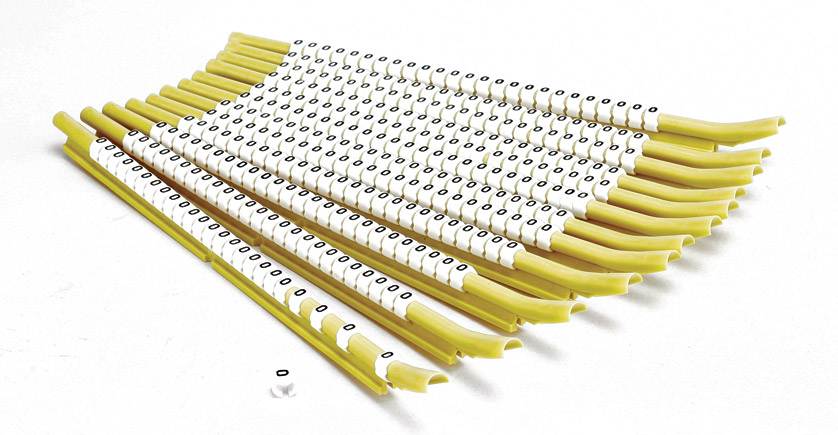

Types PS09 and PS12 are supplied in packs of 300 markers loaded on fitting tools.
Type PS15 are supplied loose in bags of 50, fitting tools must be ordered separately.

The plastic fitting tools, which are colour coded according to size for easy identification, have a flared tip which is located over the cable and the marker is then slid down onto the cable. The tools have a flat base so when placed on a workbench the markings always face upwards allowing easily identification.

Markers are available with letters printed black on a white marker and numerals 0-9, coloured according to the resistor colour code (RCC) or printed black on a white marker (BW).

Application Note: PS15 size markers are suitable for fitting to 7mm diameter, 10A moulded AC mains cord sets.
