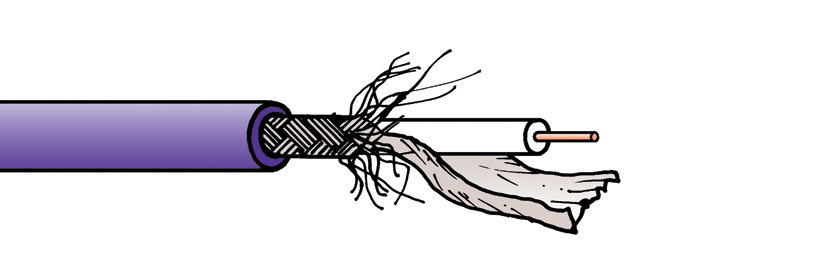

Extended performance, coaxial, 75 ohm cable, specifically for HDTV and serial digital video signals, with low-smoke, zero-halogen material, outer jacket.
Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.
Technical Specifications:
| Cable size group: |
Q (with Neutrik, Canare and COAX exceptions) |
| Inner conductor: |
0.84mm +/-0.01mm plain copper |
| Dielectric: |
Foam polyethylene, 3.70mm O.D. |
| Screen 1: |
Aluminium/polyester/aluminium tape, longitudinally applied |
| Screen 2: |
Tinned copper braid, O.D. 4.5mm |
| Construction: |
Coaxial cable |
| Jacket: |
Low smoke zero halogen material (FRNC IEC60332-1), O.D. 5.9mm, violet. |
| CPR Euroclass: |
Eca |
| Impedance: |
75 +/- 1% ohms |
| Capacitance: |
56pF/m nominal |
| Return loss: |
26dB nominal 50-300MHz |
| |
22dB nominal 300-3000MHz |
| |
18dB nominal 3000-3500MHz |
| |
15dB nominal 3500-5000MHz |
| Weight: |
4.9kg/100m |
| Reel length: |
1000m |
| Cut lengths: |
Available in any multiple of 1 metre |
Suitable crimp connectors outlined below.
'SDV' and 'LFH' are registered trademarks of Canford Audio Limited.
