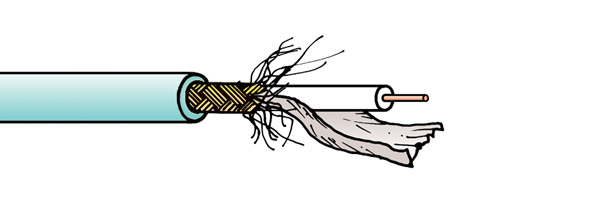

CANFORD SDV-UHD-LFH - HDTV DIGITAL VIDEO CABLE (0.7/2.9) Low fire hazard

CANFORD SDV-UHD-LFH CABLE 4K, Dca (s2 d1 a1), turquoise
CANFORD SDV-UHD-LFH CABLE 4K, Dca (s2 d1 a1), turquoise

Compact size, coaxial, 75 ohm cable specifically for 4K 12G video signals with low smoke-zero halogen material outer jacket.

Although this cable is based on a Canford group X design, due to the larger 0.7mm nominal conductor not all group X connectors, 12G or otherwise, may fit.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Not in Canford scheme. 12G only.
Inner conductor: 0.7mm solid copper wire, silver plated.
Dielectric: Foam polyolefin, 2.90mm O.D.
Screen 1: Aluminium/polyester/aluminium tape longitudinally applied
Screen 2: 0.08mm tinned copper braid, optical coverage 95%
Construction: Coaxial cable
Jacket: Low smoke zero halogen material, turquoise
Overall diameter: 4.5mm
CPR Euroclass: Dca-s2,d1,a1
Impedance: 75 Ohms
Capacitance: 56pF/m nominal
Return loss: 26dB nom. 50-300 MHz
22dB nom. 300-3000 MHz
18dB nom. 3000–3500 MHz
15dB nom. 3500–12000 MHz
Attenuation: MHz 10 100 200 750 1500 3000 6000 9000 12000
dB/100m 3.1 10.0 13.9 26.8 39.1 55.6 81.0 99.2 114.6
Weight: 2.8kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable crimp connectors outlined below.

BNC Male - 12G

BNC Female - 12G

Micro BNC Male - 12G

DIN 1.0/2.3 Male - 12G

Description Price $
ex. VAT
Add to basket
Delivery
CANFORD SDV-UHD-LFH CABLE 4K, Dca (s2 d1 a1), turquoise Turquoise Stock code: 36-696
12600 in stock Need more?
15 cable oddments available
1+ $2.01
100+ $1.61
500+ $1.57
1,000+ $1.51
per metre
