A non-rack mounted solution for on-stage use to power either musician backline, truss or fly bar mounted in theatre or touring applications. All models are housed in a robust steel enclosure with an integrated carrying handle that also acts to prevent accidental tripping and damage to the circuit breakers. LED Supply Present Indicator features on all models with Powercon input and loop output on the side panels to allow for units to be daisy-chained. In the event of a circuit breaker tripping, the pass through of power to the next unit is not affected. The E621 is fitted with a 15 Amp Over Current Thermal Breaker but the E622 is fitted with a 16 Amp RCBO giving both overcurrent and earth leakage protection, especially useful when connecting equipment with unknown maintenance history.

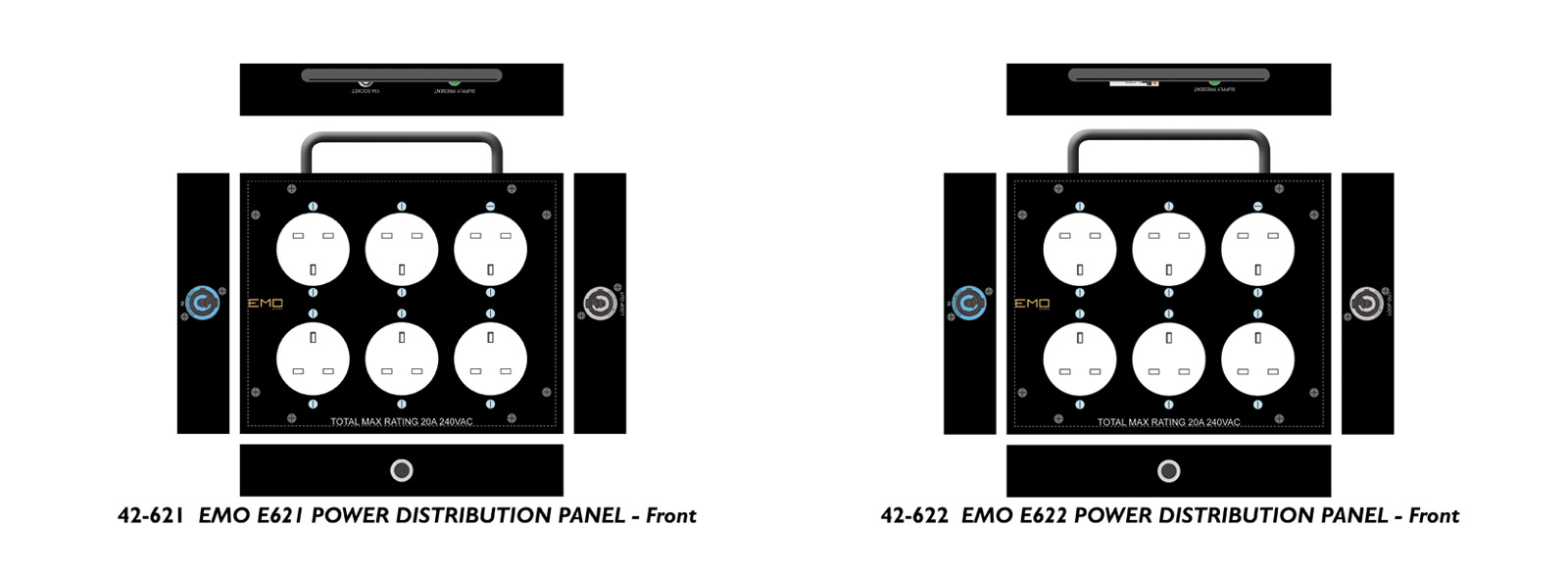

| Model |
Top Panel |
Side panels |

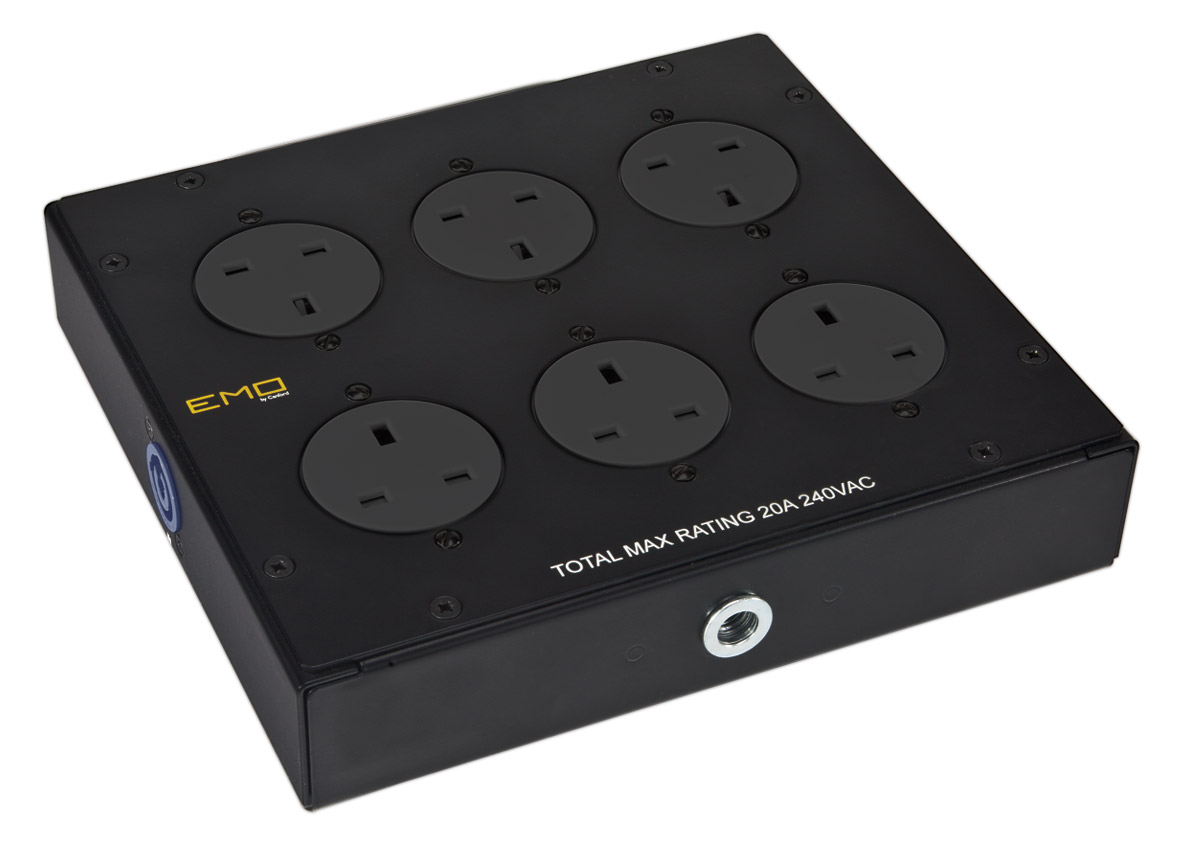

| E621 |
6 x UK 13A overcurrent protected outlet with 15A overall circuit protection |
20A Powercon input and output, 20A overcurrent thermal circuit breaker, supply present indicator, integral handle and M10 mounting point for mounting clamps. |
| E622 |
6 x UK 13A overcurrent protected outlet with 16A overall RCBO |
20A Powercon input and output, 20A overcurrent thermal circuit breaker, supply present indicator, integral handle and M10 mounting point for mounting clamps. |
Application note: These units should be fed with appropriate supply-side circuit protection, chosen to suit the capacity of the cable supplying them.
For ready-made cables using IEC 60309 16 Amp and 32 Amp connectors, see CANFORD HEAVY DUTY 16A AC MAINS POWER LEADS - Using Walther Industrial connectors or see CANFORD HEAVY DUTY 32A AC MAINS POWER LEADS - Using Walther Industrial connectors. For compatible IEC 60309 connectors, see IEC mains connectors.
Manufactured by Canford.
'EMO' is a registered trademark of Canford Audio Limited.
