CANFORD BNC TERMINATION PANELS - 12G, 4K UHD, 75 ohms - Standard density, gold

32 items

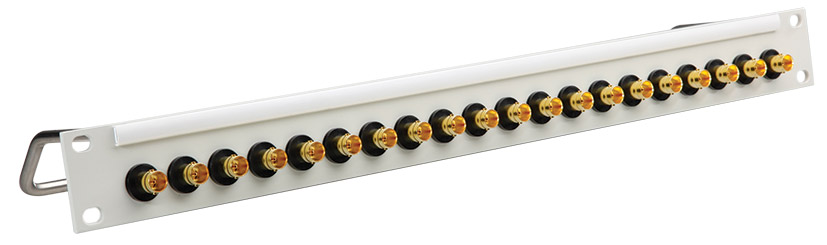

CANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, grey, gold

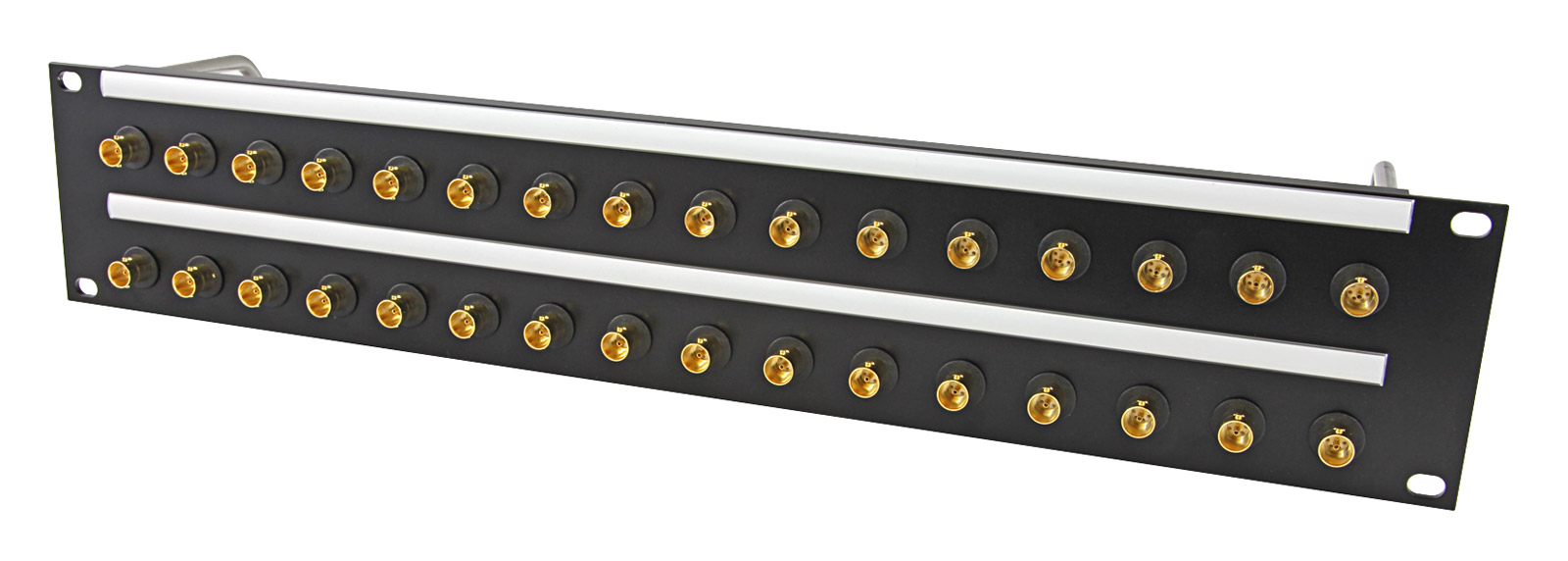

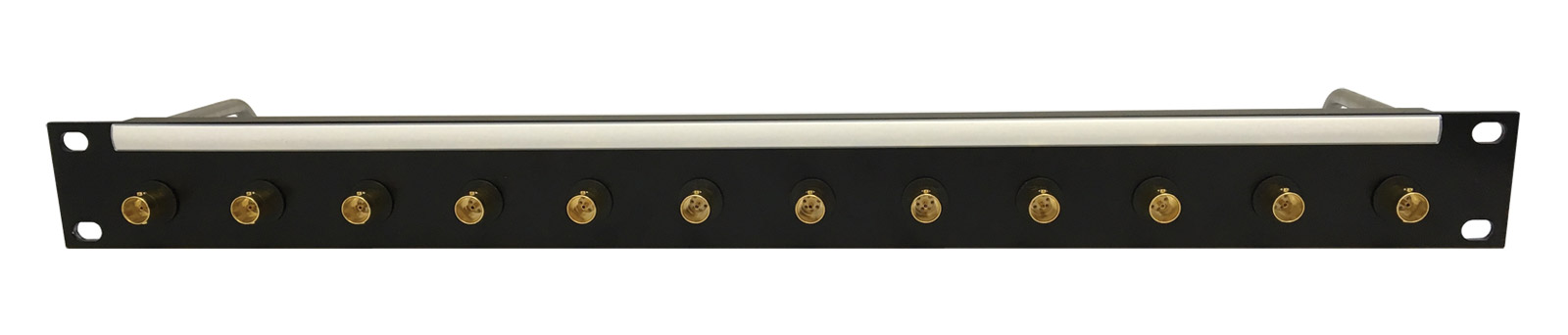

CANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, grey, goldCANFORD BNC TERMINATION PANEL 1U, 1x12, 12G 4K, black, goldCANFORD BNC TERMINATION PANEL 2U, 2x16, 12G 4K, black, gold

With one, two, three or four rows of connectors in 1U, 2U or 3U panels, each row with 12, 16, 20 or 24 connectors, depending on model, these 'Ultra High Definition' BNC termination panels are intended for 12G 4K ultra high definition (2160P60), 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE ST 2082-1 making them suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz.

Manufactured from a rigid aluminium extrusion, the panels are fully-populated with Coax Connectors 'KORUS' double-sided, 'Ultra High Definition', 12G, 75 ohm sockets, equally spaced across the panel. To the rear, a cranked lacing-bar is fitted over each row of connectors, giving easy access to the sockets. On the front, above each row of connectors, sits a designation-strip holder with snap-on cover, allowing paper inserts, with 7.5mm of printable height, to be inserted before or after any installation.

Available finished in Dawn Grey (BS4800-10A03) or Black.

Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.

Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.

Description Price $
ex. VAT 		Add to basket
Delivery
CANFORD BNC TERMINATION PANEL 1U, 1x12, 12G 4K, grey, gold GreyGold Stock code: 48-4051
11 in stock Need more?
1+ $114.44
5+ $109.87
CANFORD BNC TERMINATION PANEL 1U, 1x16, 12G 4K, grey, gold GreyGold Stock code: 48-4052
8 in stock Need more?
1+ $137.03
5+ $131.52
CANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, grey, gold GreyGold Stock code: 48-4053
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $159.82
5+ $153.53
CANFORD BNC TERMINATION PANEL 1U, 1x24, 12G 4K, grey, gold GreyGold Stock code: 48-4054
11 in stock Need more?
1+ $182.75
5+ $175.54
CANFORD BNC TERMINATION PANEL 2U, 2x12, 12G 4K, grey, gold GreyGold Stock code: 48-4055
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $204.23
5+ $196.11
CANFORD BNC TERMINATION PANEL 2U, 2x16, 12G 4K, grey, gold GreyGold Stock code: 48-4056
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $250.60
5+ $240.65
CANFORD BNC TERMINATION PANEL 2U, 2x20, 12G 4K, grey, gold GreyGold Stock code: 48-4057
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $296.19
5+ $284.40
CANFORD BNC TERMINATION PANEL 2U, 2x24, 12G 4K, grey, gold GreyGold Stock code: 48-4058
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $341.91
5+ $328.16
CANFORD BNC TERMINATION PANEL 3U, 3x12, 12G 4K, grey, gold GreyGold Stock code: 48-4059
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $300.78
5+ $288.72
CANFORD BNC TERMINATION PANEL 3U, 3x16, 12G 4K, grey, gold GreyGold Stock code: 48-4061
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $373.74
5+ $358.81
CANFORD BNC TERMINATION PANEL 3U, 3x20, 12G 4K, grey, gold GreyGold Stock code: 48-4062
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $444.75
5+ $426.93
CANFORD BNC TERMINATION PANEL 3U, 3x24, 12G 4K, grey, gold GreyGold Stock code: 48-4063
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $527.14
5+ $506.05
CANFORD BNC TERMINATION PANEL 3U, 4x12, 12G 4K, grey, gold GreyGold Stock code: 48-4064
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $390.25
5+ $374.66
CANFORD BNC TERMINATION PANEL 3U, 4x16, 12G 4K, grey, gold GreyGold Stock code: 48-4065
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $484.44
5+ $465.05
CANFORD BNC TERMINATION PANEL 3U, 4x20, 12G 4K, grey, gold GreyGold Stock code: 48-4066
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $579.02
5+ $555.83
CANFORD BNC TERMINATION PANEL 3U, 4x24, 12G 4K, grey, gold GreyGold Stock code: 48-4067
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $678.58
5+ $651.59
CANFORD BNC TERMINATION PANEL 1U, 1x12, 12G 4K, black, gold BlackGold Stock code: 48-4071
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
1+ $114.44
5+ $109.87
CANFORD BNC TERMINATION PANEL 1U, 1x16, 12G 4K, black, gold BlackGold Stock code: 48-4072
18 in stock Need more?
1+ $137.03
5+ $131.52
CANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, black, gold BlackGold Stock code: 48-4073
33 in stock Need more?
1+ $159.82
5+ $153.53
CANFORD BNC TERMINATION PANEL 1U, 1x24, 12G 4K, black, gold BlackGold Stock code: 48-4074
123 in stock Need more?
1+ $182.75
5+ $175.54
CANFORD BNC TERMINATION PANEL 2U, 2x12, 12G 4K, black, gold BlackGold Stock code: 48-4075
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $204.23
5+ $196.11
CANFORD BNC TERMINATION PANEL 2U, 2x16, 12G 4K, black, gold BlackGold Stock code: 48-4076
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $250.60
5+ $240.65
CANFORD BNC TERMINATION PANEL 2U, 2x20, 12G 4K, black, gold BlackGold Stock code: 48-4077
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $296.19
5+ $284.40
CANFORD BNC TERMINATION PANEL 2U, 2x24, 12G 4K, black, gold BlackGold Stock code: 48-4078
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $341.91
5+ $328.16
CANFORD BNC TERMINATION PANEL 3U, 3x12, 12G 4K, black, gold BlackGold Stock code: 48-4079
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $300.78
5+ $288.72
CANFORD BNC TERMINATION PANEL 3U, 3x16, 12G 4K, black, gold BlackGold Stock code: 48-4081
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $373.74
5+ $358.81
CANFORD BNC TERMINATION PANEL 3U, 3x20, 12G 4K, black, gold BlackGold Stock code: 48-4082
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $444.75
5+ $426.93
CANFORD BNC TERMINATION PANEL 3U, 3x24, 12G 4K, black, gold BlackGold Stock code: 48-4083
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $527.14
5+ $506.05
CANFORD BNC TERMINATION PANEL 3U, 4x12, 12G 4K, black, gold BlackGold Stock code: 48-4084
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $390.25
5+ $374.66
CANFORD BNC TERMINATION PANEL 3U, 4x16, 12G 4K, black, gold BlackGold Stock code: 48-4085
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $484.44
5+ $465.05
CANFORD BNC TERMINATION PANEL 3U, 4x20, 12G 4K, black, gold BlackGold Stock code: 48-4086
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $579.02
5+ $555.83
CANFORD BNC TERMINATION PANEL 3U, 4x24, 12G 4K, black, gold BlackGold Stock code: 48-4087
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $678.58
5+ $651.59
