CANFORD BNC TERMINATION PANELS - 12G, 4K UHD, 75 ohms - Standard density, nickel

32 items
CANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, grey
CANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, greyCANFORD BNC TERMINATION PANEL 2U, 2x12, 12G 4K, greyCANFORD BNC TERMINATION PANEL 3U, 4x12, 12G 4K, greyCANFORD BNC TERMINATION PANEL 3U, 3x24, 12G 4K, blackCANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, greyCANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, greyCANFORD BNC TERMINATION PANEL 3U, 3x24, 12G 4K, blackCANFORD BNC TERMINATION PANEL 3U, 3x24, 12G 4K, black

With one, two, three or four rows of connectors in 1U, 2U or 3U panels, each row with 12, 16, 20 or 24 connectors, depending on model, these 'Ultra High Definition' BNC termination panels are intended for 12G 4K ultra high definition (2160P60), 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE ST 2082-1 making them suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz.

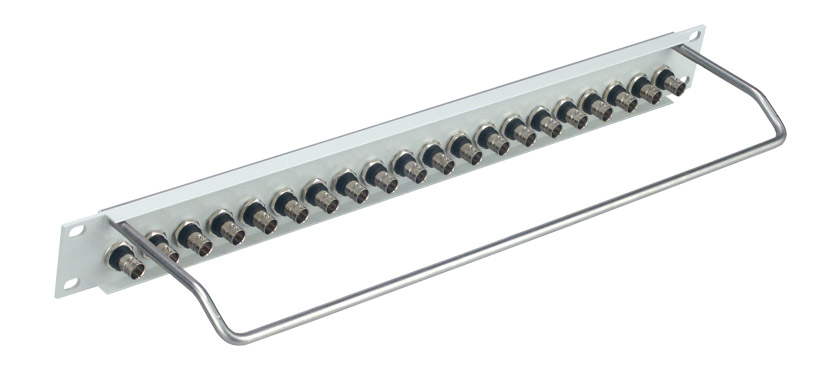

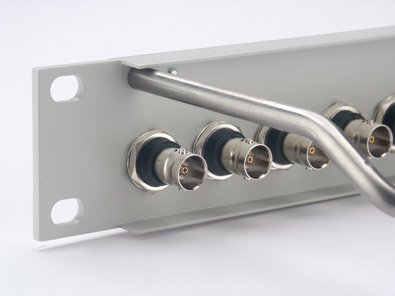

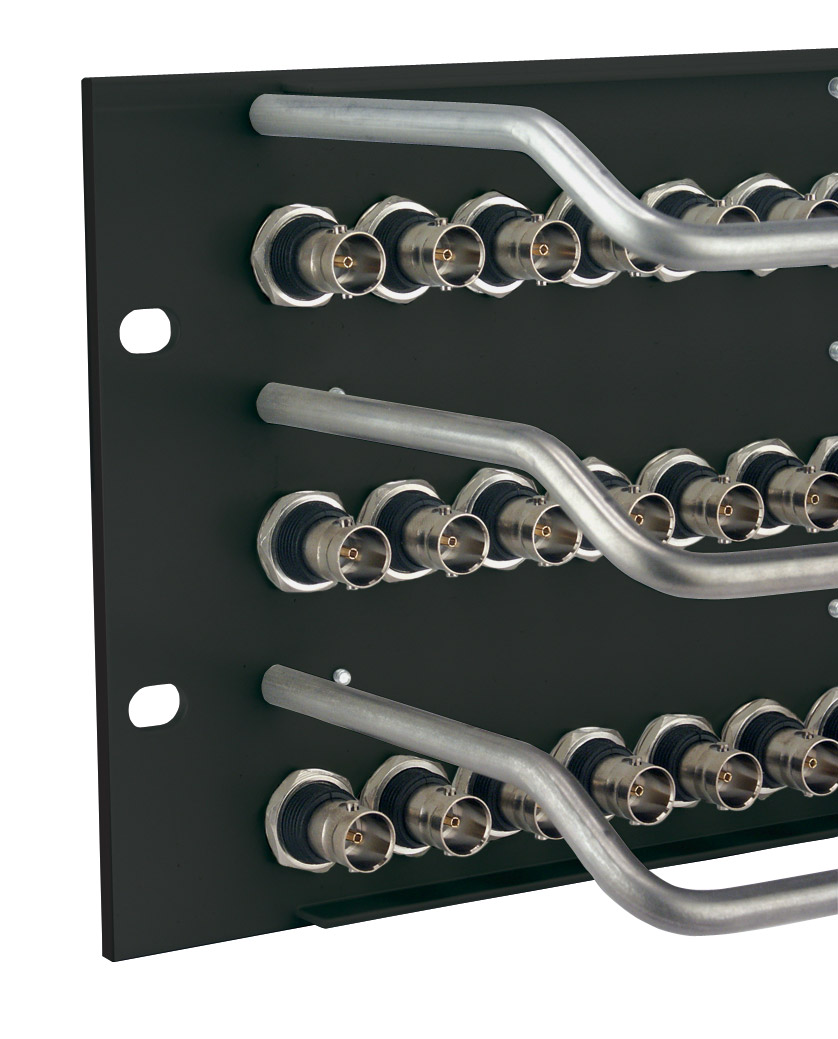

Manufactured from a rigid aluminium extrusion, the panels are fully-populated with Coax Connectors 'KORUS' double-sided, 'Ultra High Definition', 12G, 75 ohm sockets, equally spaced across the panel. To the rear, a cranked lacing-bar is fitted over each row of connectors, giving easy access to the sockets. On the front, above each row of connectors, sits a designation-strip holder with snap-on cover, allowing paper inserts, with 7.5mm of printable height, to be inserted before or after any installation.

Available finished in Dawn Grey (BS4800-10A03) or Black.

Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.

Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.

Description Price $
ex. VAT 		Add to basket
Delivery
CANFORD BNC TERMINATION PANEL 1U, 1x12, 12G 4K, grey Grey Stock code: 48-4751
9 in stock Need more?
1+ $92.84
5+ $89.13
CANFORD BNC TERMINATION PANEL 1U, 1x16, 12G 4K, grey Grey Stock code: 48-4752
32 in stock Need more?
1+ $108.63
5+ $104.29

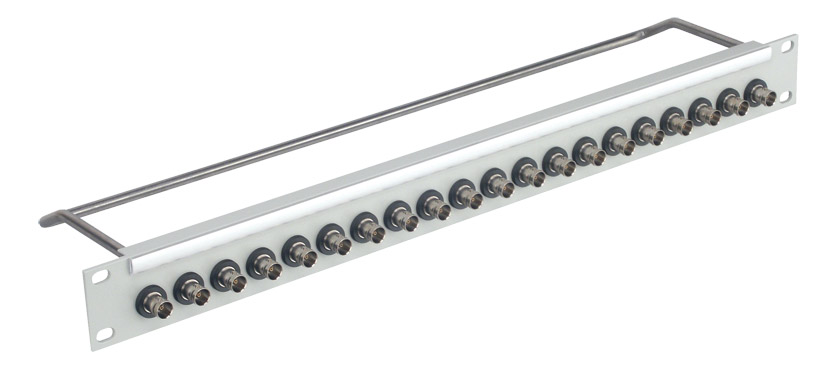

CANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, grey Grey Stock code: 48-4753
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $124.62
5+ $119.64
CANFORD BNC TERMINATION PANEL 1U, 1x24, 12G 4K, grey Grey Stock code: 48-4754
14 in stock Need more?
1+ $140.67
5+ $135.04

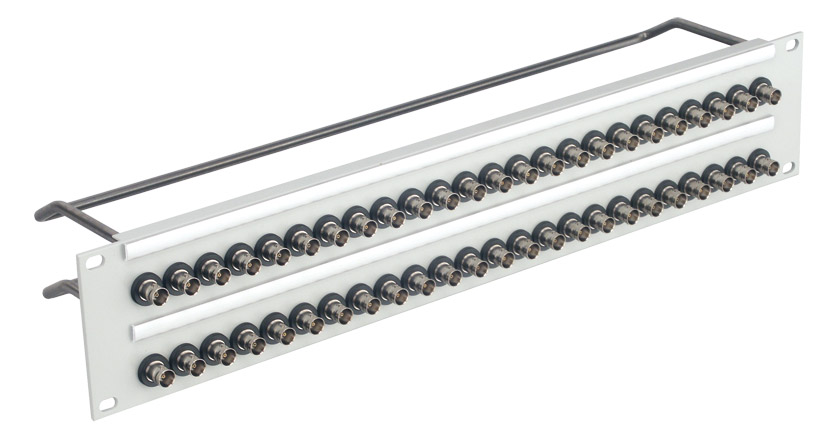

CANFORD BNC TERMINATION PANEL 2U, 2x12, 12G 4K, grey Grey Stock code: 48-4755
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $161.66
5+ $155.14
CANFORD BNC TERMINATION PANEL 2U, 2x16, 12G 4K, grey Grey Stock code: 48-4756
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $194.30
5+ $186.50
CANFORD BNC TERMINATION PANEL 2U, 2x20, 12G 4K, grey Grey Stock code: 48-4757
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $226.05
5+ $217.09
CANFORD BNC TERMINATION PANEL 2U, 2x24, 12G 4K, grey Grey Stock code: 48-4758
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $258.05
5+ $247.68
CANFORD BNC TERMINATION PANEL 3U, 3x12, 12G 4K, grey Grey Stock code: 48-4759
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $236.93
5+ $227.46
CANFORD BNC TERMINATION PANEL 3U, 3x16, 12G 4K, grey Grey Stock code: 48-4761
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $289.28
5+ $277.76
CANFORD BNC TERMINATION PANEL 3U, 3x20, 12G 4K, grey Grey Stock code: 48-4762
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $339.58
5+ $326.02
CANFORD BNC TERMINATION PANEL 3U, 3x24, 12G 4K, grey Grey Stock code: 48-4763
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $401.15
5+ $385.15

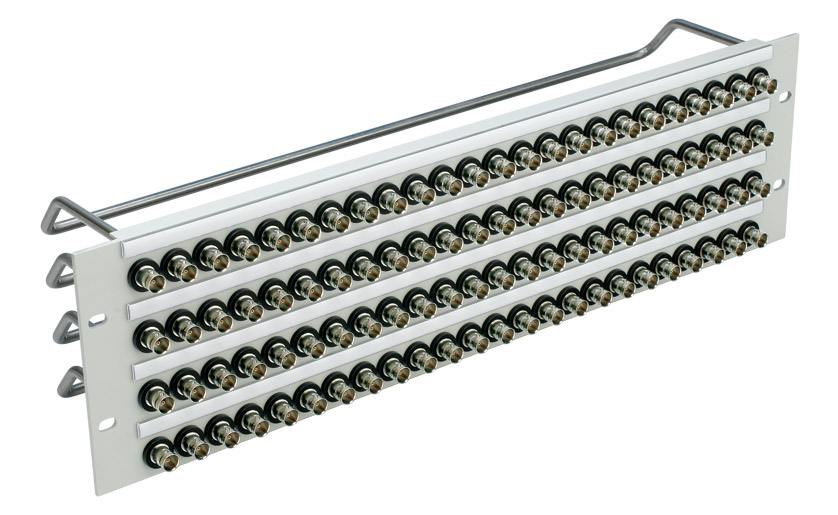

CANFORD BNC TERMINATION PANEL 3U, 4x12, 12G 4K, grey Grey Stock code: 48-4764
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $305.41
5+ $293.12
CANFORD BNC TERMINATION PANEL 3U, 4x16, 12G 4K, grey Grey Stock code: 48-4765
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $372.10
5+ $357.25
CANFORD BNC TERMINATION PANEL 3U, 4x20, 12G 4K, grey Grey Stock code: 48-4766
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $439.17
5+ $421.63
CANFORD BNC TERMINATION PANEL 3U, 4x24, 12G 4K, grey Grey Stock code: 48-4767
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $511.36
5+ $490.88
CANFORD BNC TERMINATION PANEL 1U, 1x12, 12G 4K, black Black Stock code: 48-4771
18 in stock Need more?
1+ $92.84
5+ $89.13
CANFORD BNC TERMINATION PANEL 1U, 1x16, 12G 4K, black Black Stock code: 48-4772
18 in stock Need more?
1+ $108.63
5+ $104.29
CANFORD BNC TERMINATION PANEL 1U, 1x20, 12G 4K, black Black Stock code: 48-4773
47 in stock Need more?
1+ $124.62
5+ $119.64
CANFORD BNC TERMINATION PANEL 1U, 1x24, 12G 4K, black Black Stock code: 48-4774
93 in stock Need more?
1+ $140.67
5+ $135.04
CANFORD BNC TERMINATION PANEL 2U, 2x12, 12G 4K, black Black Stock code: 48-4775
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $161.66
5+ $155.14
CANFORD BNC TERMINATION PANEL 2U, 2x16, 12G 4K, black Black Stock code: 48-4776
6 in stock Need more?
1+ $194.30
5+ $186.50
CANFORD BNC TERMINATION PANEL 2U, 2x20, 12G 4K, black Black Stock code: 48-4777
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
1+ $226.05
5+ $217.09
CANFORD BNC TERMINATION PANEL 2U, 2x24, 12G 4K, black Black Stock code: 48-4778
30 in stock Need more?
1+ $258.05
5+ $247.68
CANFORD BNC TERMINATION PANEL 3U, 3x12, 12G 4K, black Black Stock code: 48-4779
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $236.93
5+ $227.46
CANFORD BNC TERMINATION PANEL 3U, 3x16, 12G 4K, black Black Stock code: 48-4781
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $289.28
5+ $277.76
CANFORD BNC TERMINATION PANEL 3U, 3x20, 12G 4K, black Black Stock code: 48-4782
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $339.58
5+ $326.02

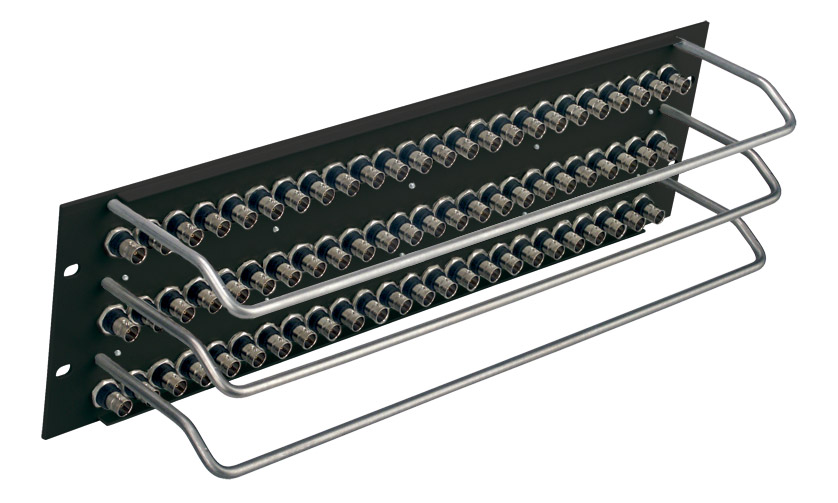

CANFORD BNC TERMINATION PANEL 3U, 3x24, 12G 4K, black Black Stock code: 48-4783
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $401.15
5+ $385.15
CANFORD BNC TERMINATION PANEL 3U, 4x12, 12G 4K, black Black Stock code: 48-4784
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $305.41
5+ $293.12
CANFORD BNC TERMINATION PANEL 3U, 4x16, 12G 4K, black Black Stock code: 48-4785
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $372.10
5+ $357.25
CANFORD BNC TERMINATION PANEL 3U, 4x20, 12G 4K, black Black Stock code: 48-4786
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $439.17
5+ $421.63
CANFORD BNC TERMINATION PANEL 3U, 4x24, 12G 4K, black Black Stock code: 48-4787
Manufactured to order, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
1+ $511.36
5+ $490.88
