These monitor units are for use in broadcast applications where there is a need for compact, rack-mounted confidence monitoring, taking up only 1U of rack space. They have, depending on model, balanced analogue inputs and AES/EBU, SDI, MADI or DANTE digital inputs, internal loudspeakers, level indication on bar-graph displays and control, configuration and monitoring via a web interface.
Discontinued
The MPA1 Solo DANTE offers DANTE connectivity through a single 1Gb/s, DANTE, AES67, RJ45 network port. It also has one 75 ohm BNC MADI input with optical SFP cage and one 75 ohm BNC MADI output. The MPA1 range incorporates accurate peak metering, typically used for tone line-up, displayed on two 2.4 inch OLED displays. Audio signals can also be monitored aurally, via the internal loudspeakers, with an average level of 90db at 1m, peak level of 100db at 1 metre and a frequency response of 200Hz to 20KHz. There is also a single headphone output, provided on an A gauge, 6.35mm jack socket. Alternatively, audio can also be routed to external speakers through a stereo, balanced-line output, via two, 3-pin male XLR connectors. Multiple feeds can be monitored easily using 'scroll to hear' functionality. Channels are selected by scrolling through the available inputs using a rotary control. Depressing the same control switches the currently selected input channel between mono and stereo.
Dimensions: 44 x 483 x 100 (H x W x D) mm. Weight: 1.5kg.
Required accessories: IEC power cable, see AC mains power leads.
Discontinued
With similar functionality to the MPA1 Solo DANTE, but without the DANTE network port, the MPA1 Solo MADI monitors a MADI stream. It has one 75 ohm, BNC, MADI input with optical SFP cage and one 75 ohm BNC MADI output. Eight analogue audio inputs are available via a 25-pin, D-sub connector, which can be configured as either eight mono or four stereo channels.
Dimensions: 44 x 483 x 100 (H x W x D) mm. Weight: 1.5kg.
Required accessories: IEC power cable, see AC mains power leads.
MPA1 Solo SDI

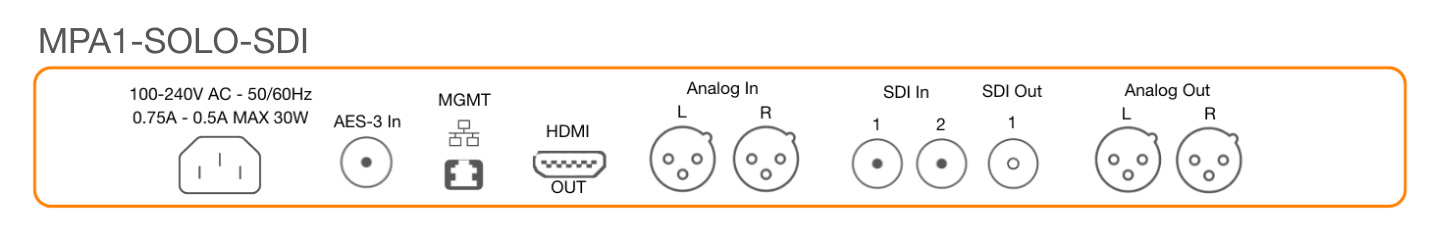

With similar functionality to the MPA1 Solo DANTE, but without the DANTE network port, and MADI I/O, the MPA1 solo SDI has two, auto-sensing 3G, HD, SD, SDI video inputs via BNC connectors (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz), one AES3 digital audio input via BNC and two balanced analogue inputs via XLR connectors. It can monitor the 16 embedded audio channels, and offers one SDI BNC output and an HDMI output with embedded audio for use with external displays in addition to the stereo, balanced-line output, via two, 3-pin male XLR connectors.
Dimensions: 44 x 483 x 100 (H x W x D) mm. Weight: 1.5kg.
Required accessories: IEC power cable, see AC mains power leads.
With similar functionality to the MPA1 Solo SDI, the MPA1 Solo IP has two, SFP cages allowing redundancy to ST-2022-6 or ST-2110 connected networks. These connections are in addition to the dual SDI in, AES3 connection, and analogue in way of 3-pin female XLR connectors. It can monitor the 16 embedded audio channels, and offers one SDI BNC output and an HDMI output with embedded audio for use with external displays in addition to the stereo, balanced-line output, via two, 3-pin male XLR connectors.
Dimensions: 45 x 483 x 100 (H x W x D) mm. Weight: 1.4kg.
Required accessories: IEC power cable, see AC mains power leads.
MPA1 Mix products make it possible for users to create their own monitor mix, by providing eight individual level controls for multiple audio sources which can be mixed together, offering mix and listen control, with nine mix 'pallets'. These 'mix pallets' can be labelled either manually or automatically, by reading from a networked audio stream. The MPA1 Mix DANTE connects to the network with a single 1Gb/s, DANTE, AES67, RJ45 network port. It also has one 75 ohm BNC MADI input with optical SFP cage and one 75 ohm BNC MADI output. Other than the extra controls, it has similar facilities to the other models in the range, with meters, internal loudspeakers, a headphone socket and a pair of balanced, line level outputs to feed external monitoring systems.
Dimensions: 44 x 483 x 100 (H x W x D) mm. Weight: 1.5kg.
Required accessories: IEC power cable, see AC mains power leads.
With similar functionality to the MPA1 Mix DANTE, but without the DANTE network port, the MPA1 Mix MADI monitors a MADI stream. It has one 75 ohm BNC MADI input with optical SFP cage and one 75 ohm BNC MADI output. Eight analogue audio inputs are available via a 25-pin, D-sub connector, which can be configured as either eight mono or four stereo channels.
Dimensions: 44 x 483 x 100 (H x W x D) mm. Weight: 1.5kg.
Required accessories: IEC power cable, see AC mains power leads.
With similar functionality to the MPA1 Mix DANTE, but without the DANTE network port, and MADI I/O, the MPA1 solo SDI has two, auto-sensing 3G, HD, SD, SDI video inputs via BNC connectors (23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz), one AES3 digital audio input via BNC and two balanced analogue inputs via XLR connectors. It can monitor the 16 embedded audio channels, and offers one SDI BNC output and an HDMI output with embedded audio for use with external displays in addition to the stereo, balanced-line output, via two, 3-pin male XLR connectors.
Dimensions: 44 x 483 x 100 (H x W x D) mm. Weight: 1.5kg.
Required accessories: IEC power cable, see AC mains power leads.
Discontinued
Simply consisting of two grilles for the loudspeakers, each of which have separate HF and LF drive units, crossing over at 2 kHz. The rear panel has four terminal posts with sockets for 4mm plugs.
Input: 20W peak to peak maximum, 8 ohms nominal. Frequency response: 120Hz-20kHz. Dimensions: 1U mounting, 200mm depth. Weight 6kg.
Dimensions: 44 x 483 x 100 (H x W x D) mm. Weight: 1.5kg
Included accessories Inline power supply with IEC input and PSU mounting bracket.
Optional accessories AC, IEC power cable.
Discontinued
This has the same loudspeakers as the MPA1-S, combined with a stereo power amplifier, quad source selector and a headphone output. The front panel has the same loudspeaker grilles as the MPA1-S. In the middle of the panel a rotary switch selects the input, an A-gauge, 6.35mm socket provides an output for headphones and a rotary volume control adjusts level. Inserting a jack in the headphone socket causes the loudspeakers to mute. Two 26-segment bar graph meters show the level of the selected source and an LED-illuminated switch indicates phase errors and provides a phase reverse facility. The meters are grouped with the controls in the centre of the panel; the scales are marked with both UK and EBU scales, or the scales displayed and the digital reference level can be set. The unit may also display either an EBU Digital or PPM scale and the reference level for the AES inputs may be set from -15dBFS to -24dBFS. Peak hold may be selected on or off. The rear panel has two pairs of XLR connectors providing balanced line level inputs and an additional pair for the two AES/EBU digital inputs. A coaxial socket is used for the external DC power supply input; a management bracket clips the PSU to the rear panel. The power supply is an inline type, with captive DC lead and IEC inlet for AC power.
Analogue audio inputs: 0dBu nominal, 20k ohms. AES/EBU digital inputs: AES3 at 48, 44.1or 32kHz, 110 ohms. Electrical distortion: Better than 0.1 percent. Hum and noise: Better than -80dBu. Headphone output: 47 ohms source for 8 to 600 ohms load. Acoustic output: 85dB SPL at 600mm. Power source: 12V DC, 30W maximum from included external power supply, 100 - 240V AC, 50 and 60Hz.
Dimensions: 44 x 483 x 200 (H x W x D) mm. Weight: 6kg
Included accessories: Manual, inline power supply with IEC input. AC power cable not supplied.
Required accessories: AC power cable.
Compatible with MPA1 SOLO IP, PAM1 IP 3G and PAM2 IP 3G precision monitoring units, these field upgradeable, single ST-2110 SFP module cover the full suite of 2110 monitoring including audio, video, and PTP; with option for additional NMOS or EMBER+ band control protocol support. There is a maximum of two ST-2110 modules per device, and multi-mode fibre connection required.
