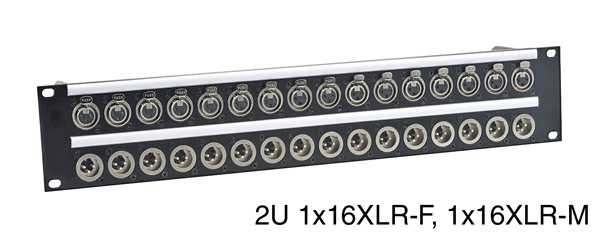

CANFORD CONNECT XLR TERMINATION PANEL 2U 1x16 Canford XLRF (t), 1x16 Canford XLRM (b), black

Stock code
45-4309
Brand
Canford Connect
Colour
  • BlackBlack
CANFORD CONNECT XLR TERMINATION PANEL 2U 1x16 Canford XLRF (t), 1x16 Canford XLRM (b), black
CANFORD CONNECT XLR TERMINATION PANEL 2U 1x16 Canford XLRF (t), 1x16 Canford XLRM (b), blackCANFORD CONNECT XLR TERMINATION PANEL 2U 1x16 Canford XLRF (t), 1x16 Canford XLRM (b), blackCANFORD CONNECT XLR TERMINATION PANEL 2U 1x16 Canford XLRF (t), 1x16 Canford XLRM (b), black

Order

VAT / Delivery
$204.88
each (ex. VAT)
5+ $196.63
Out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
Canford 2 year warranty
RoHS Compliant

XLR TERMINATION PANELS - Flat and Angled, Canford and Neutrik XLR connectors

A range of flat and angled audio termination panels supplied fully populated with either Canford or Neutrik ‘D’ series XLR connectors. Nine combinations of 3-pin XLR male and latching female connectors are available as standard. All have nickel-plated shells and silver-plated contacts and are mounted from the rear of the panel.

Flat Panels

Manufactured from a rigid aluminium extrusion, available in 1U, 2U and 3U combinations, these panels are both lightweight and extremely rigid. Panels are fitted with a cranked lacing-bar for each row of connectors giving easy access to the rear of the connectors.

Angled Panels

Manufactured from a unique profile aluminium-extrusion with integral rear bracing-bar. The front face of the panel is angled down by 7.5 degrees from vertical, relieving stress on mated cables and maintaining clear access at the rear. These 2U panels offer the highest possible packing density and are both lightweight and extremely rigid. Panels are fitted with a short, cranked, lacing-bar, extending only 65mm from the rear of the panel to allow for tight cable routing.

A snap-on cover designation-strip holder is fitted above each connector row to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Available finished in Dawn Grey (BS4800-10A03) or Black.

Flat Panels
Size Connector Orientation Neutrik Connectors Canford Connectors Colour
1U 1x16 XLRF 45-3300 45-4300 Grey
1U 1x16 XLRF 45-3301 45-4301 Black
1U 1x16 XLRM 45-3302 45-4302 Grey
1U 1x16 XLRM 45-3303 45-4303 Black
1U 1x8 XLRF (left), 1x8 XLRM (right) 45-3320 45-4320 Grey
1U 1x8 XLRF (left), 1x8 XLRM (right) 45-3321 45-4321 Black
1U 1x8 XLRM (left), 1x8 XLRF (right) 45-3324 45-4324 Grey
1U 1x8 XLRM (left), 1x8 XLRF (right) 45-3325 45-4325 Black
2U 2x16 XLRF 45-3304 45-4304 Grey
2U 2x16 XLRF 45-3305 45-4305 Black
2U 2x16 XLRM 45-3306 45-4306 Grey
2U 2x16 XLRM 45-3307 45-4307 Black
2U 1x16 XLRF (top), 1x16 XLRM (bottom) 45-3308 45-4308 Grey
2U 1x16 XLRF (top), 1x16 XLRM (bottom) 45-3309 45-4309 Black
2U 1x16 XLRM (top), 1x16 XLRF (bottom) 45-3322 45-4322 Grey
2U 1x16 XLRM (top), 1x16 XLRF (bottom) 45-3323 45-4323 Black
3U 3x16 XLRF 45-3310 45-4310 Grey
3U 3x16 XLRF 45-3311 45-4311 Black
3U 3x16 XLRM 45-3312 45-4312 Grey
3U 3x16 XLRM 45-3313 45-4313 Black
Angled Panels
Size Connector Orientation Neutrik Connectors Canford Connectors Colour
2U 2x16 XLRF 45-3314 45-4314 Grey
2U 2x16 XLRF 45-3315 45-4315 Black
2U 2x16 XLRM 45-3316 45-4316 Grey
2U 2x16 XLRM 45-3317 45-4317 Black
2U 1x16 XLRF (top), 1x16 XLRM (bottom) 45-3318 45-4318 Grey
2U 1x16 XLRF (top), 1x16 XLRM (bottom) 45-3319 45-4319 Black

For Canford cable XLR connectors, Canford Panel mount XLR connectors and ready-made cable assemblies utilising Canford XLR connectors.
see CANFORD CONNECT - XLR PANEL CONNECTORS
see CANFORD CONNECT - XLR CABLE CONNECTORS
see CANFORD CONNECT XLR - XLR CABLES, HST, 3-PIN Canford XLR

For Neutrik cable XLR connectors, Neutrik Panel mount XLR connectors and ready-made cable assemblies utilising Neutrik XLR connectors.
see XLR connectors - Panel
see XLR connectors - Cable
see CANFORD XLR - XLR CABLES, HST, 3-PIN NEUTRIK XLR Nickel shell

Custom Layouts

Custom connector populations and layouts, as well as engraving and screen printing are available to special order. For further information or a quotation please contact the custom metalwork team via email, custommetal@canford.co.uk. Alternatively contact Sales. A minimum quantity or charge may apply.

Manufactured by Canford.
