EMO E616 POWER DISTRIBUTION PANEL

Stock code
42-616
Brand
EMO
Model number
  • E616
EMO E616 POWER DISTRIBUTION PANEL
EMO E616 POWER DISTRIBUTION PANELEMO E616 POWER DISTRIBUTION PANELEMO E616 POWER DISTRIBUTION PANELEMO E616 POWER DISTRIBUTION PANEL

EMO POWER DISTRIBUTION PANELS

This range of modern 1U and 2U rack-mounting panels and floor boxes have been engineered by Canford specifically to provide a versatile, robust and safe solution suitable for powering a diverse combination of equipment. They are more commonly used in mobile racks and flight cases for temporary installations in live entertainment, including theatre, touring systems, location recording and outside broadcast work, though their unique design and configuration makes them also equally suited to many fixed installs.

1U Models (E611, E612, E613, E614, E615)

A choice of 20 Amp Powercon, 16 Amp Powercon TOP and 10Amp locking IEC input and output connector options housed in a compact robust, 1U steel enclosure for ‘on the road’ applications where size and weight considerations are paramount.

All models have LED "traffic light" indicators to show Supply Present, Earth Present and Neutral Fault status which can be disabled via a rocker switch for low light on stage use and to enable PAT testing. All output connectors are wired via overcurrent thermal circuit breakers. Earth grounding points feature on the rear of all models as standard. 100mm depth rear steel enclosure.

Code Model Inlet Front Panel Rear Panel
42-611 E611 20A Powercon In/Loop Out 2 x 20A Powercon, 10 x 10A IEC Lock,
10A & 20A overcurrent thermal circuit breakers 3 x 20A Powercon
42-612 E612 16A Powercon TOP In/Loop Out 4 x 16A Powercon TOP, 6 x 10A IEC Lock,
10A & 20A overcurrent thermal circuit breakers 4 x 16A Powercon TOP
42-613 E613 16A Powercon TOP In/Loop Out 4 x 16A Powercon TOP, 8 x 16A Powercon TOP
20A overcurrent thermal circuit breaker
42-614 E614 20A Powercon In/Loop Out 4 x 20A Powercon, 6 x 10A IEC Lock,
10A & 20A overcurrent thermal circuit breakers 4 x 20A Powercon
42-615 E615 20A Powercon In/Loop Out 4 x 20A Powercon, 12 x 20A Powercon
20A overcurrent thermal circuit breaker

2U 16A Models (E616, E617, E671, E672)

These 2U units are constructed from a substantial steel enclosure and come fitted with a 16 Amp CEEform inlet for power in and a directly wired loop-out outlet to supply additional panels mounted in other enclosures. This means that several mobile racks may be powered from a single source. Alternatively power may be fed off to suitable distribution strips.

A unique feature of the 16 Amp versions is the recess above the inlet connector which allows the sprung cap of the mating CEEform cable socket to fit into the panel, avoiding interference with the equipment above and providing the latching facility necessary to avoid accidental disengagement of the connector.

Outputs are via a mixture of UK BS1363 13 Amp, Shuko 16 Amp and 10 Amp locking IEC sockets.

All models have LED "traffic light" indicators to show Supply Present, Earth Present and Neutral Fault status which can be disabled via a rocker switch for low light on stage use and to enable PAT testing. BS1363 13 Amp mains outlets are arranged to avoid power cords interfering with adjacent hardware and also support the use of plug-top power supplies. All output connectors are wired via overcurrent thermal circuit breakers. Earth grounding points feature on the rear of all models as standard. 100mm depth rear steel enclosure.

Code Model Inlet Front Panel Rear Panel

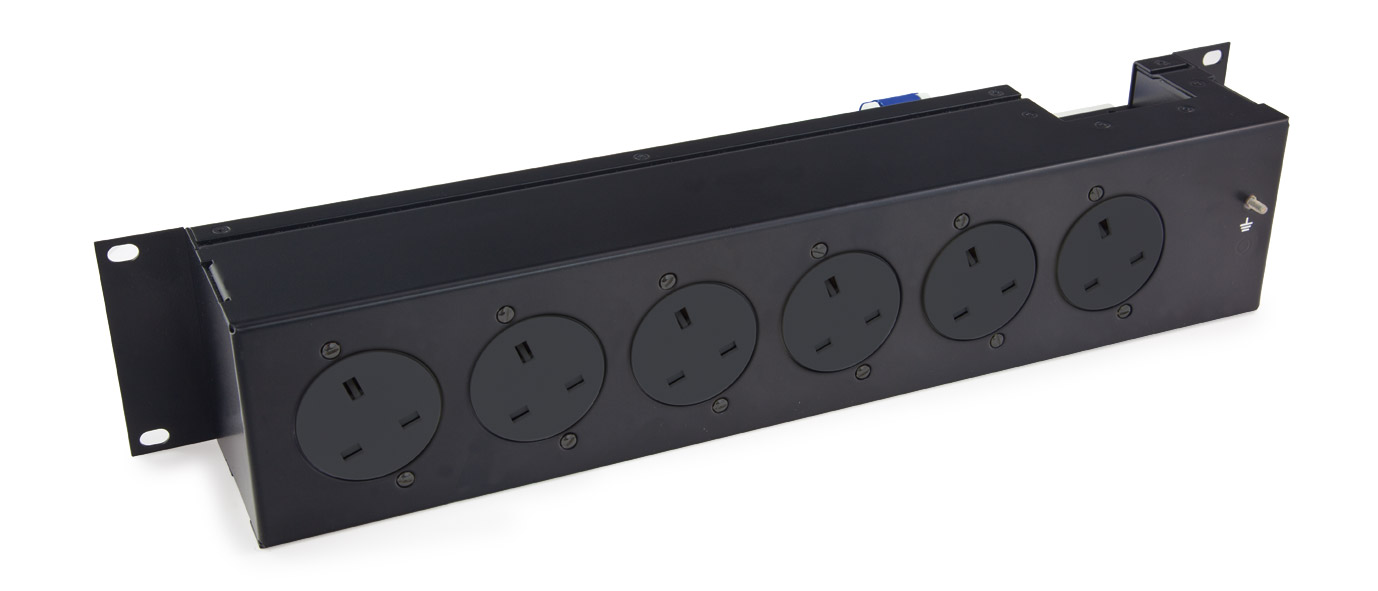

42-616 E616 16A CEEform In/Loop Out 3 x UK 13A, 6 x UK 13A
15A overcurrent thermal circuit breaker
42-617 E617 16A CEEform In/Loop Out 3 x UK 13A, 12 x 10A locking IEC,
10A & 15A overcurrent thermal circuit breakers 3 x UK 13A
42-671 E671 16A CEEform In/Loop Out 3 x Shuko 16A, 6 x Shuko 16A
15A overcurrent thermal circuit breaker
42-672 E672 16A CEEform In/Loop Out 3 x Shuko 16A, 12 x 10A locking IEC,
10A & 15A overcurrent thermal circuit breakers 3 x Shuko 16A

2U 32A Model (E618, E673)

Very similar in design and function to the 16 Amp versions, the E618 32 Amp model is designed for use with higher power equipment such as amplifiers. The front panel is fitted with one 32 Amp CEEform inlet and a directly wired loop-out outlet, 2 x 20A Powercon outputs and either one UK 13 Amp or Shuko 16A output, plus overcurrent thermal circuit breakers and LED "traffic light" power status indicators as per the 16 Amp models.

The rear panel offers 12 x 10 Amp overcurrent protected locking IEC outputs with an overall current limit of 10 Amps, plus 12 x 20 Amp overcurrent protected Powercon outputs with an overall current limit of 20 Amps. 100mm depth rear steel enclosure.

The 32 Amp version, featuring a straight inlet and loop outlet, has the latch on the inlet body.

Code Model Inlet Front Panel Rear Panel
42-618 E618 32A CEEform In/Loop Out 1 x UK 13A, 2 x 20A Powercon, 12 x 10A locking IEC,
15A & 20A overcurrent thermal circuit breakers 12 x 20A Powercon
42-673 E673 32A CEEform In/Loop Out 1 x Shuko 16A, 2 x 20A Powercon, 12 x 10A locking IEC,
15A & 20A overcurrent thermal circuit breakers 12 x 20A Powercon
