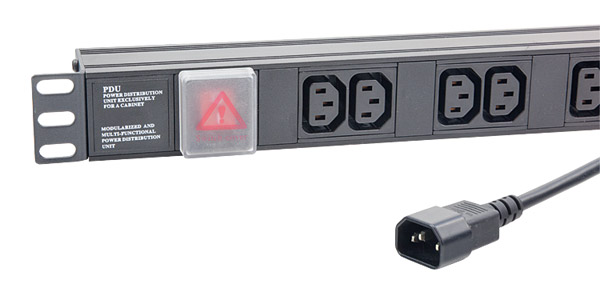

CANFORD PDU Economy, 1U horizontal, 16-way IEC, IEC14 plug

Stock code
42-6274
Brand
Canford
GTIN
5056704720459
CANFORD PDU Economy, 1U horizontal, 16-way IEC, IEC14 plug
CANFORD PDU Economy, 1U horizontal, 16-way IEC, IEC14 plug

CANFORD RACK POWER DISTRIBUTION UNITS - Universal - Economy

A range of rackmount power distribution units available with a variety of connector types. All units have extruded aluminium housing, and are finished in black.

All types have a neon rocker-switch, complete with cover, rear earth-stud, and captive input cable terminated with an IEC14, 3-pin UK plug, or 16A or 32A industrial plugs. The UK terminated models are protected with a 13A fuse; IEC14 and industrial models are not fused.

Stock code Mounting No. of sockets Power plug Cable length (m) Surge protected Input rating Height
42-6231 Horizontal 6 x UK UK 3.0 No 13A 1U
42-6232 Horizontal 6 x UK UK 3.0 Yes 13A 1U
42-6233 Vertical 8 x UK UK 3.0 No 13A 555mm
42-6234 Vertical 8 x UK UK 3.0 Yes 13A 655.6mm
42-6235 Vertical 10 x UK UK 3.0 No 13A 660mm
42-6236 Vertical 10 x UK UK 3.0 Yes 13A 775mm
42-6237 Vertical 12 x UK UK 3.0 No 13A 805mm
42-6238 Vertical 12 x UK UK 3.0 Yes 13A 805mm
42-6239 Vertical 16 x UK UK 3.0 Yes 13A 1075mm
42-6240 Vertical 20 x UK UK 3.0 Yes 13A 1280mm
42-6281 Horizontal 4 x UK 16A 3.0 No 16A 1U
42-6241 Horizontal 6 x UK 16A 3.0 Yes 16A 1U
42-6283 Vertical 4 x UK 16A 3.0 No 16A 475mm
42-6242 Vertical 10 x UK 16A 3.0 No 16A 660mm
42-6243 Vertical 12 x UK 16A 3.0 No 16A 765mm
42-6244 Vertical 12 x UK 16A 3.0 Yes 16A 806mm
42-6286 Vertical 15 x UK 16A 3.0 No 16A 920mm
42-6291 Horizontal 4 x UK 32A 3.0 No 32A 1.5U
42-6245 Horizontal 6 x UK 32A 3.0 Yes 32A 1U
42-6293 Vertical 4 x UK 32A 3.0 No 32A 490mm
42-6247 Vertical 10 x UK 32A 3.0 No 32A 885mm
42-6248 Vertical 12 x UK 32A 3.0 No 32A 765mm
42-6249 Vertical 12 x UK 32A 3.0 Yes 32A 877mm
42-6296 Vertical 16 x UK 32A 3.0 No 32A 1090mm
42-6251 Horizontal 6 x UK IEC14 3.0 No 10A 1U
42-6252 Vertical 8 x UK IEC14 3.0 No 10A 555mm
42-6253 Vertical 12 x UK IEC14 3.0 No 10A 765mm
42-6261 Horizontal 6 x IEC13 UK 3.0 No 13A 1U
42-6262 Horizontal 8 x IEC13 UK 3.0 No 13A 1U
42-6264 Horizontal 12 x IEC13 UK 3.0 No 13A 1U
42-6271 Horizontal 6 x IEC13 IEC14 3.0 No 10A 1U
42-6272 Horizontal 8 x IEC13 IEC14 3.0 No 10A 1U
42-6273 Horizontal 12 x IEC13 IEC14 3.0 No 10A 1U
42-6274 Horizontal 16 x IEC13 IEC14 3.0 No 10A 1U
42-6275 Vertical 16 x IEC13 IEC14 3.0 No 10A 475mm
