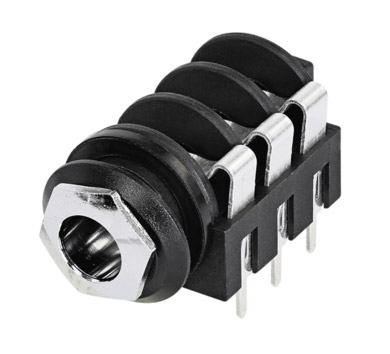

These solder connection and horizontal PCB mounting panel mount 6.35mm jacks offer a wide variety of combinations of contacts and mounting options. They are available in mono and stereo versions with switching and non-switching contacts, and three nose types - fully threaded, half threaded and chrome ferrule.
Fully-threaded and chrome-nose jacks are supplied with washer and fixing nut. Half-threaded nose types are NOT supplied with washer and fixing nut, so mounting hardware should be ordered separately as required.
| NMJ2 is 2-pole (mono) with unswitched contacts |
| NMJ3 is 3-pole (stereo) with unswitched contacts |
| NMJ4 is 2-pole (mono) with switched contacts |
| NMJ6 is 3-pole (stereo) with switched contacts |
Versions available
| HC-S |
Chrome ferrule, solder lugs |
| HCD2 |
Chrome ferrule, straight PCB pins |
| HCD3 |
Chrome ferrule, offset PCB pins |
| HF-S |
Fully threaded nose, solder lugs |
| HFD2 |
Fully threaded nose, straight PCB pins |
| HFD2-AU |
Fully threaded nose, straight PCB pins, gold plated contacts |
| HFD3 |
Fully threaded nose, offset PCB pins |
| HFD4 |
Fully threaded nose, fishtail PCB pins |
| HHD2 |
Half threaded nose, straight PCB pins |
