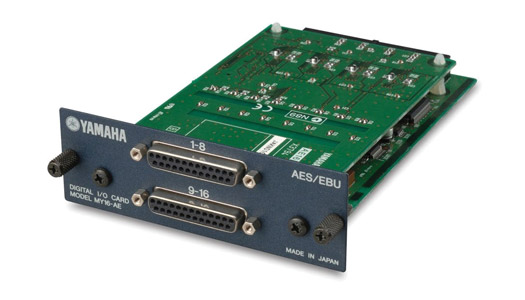

YAMAHA MY16-AE INTERFACE CARD Digital, 16-in/16-out AES/EBU, 2x 25-pin D-sub connectors

Stock code
95-055
Brand
Yamaha
Model number
  • MY16AE
YAMAHA MY16-AE INTERFACE CARD Digital, 16-in/16-out AES/EBU, 2x 25-pin D-sub connectors
YAMAHA MY16-AE INTERFACE CARD Digital, 16-in/16-out AES/EBU, 2x 25-pin D-sub connectors

Order

VAT / Delivery
$1,331.20
each (ex. VAT)
Ordered on demand, available in Call.
RoHS Compliant

YAMAHA INTERFACE CARDS

A range of analogue and digital interface options, including the popular MY (Mini-YGDAI) and PY series interface cards. These cards enable existing, compatible hardware to be expanded in terms of I/O capabilities.

DANTE CARDS

DANTE-MY16-AUD2

A Yamaha Mini-YGDAI interface card that enables a compatible Yamaha mixing console, processor, or power amp to communicate via Dante. DANTE-MY16-AUD2 provides sixteen bidirectional audio channels with full audio redundancy, supporting sample rates of 44.1kHz, 48kHz, 88.2kHz, and 96kHz.

Latency can be selected from 0.25/0.5/1.0/2.0/5.0ms presets. Connections include 2x RJ45 Dante I/O sockets (primary and secondary), 1x 9-pin D-sub connector for RS232-C. Multiple cards can be daisy-chained via the secondary Ethernet port. The card can also be PIN-locked and unlocked via the Dante Control software.

ANALOGUE CARDS

MY8-ADDA96

Yamaha MY8-ADDA96 is a MY (Mini-YGDAI) series interface card for use with compatible mixing consoles. The card allows 24bit resolution, 96kHz compatible, 8x8 analogue I/O via Euroblock style connectors. The maximum input and output level before clip is +24dBu.

MY8-AD24

Yamaha MY8-AD24 is an analogue interface card that offers an additional eight inputs via balanced 6.35mm TRS jack connections. The inputs are 24bit resolution and have a maximum input level of +24dBu/+4dBV before clip.

DIGITAL CARDS

MY8-AT

Yamaha MY8-AT provides eight channels of audio input and output in ADAT format. Resolution is 24bit at 8x8 I/O, or 4x4 I/O at 96kHz, and I/O is via two optical connectors.

MY16-AT

Yamaha MY16-AT provides sixteen channels of audio input and output in ADAT format. Resolution is 24bit at 16x16 I/O, or 8x8 I/O at 96kHz, and I/O is via four optical connectors.

MY8-AE

Yamaha MY8-AE provides eight channels of input and output in AES/EBU format on a D-sub 25-way female connector. It has 24bit resolution for the 8x8 I/O, or 96kHz for 4x4 I/O.

MY16-AE

Yamaha MY16-AE provides sixteen channels of input and output in AES/EBU format via two D-sub 25-way female connectors. It has 24bit resolution for the 16x16 I/O, or 96kHz for 8x8 I/O.

PY8-AE

Yamaha PY8-AE audio interface card provides AES/EBU connectivity, handling up to 8 input and 8 output channels of 96kHz/24-bit digital audio. The onboard sample rate converters for the input channels allow connection between devices operating at different sampling rates. Connections are via a single 25-hole D-sub connection.

PY64-MD

Yamaha PY64-MD provides MADI connectivity, handling up to 64 input and 64 output channels of 96kHz/24-bit digital audio. The onboard sample rate converters allow interconnection between devices operating at different sampling rates. MADI input is via 2x BNC connectors with SRC with 64-channels on each terminal. MADI output is also via 2x BNC connectors with SRC with 64-channels on each terminal. A fifth BNC connection allows for wordclock in for SRC.

CONTROL CARDS

PY-MIDI-GPI

Yamaha PY-MIDI-GPI interface card provides MIDI and GPI connectivity, as is equipped with two MIDI 5-pin DIN connectors and a single 15-hole D-sub connector that can handle up to 5 input and 5 output channels of GPI. PY-MIDI-GPI extends the scope of host device connections that can be controlled.
