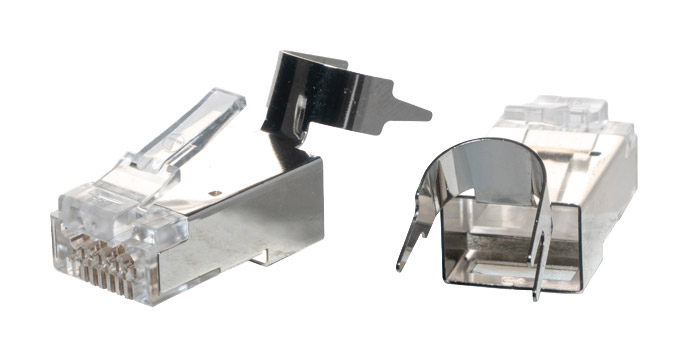

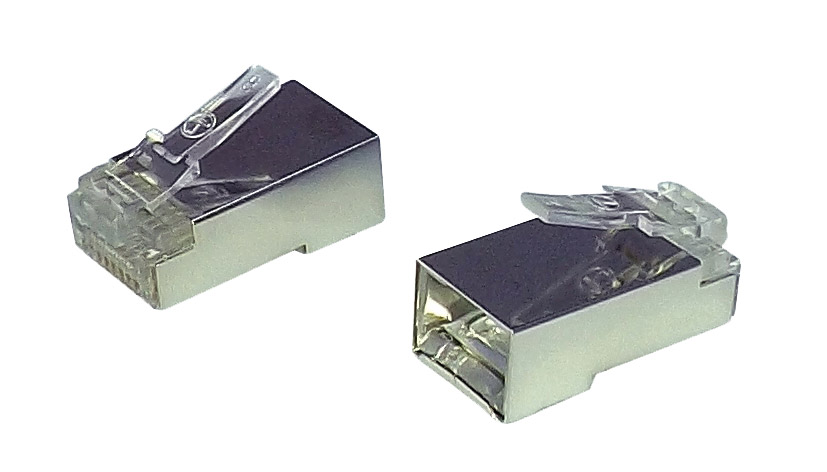

The SPEEDYRJ45 range is designed to simplify twisted-pair terminations by allowing the wires to be inserted through the connectors and out of the front. This allows the technician to easily verify the proper wiring order before crimping the connector, reducing wastage and time. Versions are available for unscreened and screened Cat5E, Cat6, and Cat6A and are suitable for use with both solid and stranded wire.

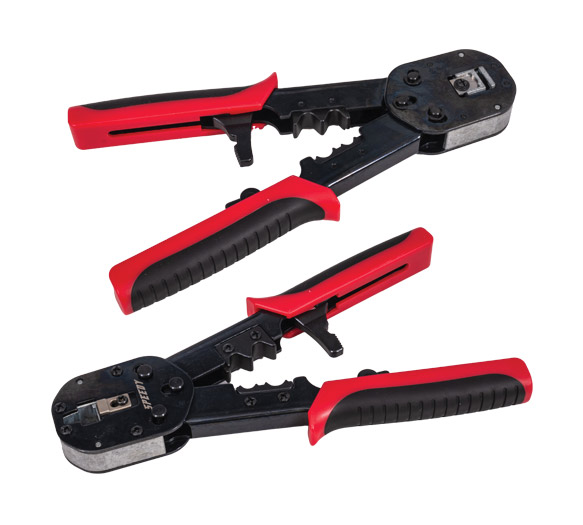

Assembly technique: Strip the cable sheath and untwist the pairs down to the sheath-point in the standard way for RJ45 connectors, then insert the wires through the connector (trimming them on a diagonal after getting the eight wires laid flat, ready for insertion). Having checked they are in the correct positions, twisting the loose ends all together helps push the connector body down tightly onto the cable, seating it tightly in the rear of the connector. The special crimp-tools (TRCSPDY4, TRCSPDY2 or TRCSPDY5) crimps the connector contacts and trims the surplus wire in a single operation.

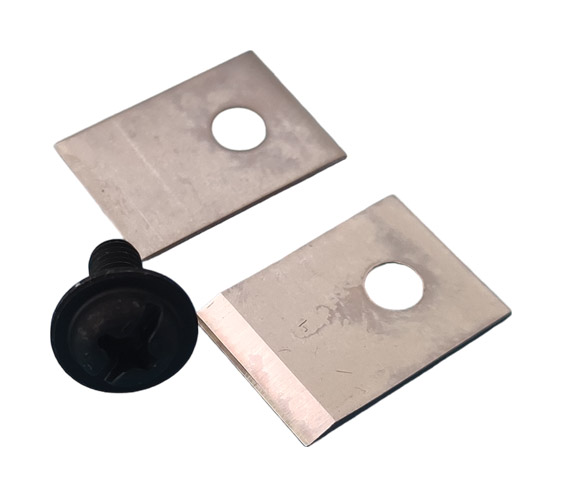

Note: It is recommended that the trimming blade on the crimp tools are renewed after every 500 terminations.
