TASCAM AUDIO INTERFACES

4 items

TASCAM US-16X08 USB AUDIO INTERFACE 16-in/8-out, 96kHz/24-bit, with MIDI I/O

TASCAM US-1X2HR USB AUDIO INTERFACE 2-in/2-out, 192kHz/24-bit

TASCAM US-2X2HR USB AUDIO INTERFACE 2-in/2-out, 192kHz/24-bit

TASCAM US-4X4HR USB AUDIO INTERFACE 4-in/4-out, 192kHz/24-bit

US-16X08

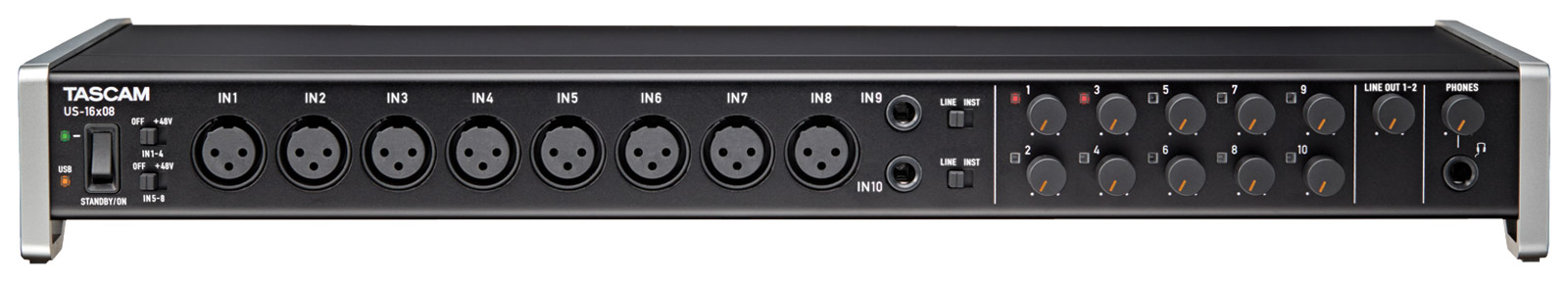

US-16x08

Tascam US-16x08 interface offers a combination of 16 microphone and line inputs. With recording capability up to 96kHz/24-bit, the eight microphone preamps provide ‘clean and quiet’ operation while delivering up to 56dB of gain. An additional eight balanced line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.

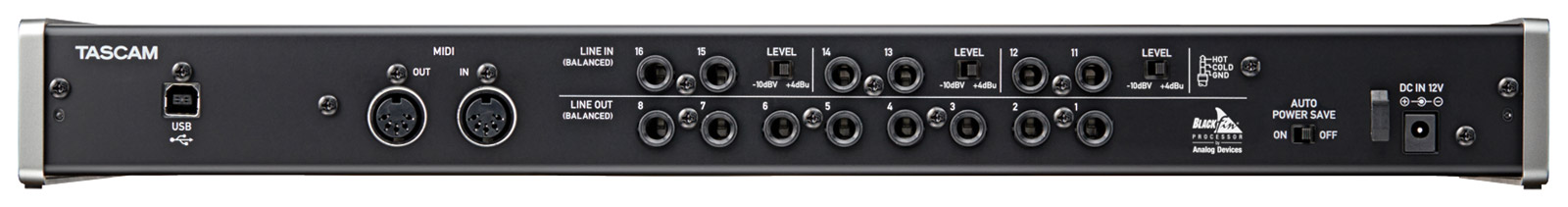

When no USB connection is recognised, US-16x08 can be used as a microphone preamplifier in standalone mode. In this mode, the signals from the XLR inputs on the front are output from the TRS jacks on the rear of the unit. Tested with Sonar, ProTools, Cubase, Live, Studio One, and Garage Band, the interface includes MIDI inputs and outputs so that they can also be used as MIDI interfaces.

Using the same preamps as used in the Tascam HS-P82 professional recorders, the interface can handle both condenser and dynamic mics. The ‘versatile’ preamps also feature line-level inputs for keyboards and other equipment. US-16x08 also features a built-in DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes.

Windows and Mac drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like the Apple iPad. MIDI input and output are also available on the rear panel.

Supported Operating Systems

Windows: Windows 11 (version 22H2), Windows 11 (version 22H1), Windows 10 (version 22H2), Windows 10 (November 2021, version 21H2) Windows 10 (May 2021, version 21H1), Windows 8.1, Windows 8, Windows 7.
Mac: macOS Ventura (13.0), macOS Monterey (12.0), macOS Big Sur (11.0), macOS Catalina (10.15), macOS Mojave (10.14), macOS High Sierra (10.13), macOS Sierra‎ (10.12), OS X El Capitan (10.11), OS X Yosemite (10.10), OS X Mavericks (10.9), OS X Mountain Lion (10.8).
iOS: iOS 15/iPadOS 15, iOS 14/iPadOS 14, iOS 13/iPadOS 13, iOS 12, iOS 11, iOS 8, iOS 7.

Sampling frequencies: 44.1/48/88.2/96 kHz. Quantization bit depth: 16-bit or 24-bit. Mic inputs 1-8: Balanced 3-pin XLR. Input impedance: 2.4 kohms. Rated input level: −68 dBu, 0.0003 Vrms, gain knob max. Rated input level: −12 dBu, 0.195 Vrms, gain knob min. Maximum input level: +8 dBu (1.947 Vrms). Maximum gain: 56 dB. Headphones output: 6.3-mm standard stereo jack. Maximum output power: 70 mW + 70 mW (THD+N less than or equal to 1%, 32 ohms). Output impedance: 51.5 ohms. Load impedance: 16–600 ohms. Frequency response (input to headphones output): 20 Hz – 20 kHz, +/-1.0 dB (JEITA), 44.1 kHz and 48 kHz; 20 Hz – 40 kHz, +/-2.0 dB (JEITA), 88.2 kHz and 96 kHz. Other inputs/outputs: MIDI 5-pin DIN connector. USB: type-B. Mic preamp EIN (equivalent input noise): −125 dBu or more. Frequency response (input to line output): 20 Hz – 20 kHz, +/-0.5 dB (JEITA), 44.1 kHz and 48 kHz; 20 Hz – 40 kHz, +/-0.5 dB (JEITA), 88.2 kHz and 96 kHz. S/N ratio: 100 dB or higher. Distortion: 0.006% or less. Power consumption: 12W. Dimensions (WxHxD): 445 × 59 × 219 mm. Weight: 2.8 kg.

US-1X2HR

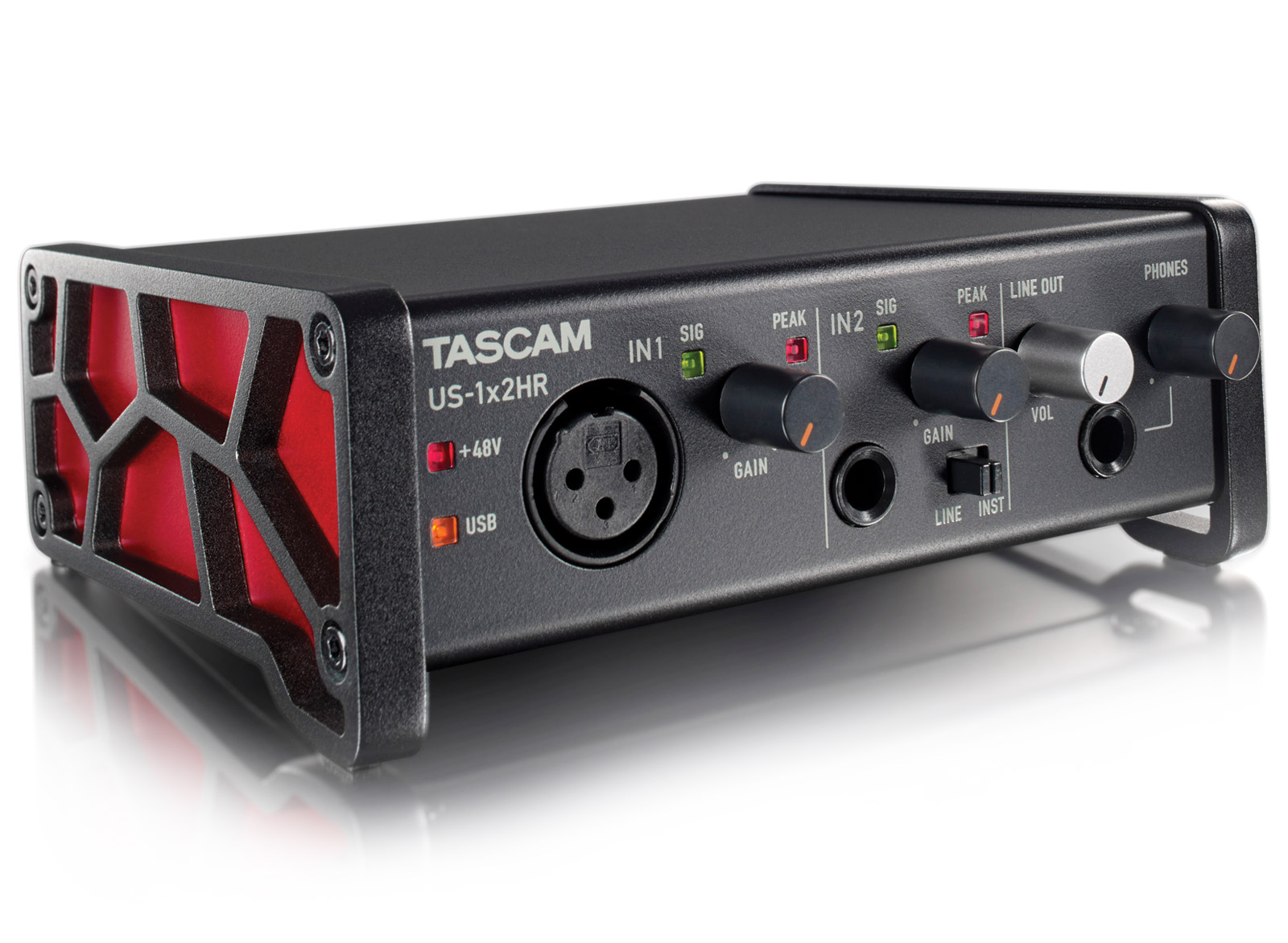

US-1x2HR

Discontinued

Tascam US-1x2HR is the smallest member of the Tascam US-HR series USB audio interfaces. With ‘HR’ denoting ‘high-resolution’, this interface has one mic and one instrument input and is therefore particularly suitable for simple 2-channel recording with a computer. US-1x2HR is also suitable for podcast creation and live streaming due to the included loopback function and support for Open Broadcaster Software (OBS Studio). The interface weight 623g and is therefore suitable for mobile recording and production using an iPhone or iPad with the included Cubasis LE. Note: an optional BP-6AA battery pack or AC adapter is required when used with iPhone or iPad.

The balanced, 3-pin XLR mic input on the US-1x2HR can provide 48-volts phantom power to condenser mics and it offers gain up to 57dB for compatibility with dynamic mics. US-1x2HR offers an instrument input for direct connection of an electrical guitar or bass. This means you can record or stream your instrument without the need for an instrument amplifier. You can also connect external equipment to the US-1x2HR like a cassette deck, CD player or smartphone using a conversion cable.

From the Settings Panel, which is installed on your computer, the user can choose whether direct monitoring is done in mono or stereo and adjust the balance between input and computer signals. You can also switch the hardware inputs on and off individually and set the Windows buffer size according to your working environment. For online broadcasting, internet communication and other live streaming applications, US-HR series interfaces offer a Loopback function which can merge input signals 1/2 with signals 1/2 coming from the computer. These can be set to mono or stereo and send the mix to the broadcasting or other software on the computer. A software slider allows to adjust the final ‘broadcast’ volume independently from the unit’s line output level setting.

When used with a computer, US-1x2HR is powered by USB so a separate power supply is not required. If the unit is connected to an iPhone or iPad an optional PS-P520E, 5V power supply or BP-6AA battery pack is required. An original Apple AC adapter can also be used, however pass through power is not provided to the iOs device. A genuine Apple Lightning-USB adapter is also required for operation with an iPhone/iPad.

Supported Operating Systems

Windows: Windows 11 (version 22H2), Windows 11 (version 22H1), Windows 10 (version 22H2), Windows 10 (November 2021, version 21H2), Windows 10 (May 2021, version 21H1), Windows 8.1, Windows 7.
Mac: macOS Ventura (13.0), macOS Monterey (12.0), macOS Big Sur (11.0), macOS Catalina (10.15), macOS Mojave (10.14), macOS High Sierra (10.13).
iOS: iOS 15/iPadOS 15, iOS 14/iPadOS 14, iOS 13/iPadOS 13, iOS 12.

Optional accessories: BP-6AA battery pack.

Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz. Quantization bit depth: 24 bits. Mic input impedance: 2.4 kohm. Nominal input level: -65 dBu, gain knob at max. Nominal input level: -8dBu, gain knob at min. Maximum input level: +10 dBu. Maximum gain: 58 dB. Headphones output: 6.3mm stereo jack. Maximum output power: 18 mW + 18 mW or higher, THD+N 0.1% or less, 32 ohm. USB: 4-pin USB C-type. Transfer rate: USB 2.0 Hi-speed, 480 Mbits/s. Mic input frequency response: 20 Hz – 20 kHz, +0 dB/–0.4 dB (JEITA), 44.1/48 kHz; 20 Hz – 40 kHz, +0 dB/–0.4 dB (JEITA), 88.2/96 kHz. Line input/output frequency response: 20 Hz – 20 kHz, +0.2 dB/–0,1 dB (JEITA), 44.1/48 kHz; 20 Hz – 40 kHz, +0.2 dB/–0.4 dB (JEITA), 88.2/96 kHz. Power supply: USB bus power. Power consumption: 1.8 W. Dimensions (WxHxD): 146 x 55 x 120mm. Weight: 623g.

US-2x2HR

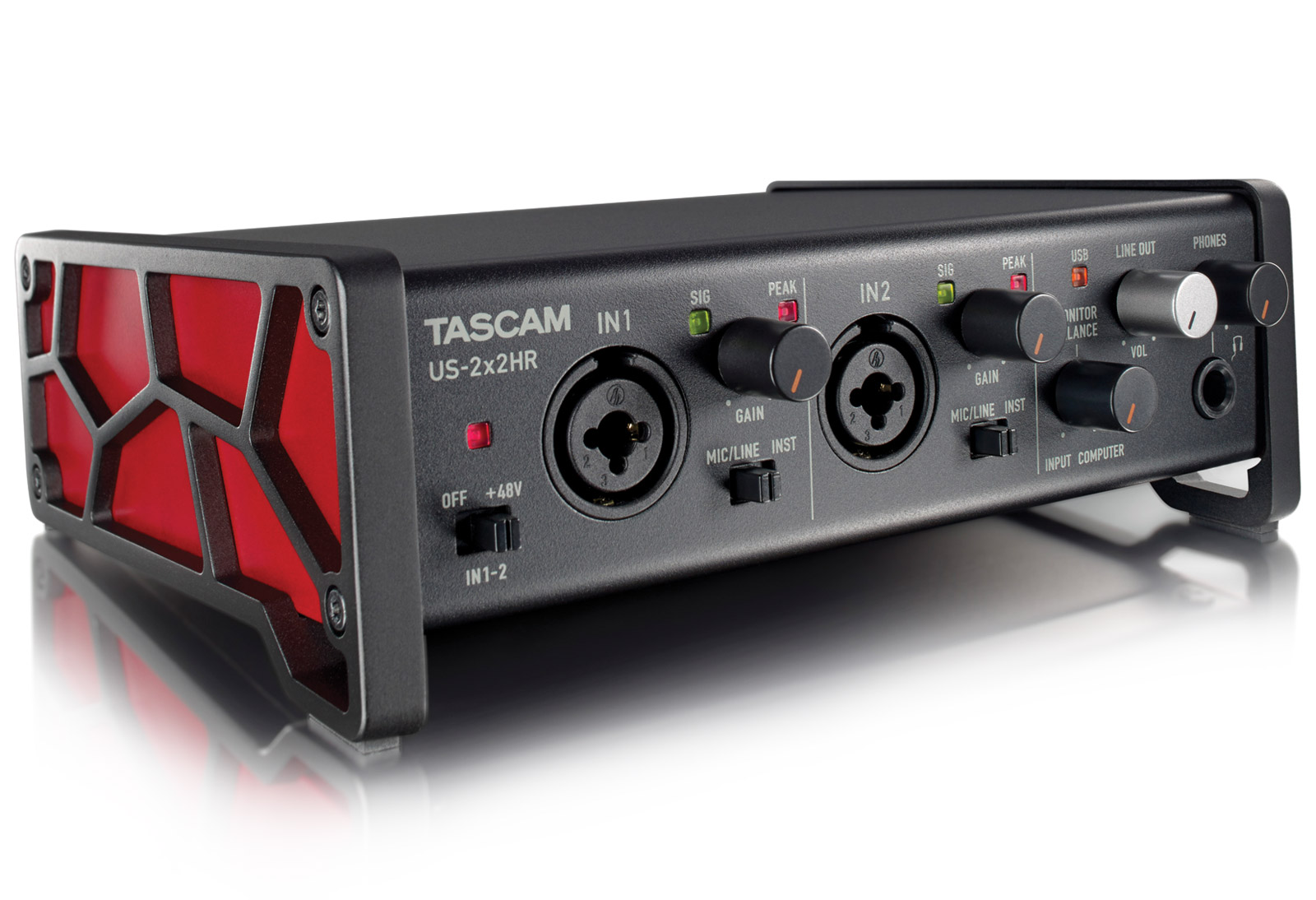

US-2x2HR

This audio interface shares the functionality of the Tascam US-2x1HR, however US-2x2HR features two 6.3mm jack/3-pin XLR combination mic/line inputs. The two outputs are by way of balanced 6.3mm jack connectors.

Supported Operating Systems

Optional accessories: BP-6AA battery pack.

Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz. Quantization bit depth: 24 bits. Mic input impedance: 2.2 kohm. Rated input level: -7 dBu. Maximum input level: +9 dBu. Gain range: 56 dB. Headphones output: 6.3mm stereo jack. Maximum output power: 18 mW + 18 mW or higher, THD+N 0.1% or less, 32 ohm. USB: 4-pin USB C-type. Transfer rate: USB 2.0 Hi-speed, 480 Mbits/s. Mic input frequency response: 20 Hz – 20 kHz, +0 dB/–0.4 dB (JEITA), 44.1/48 kHz; 20 Hz – 40 kHz, +0 dB/–0.4 dB (JEITA), 88.2/96 kHz. Line input/output frequency response: 20 Hz – 20 kHz, +0.2 dB/–0,1 dB (JEITA), 44.1/48 kHz; 20 Hz – 40 kHz, +0.2 dB/–0.4 dB (JEITA), 88.2/96 kHz. Power supply: USB bus power. Power consumption: 1.75 W. Dimensions (WxHxD): 186 × 65 × 160mm. Weight: 1.1 kg.

US-4X4HR

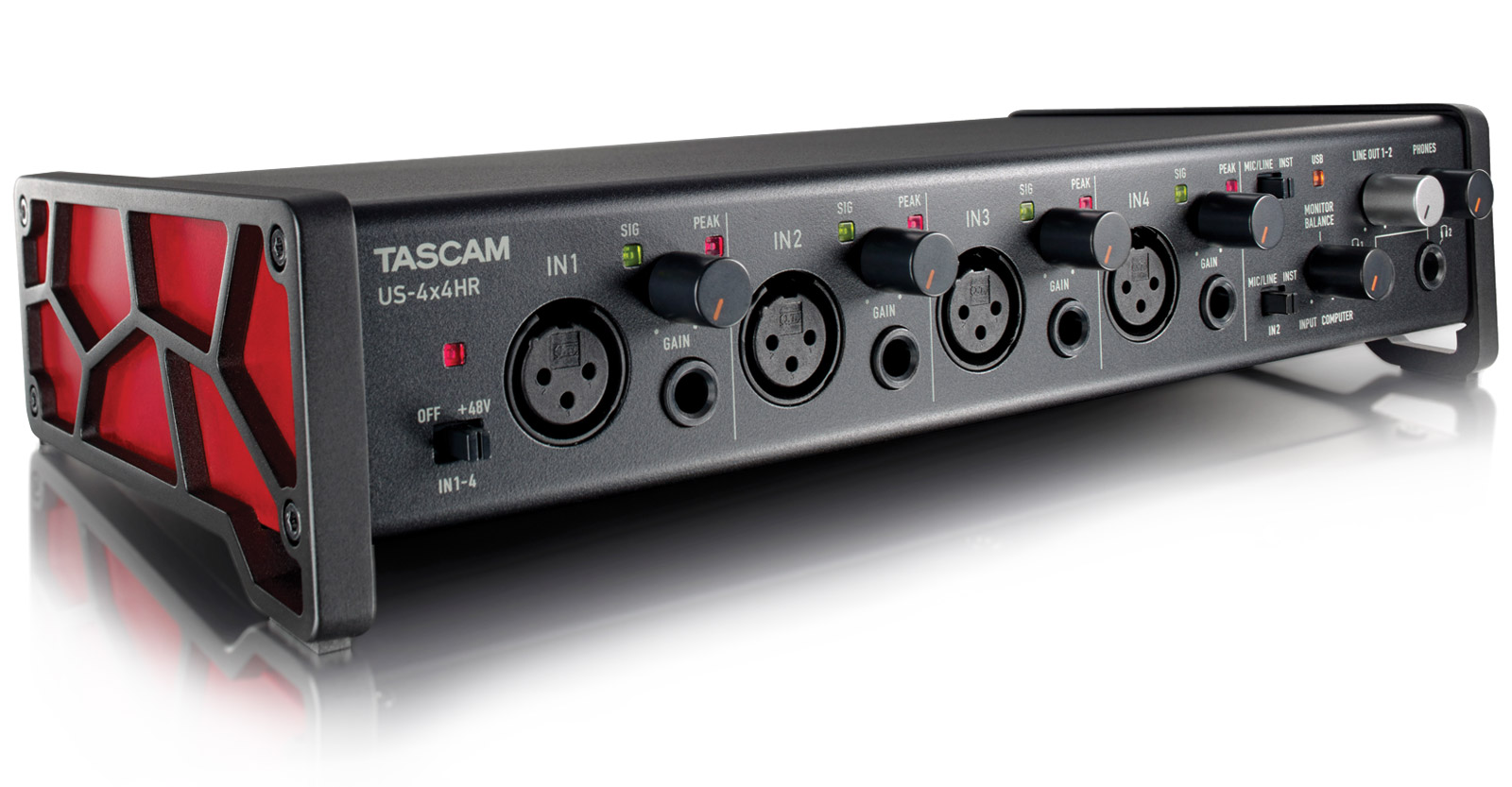

US-4x4HR

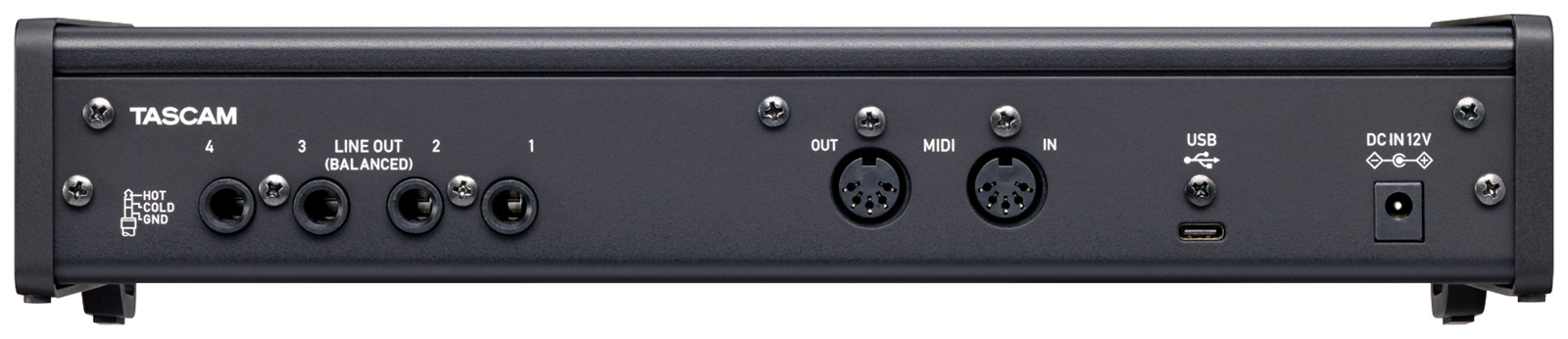

This audio interface shares the functionality of the Tascam US-2x1HR, however US-4x4HR features four input channels, each with a single balanced 3-pin XLR microphone input and single 6.3mm jack line level input. US-4x4HR has four output channels, each by way of 6.3mm jack connection. There are also two headphone connections for dual monitoring of the same output.

Tascam US-4x4HR requires either USB bus power from the connected computer, or optional PS-P1220E, 12V DC power supply when used with an iOS device.

Supported Operating Systems

Optional accessories: BP-6AA battery pack.

Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz. Quantization bit depth: 24 bits. Mic input impedance: 2.2 kohm. Rated input level: -7 dBu. Maximum input level: +9 dBu. Gain range: 56 dB. Headphones output: 6.3mm stereo jack. Maximum output power: 18 mW + 18 mW or higher, THD+N 0.1% or less, 32 ohm. USB: 4-pin USB C-type. Transfer rate: USB 2.0 Hi-speed, 480 Mbits/s. Mic input frequency response: 20 Hz – 20 kHz, +0 dB/–0.4 dB (JEITA), 44.1/48 kHz; 20 Hz – 40 kHz, +0 dB/–0.4 dB (JEITA), 88.2/96 kHz. Line input/output frequency response: 20 Hz – 20 kHz, +0.2 dB/–0,1 dB (JEITA), 44.1/48 kHz; 20 Hz – 40 kHz, +0.2 dB/–0.4 dB (JEITA), 88.2/96 kHz. Power supply: USB bus power. Power consumption: 2.25 W. Dimensions (WxHxD): 296 x 65 x 160mm. Weight: 1.6 kg.
