Ready-made connection boxes from TUK offering a range of low-profile to high-density termination solutions.
200 and 300 series
Manufactured from ABS and supplied with all the cable-anchoring and cable entry requirements catered for. Larger boxes can be mounted together. Knock-out sections in the lids permit concealed interconnection of jumpers whilst retaining a neat appearance.

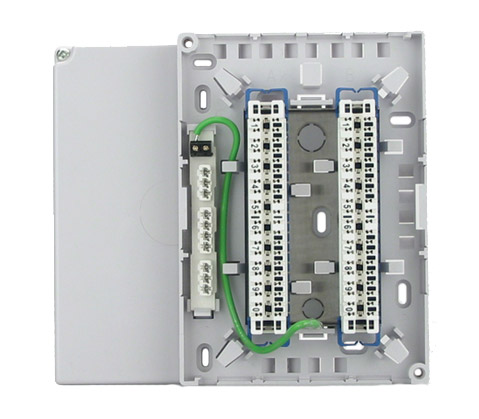

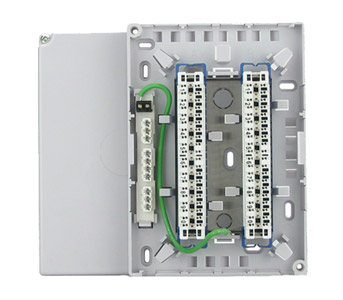

A low-profile connection box containing two 237 disconnection modules. Ideal for termination of cable in studios, intercoms, star points etc. Dimensions: 120 x 170 x 55mm.

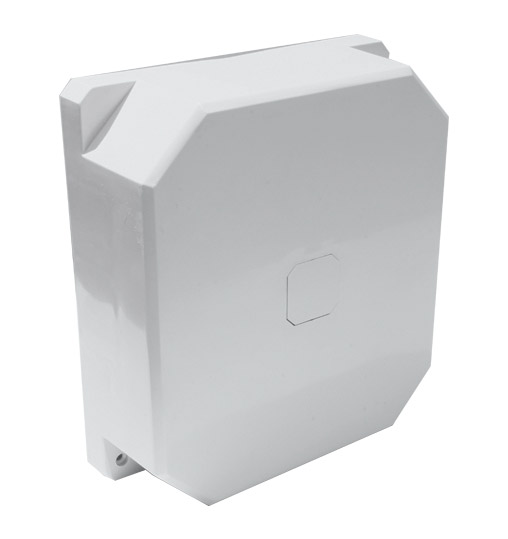

Slightly larger connection box to accept three ABS/237 size modules (not supplied). Dimensions: 159 x 143 x 50mm.

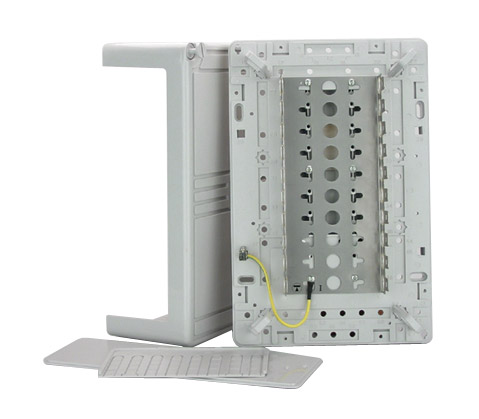

Larger termination case to accept five ABS/237 size modules (not supplied). Supplied with 4 jumper rings as well as removable side and rear panels to allow side by side mounting. Dimensions: 90 x 160 x 210mm.
Large capacity termination case to accept ten ABS/237 size modules (not supplied). Supplied with 4 jumper rings as well as removable side and rear panels to allow side by side mounting. Suitable for termination of cables and equipment tails on walls, consoles or in areas where 19" rack space is not appropriate. Dimensions: 121 x 320 x 210mm.
500 series

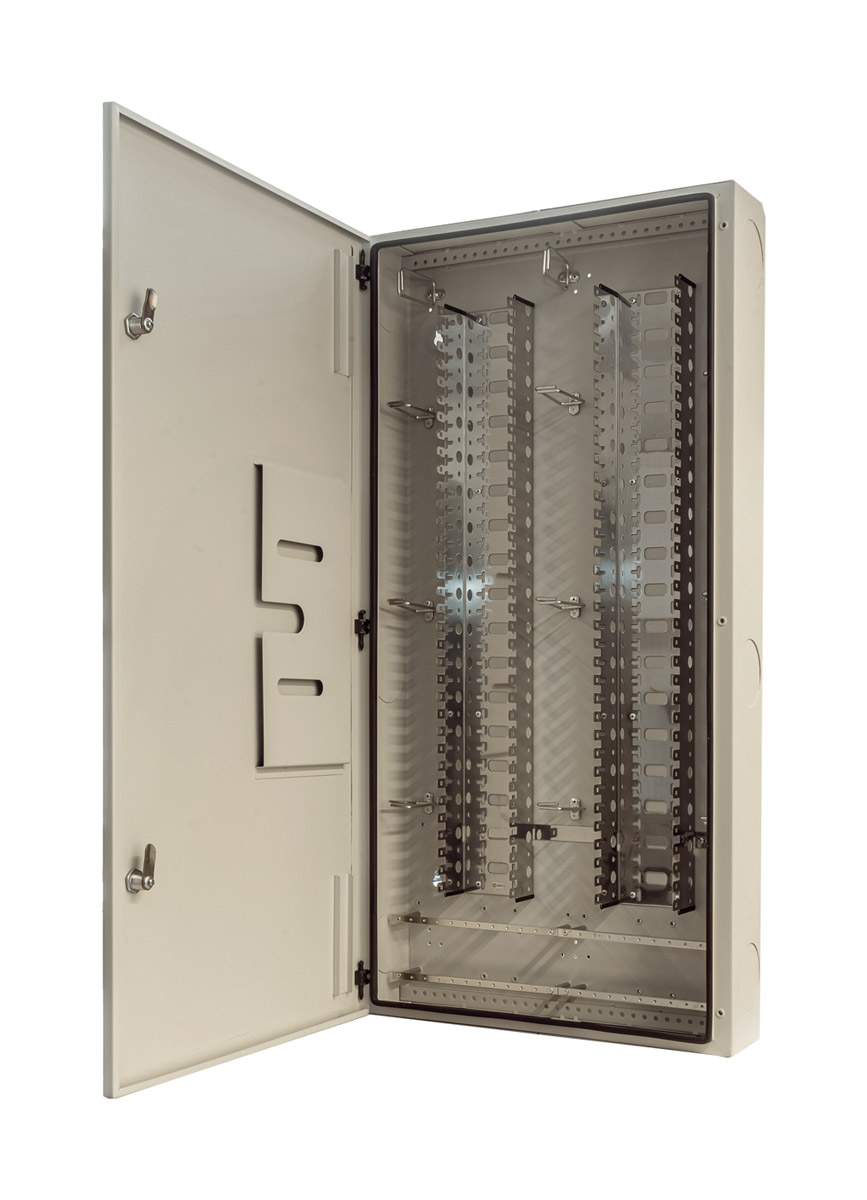

Manufactured from stainless steel. Designed to maintain the industry standard footprint supporting 10 pair disconnection modules. The doors can be removed entirely using quick release hinges and they can be reversed for left to right opening applications. All units come supplied with jumper rings, a fixed earth point and flexible access plates for top and bottom cable entry.
High-density connection box to accept thirty four ABS/237 size modules (not supplied). Dimensions: 300 x 1000 x 140mm. Weight: 11kg. Number of jumper rings: 8. Knock-outs: 6.
Higher density connection box to accept sixty eight ABS/237 size modules (not supplied). Dimensions: 500 x 1000 x 140mm. Weight: 16kg. Number of jumper rings: 12. Knock-outs: 6.
For modules see TUK CONNECT+ CONNECTION SYSTEM - Modules
For mounting hardware see TUK CONNECT+ CONNECTION SYSTEM - Mounting hardware
For accessories see TUK CONNECT+ CONNECTION SYSTEM - Accessories
